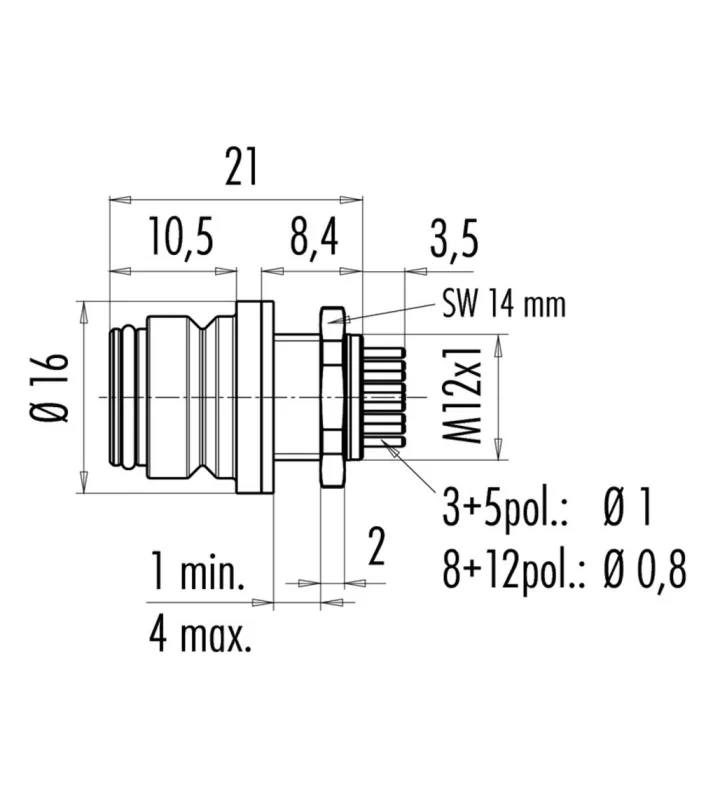

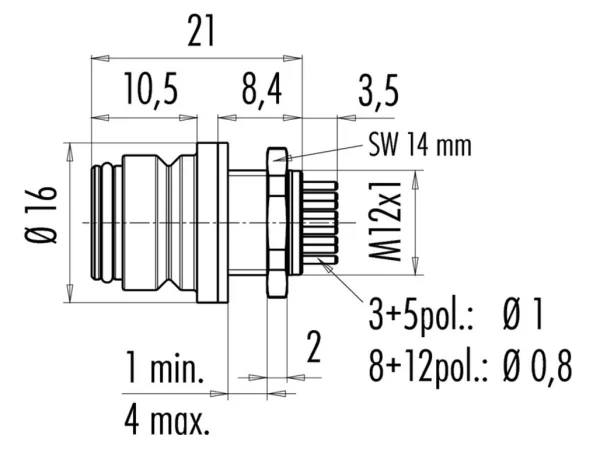

Female panel mount connector
Color code black
99 9128 00 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 720 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |
| Mating cycles | >500 |
| Connector Diameter | 16 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|
| 99 9108 00 03 | >5 - ≤10 A | 3 | 250 V | 2500 V | >200 - ≤400 V | 0.75 mm² |
| 99 9116 00 05 | ≤5 A | 5 | 125 V | 1500 V | ≤200 V | 0.75 mm² |
| 99 9136 00 12 | ≤5 A | 12 | 60 V | 800 V | ≤200 V | 0.25 mm² |
