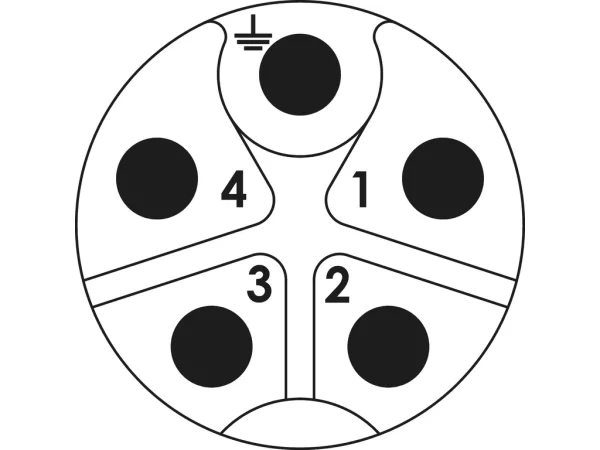

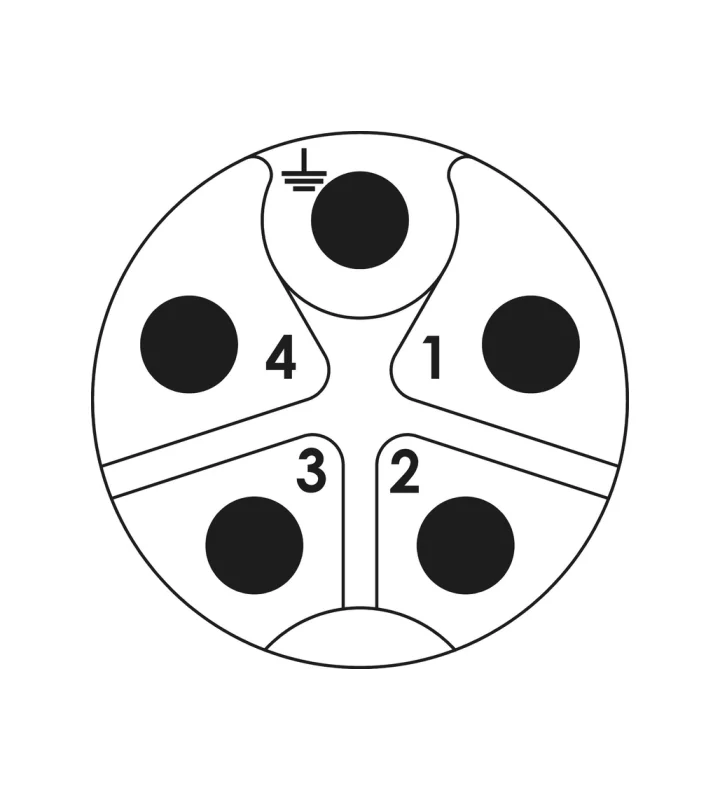

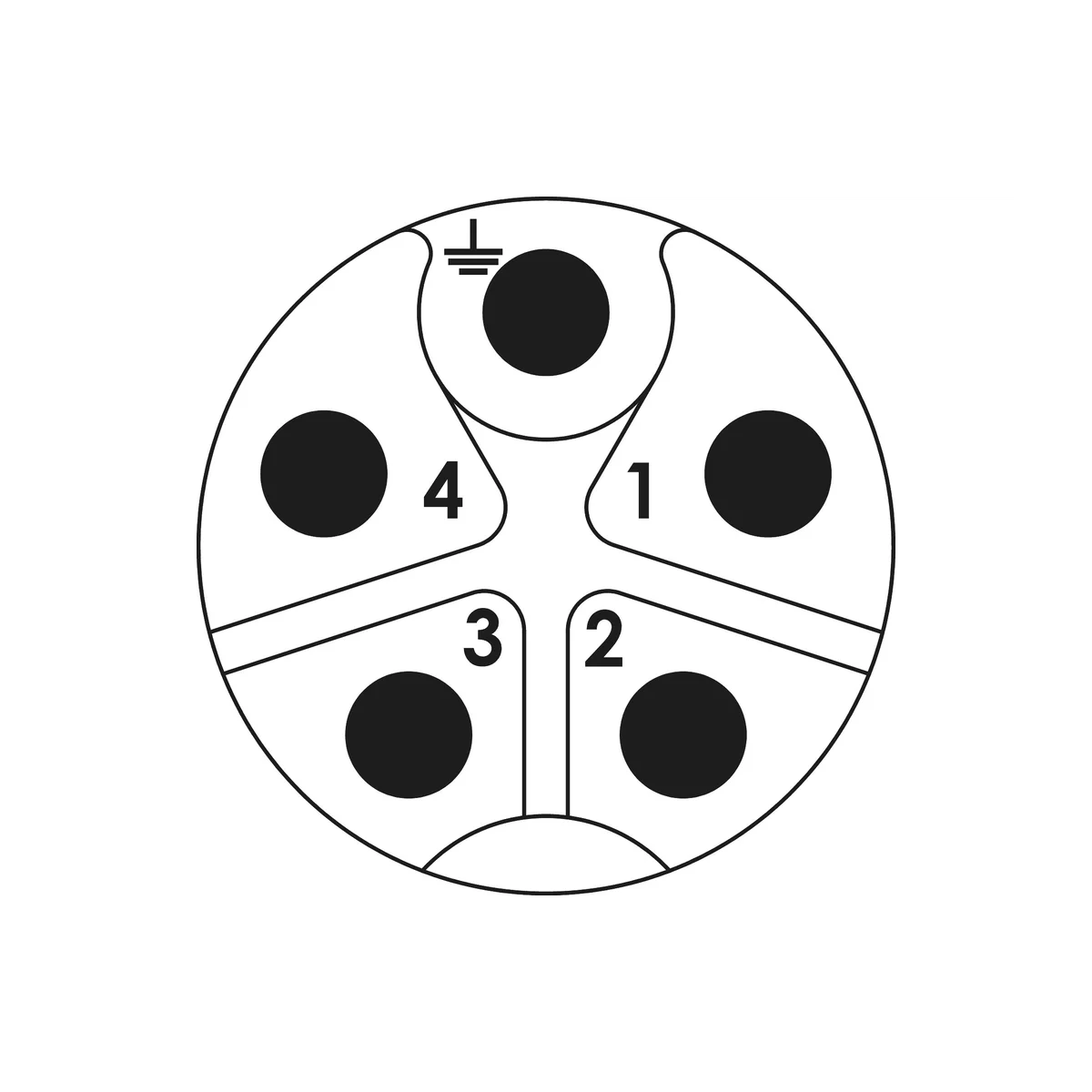

Crimp insert, 4+PE
Sockets, K-coding
A712-7.K03.941.102
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M12 Power |
|---|---|
| Number of contacts | 5 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Wire section | 0,75-2,5 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 4xsocket & 1xpin |
| Contact diameter | 1.5 mm |
| Remark | Socket inserts mountable with female thread housings only |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 630 V~ |
|---|---|
| Test voltage (a) | 3310 V~ |
| Nominal current (a) | 16 A |
| Insulation resistance | > 10² |
| Max. contact resistance (a) | <3 mΩ |
Material
| Material | Brass/Die Cast |
|---|---|
| Plating | Nickel plated |
