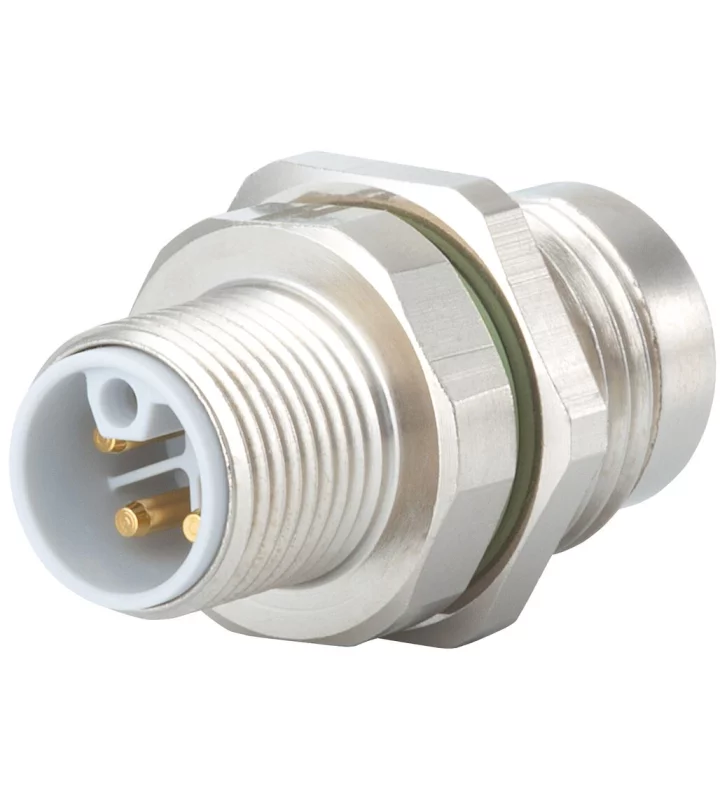

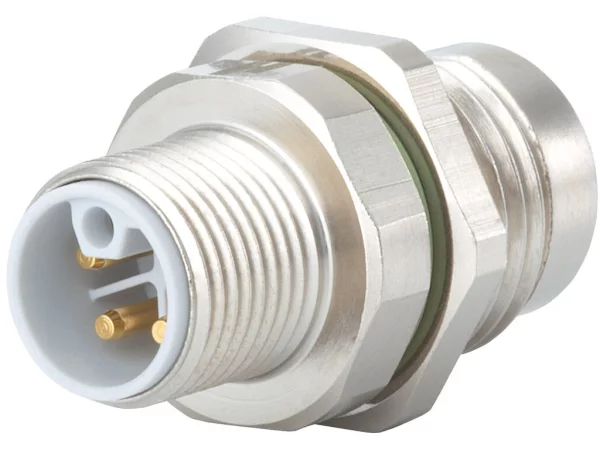

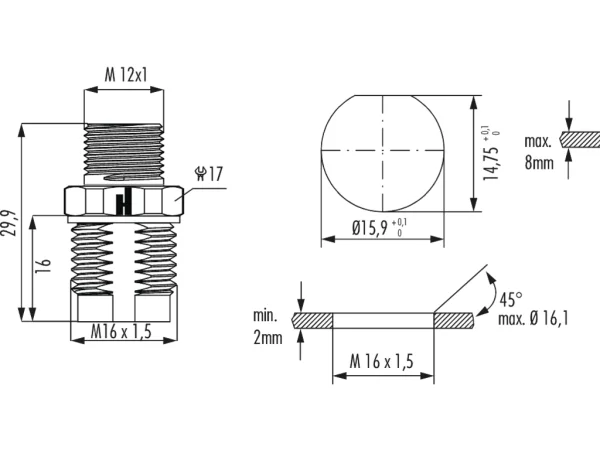

Panel connector male thread, single hole front mounted
K,L Coding
A712-7.K42.000.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Male |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Thread | M16 |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Housing thread | Upper temperature | Thread |
|---|---|---|---|
| A712-7.K42.100.000 | +125 °C | M20 |
