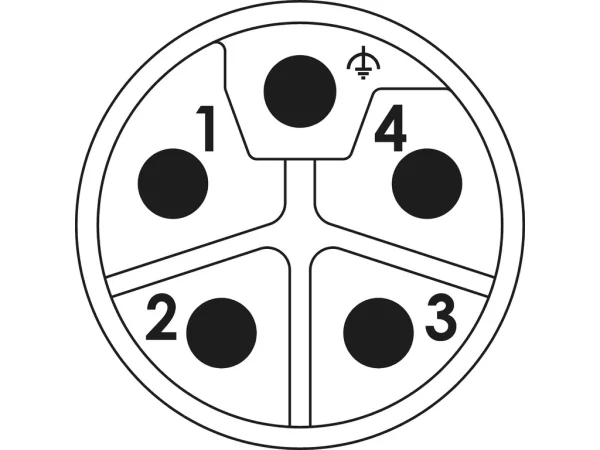

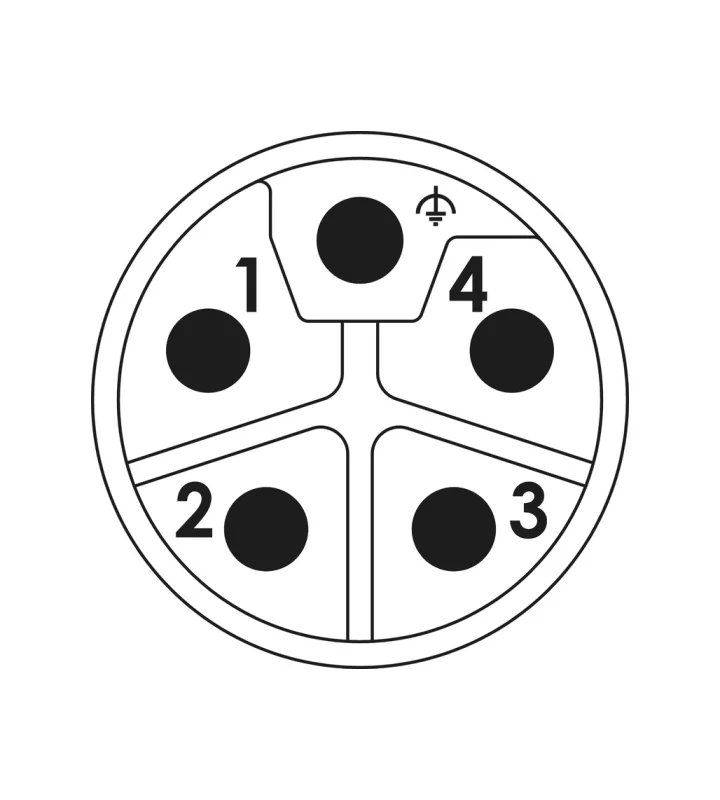

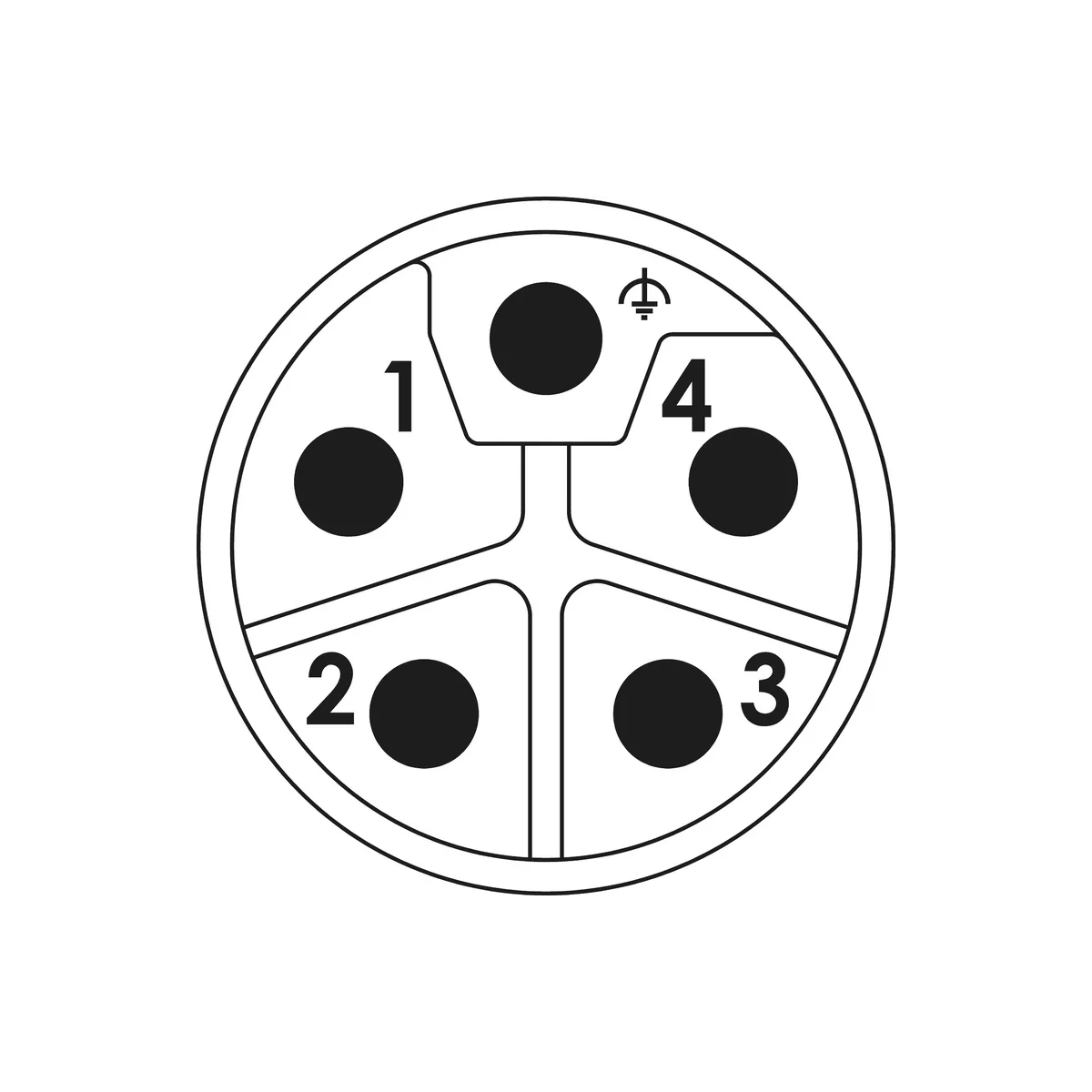

Crimp insert, 4+FE
Pins, L-coding
A712-7.L03.941.101
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M12 Power |
|---|---|
| Number of contacts | 5 |
| Gender | Male |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Wire section | 0,75-2,5 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 4xpins & 1xsocket |
| Contact diameter | 1.5 mm |
| Remark | Pin inserts mountable with male thread housings only |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 63 V~ |
|---|---|
| Test voltage (a) | 840 V~ |
| Nominal current (a) | 16 A |
| Insulation resistance | > 10² |
| Max. contact resistance (a) | <3 mΩ |
Material
| Material | Brass/Die Cast |
|---|---|
| Plating | Nickel plated |
