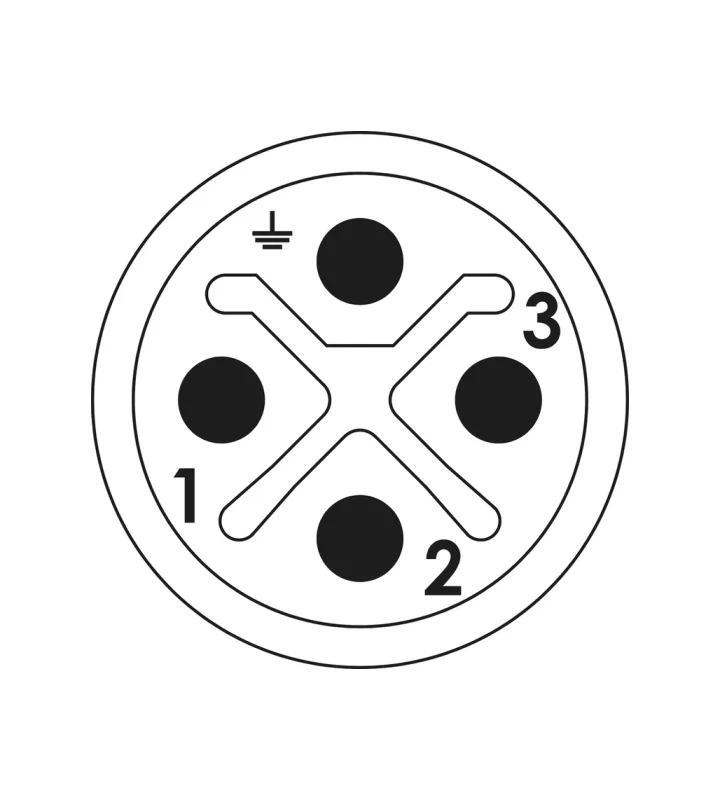

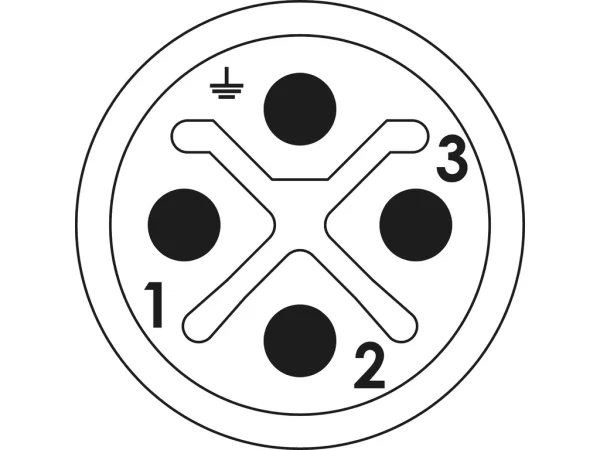

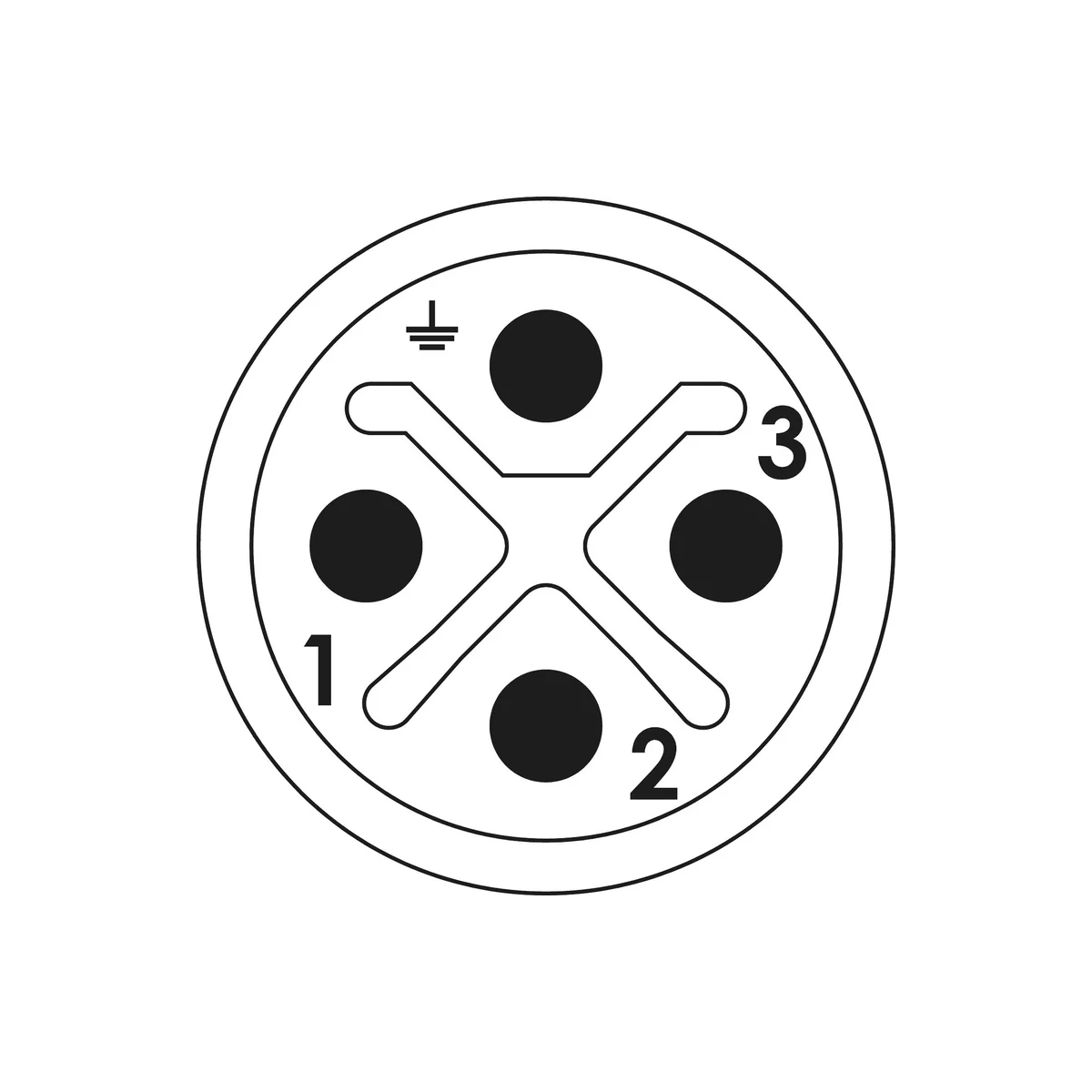

Crimp insert, 3+PE
Pins, S-coding
A712-7.S05.931.105
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M12 Power |
|---|---|
| Number of contacts | 4 |
| Gender | Male |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Wire section | 0,5-1,5 mm² |
| Terminal type | Screw |
| Included contacts | Screw |
| Contact diameter | 1.5 mm |
| Remark | Pin inserts mountable with male thread housings only |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 630 V~ |
|---|---|
| Test voltage (a) | 3310 V~ |
| Nominal current (a) | 12 A |
| Insulation resistance | > 10² |
| Max. contact resistance (a) | <3 mΩ |
Material
| Material | Brass/Die Cast |
|---|---|
| Plating | Nickel plated |
