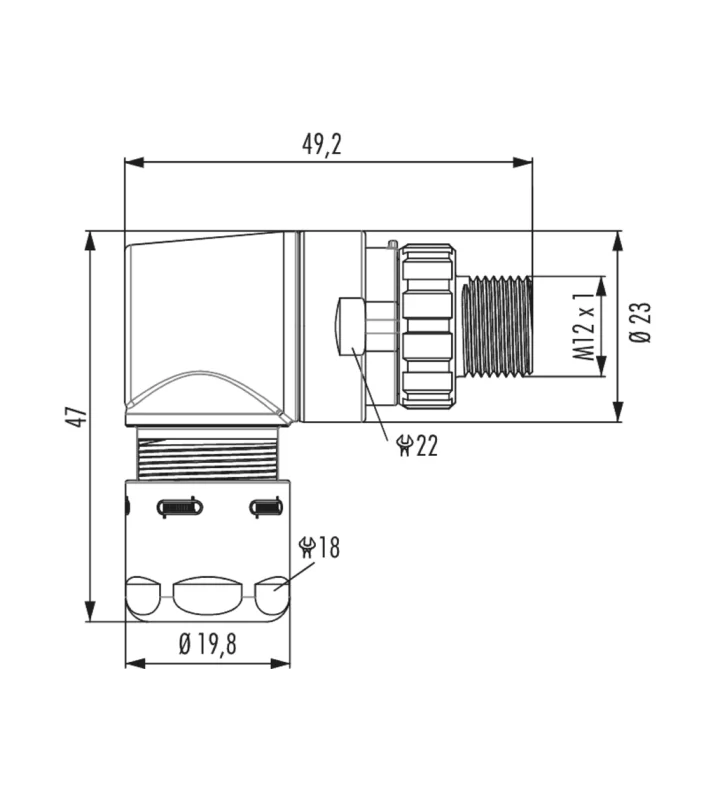

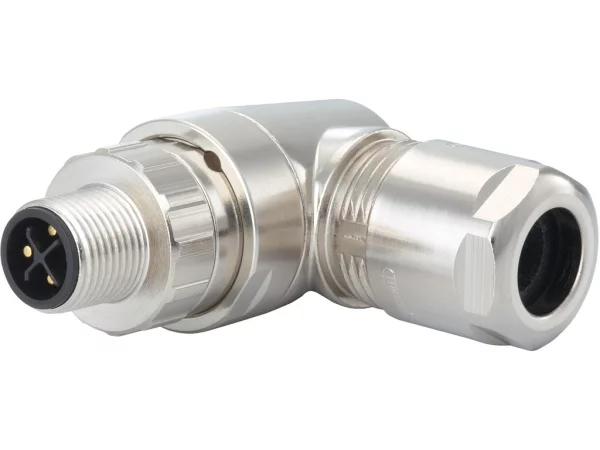

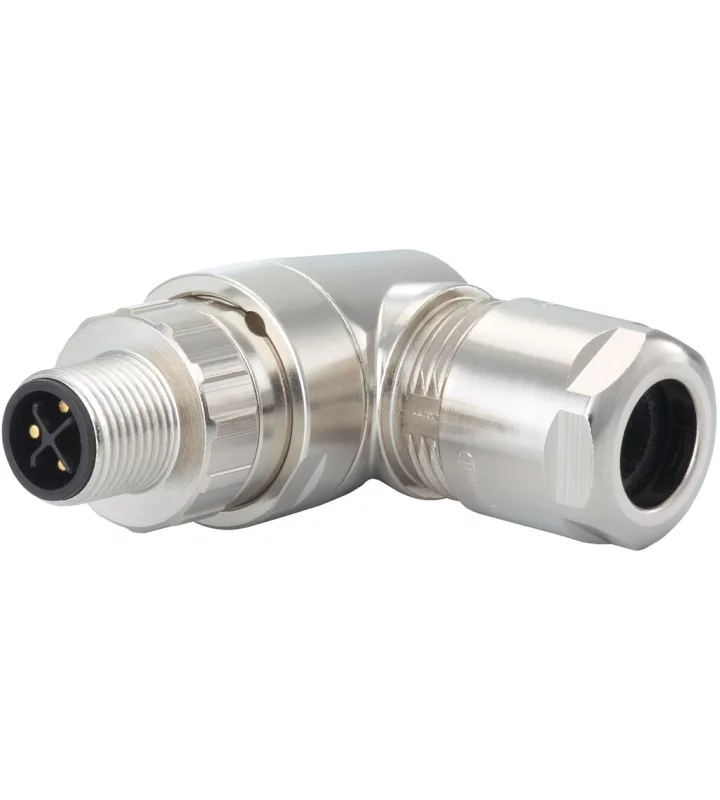

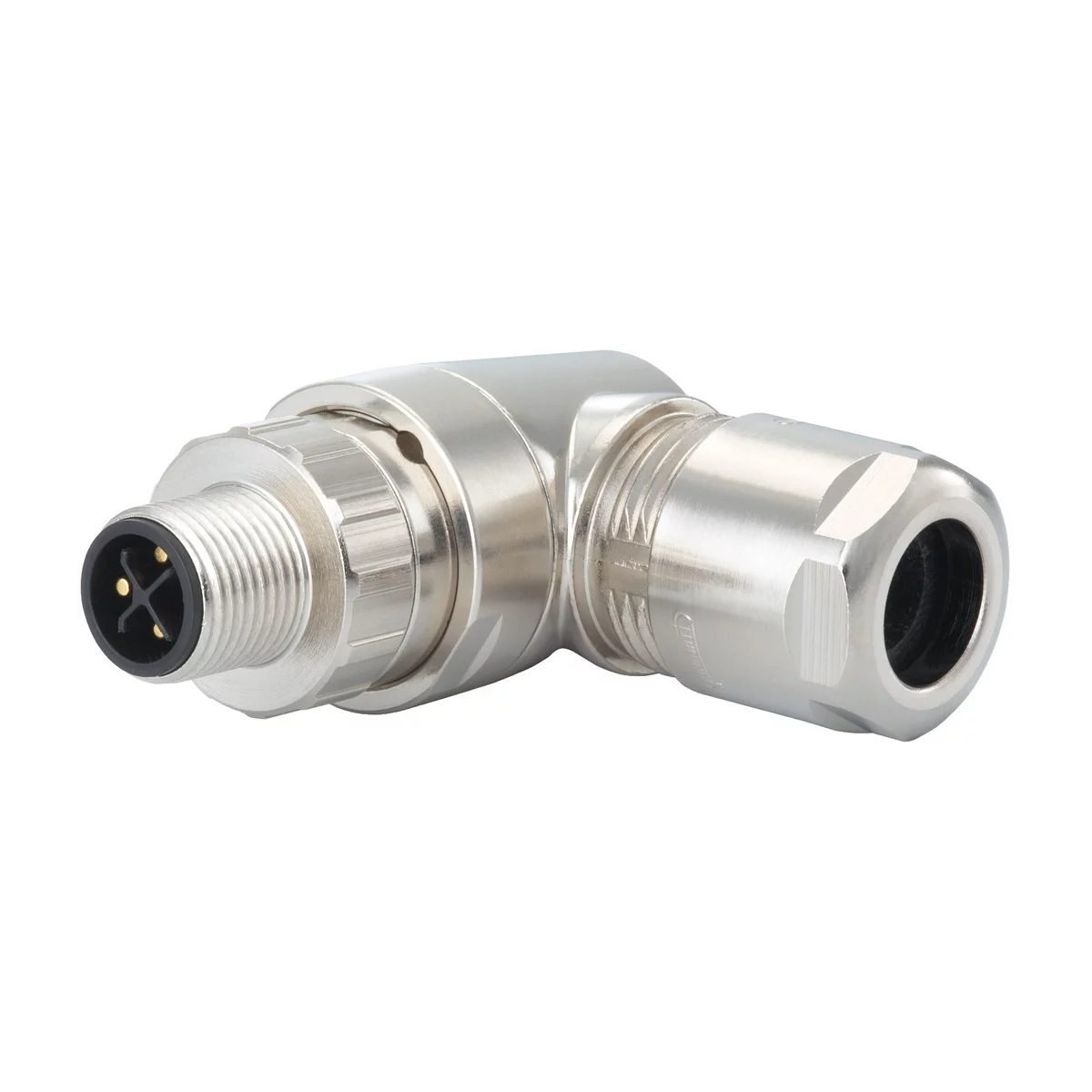

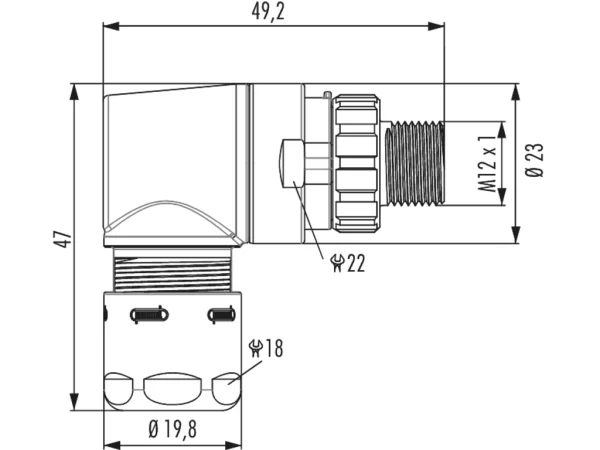

Right Angle Connector, Male Thread
S,T Coding
A712-7.S31.300.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M12 Power |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 19.7 mm |
| Upper temperature | 85 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >100 |
| Cable diameter | 3-6 mm |
Material
| Housing material | Brass/Die Cast |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| A712-7.S31.400.000 | 5-9 mm | 5-9 mm |
| A712-7.S31.500.000 | 8-11 mm | 8-11 mm |
