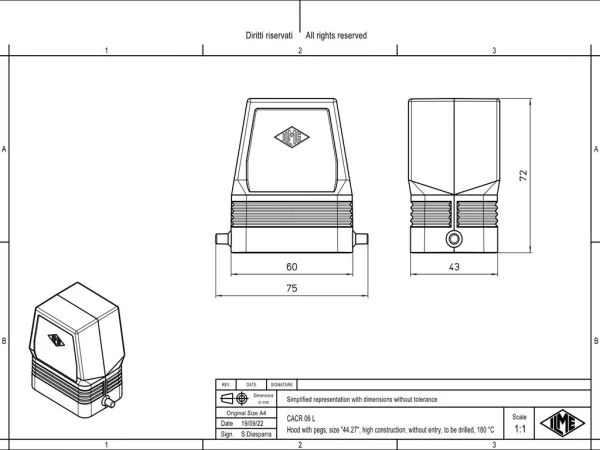

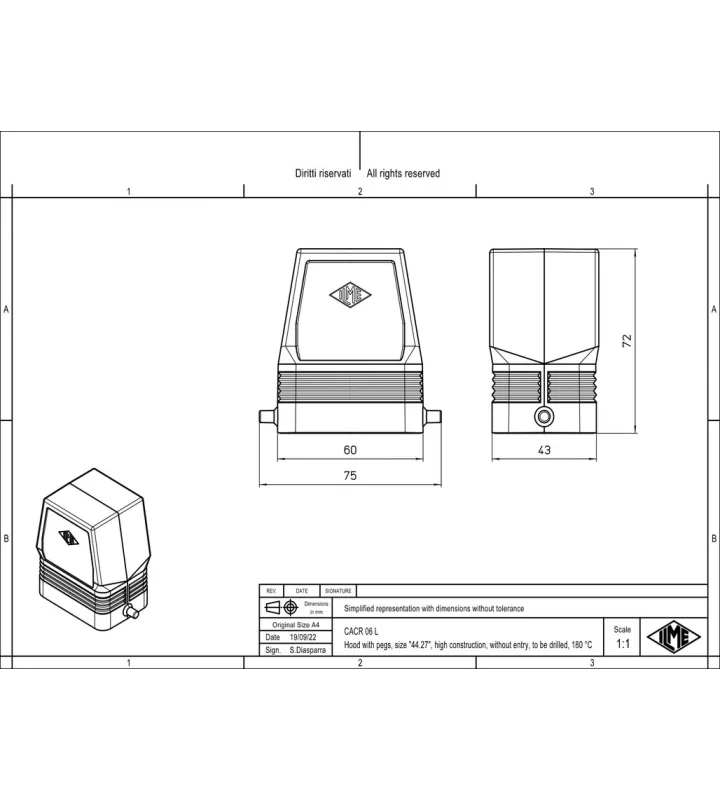

hood, size 44.27, 180 °C alu, 2 pegs
CACR 06 L
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 44.27 |
| Enclosure series | 180°C |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 180 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 180 °C |
| Cable entry type | without cable entries (to be drilled) |
| Position cable feed | Without cable entry |
| Height | 72 mm |
| Width | 43 mm |
| Length | 75 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|
