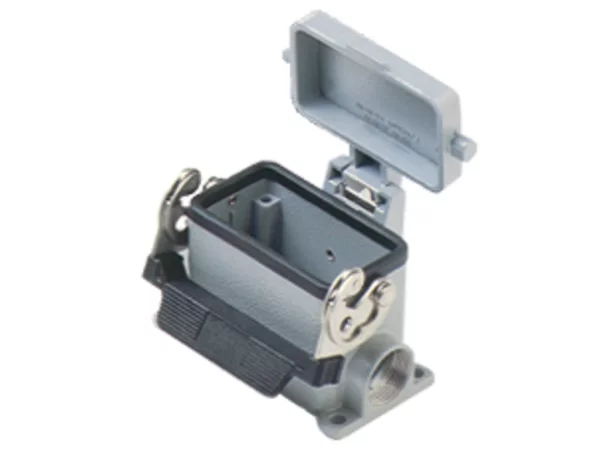

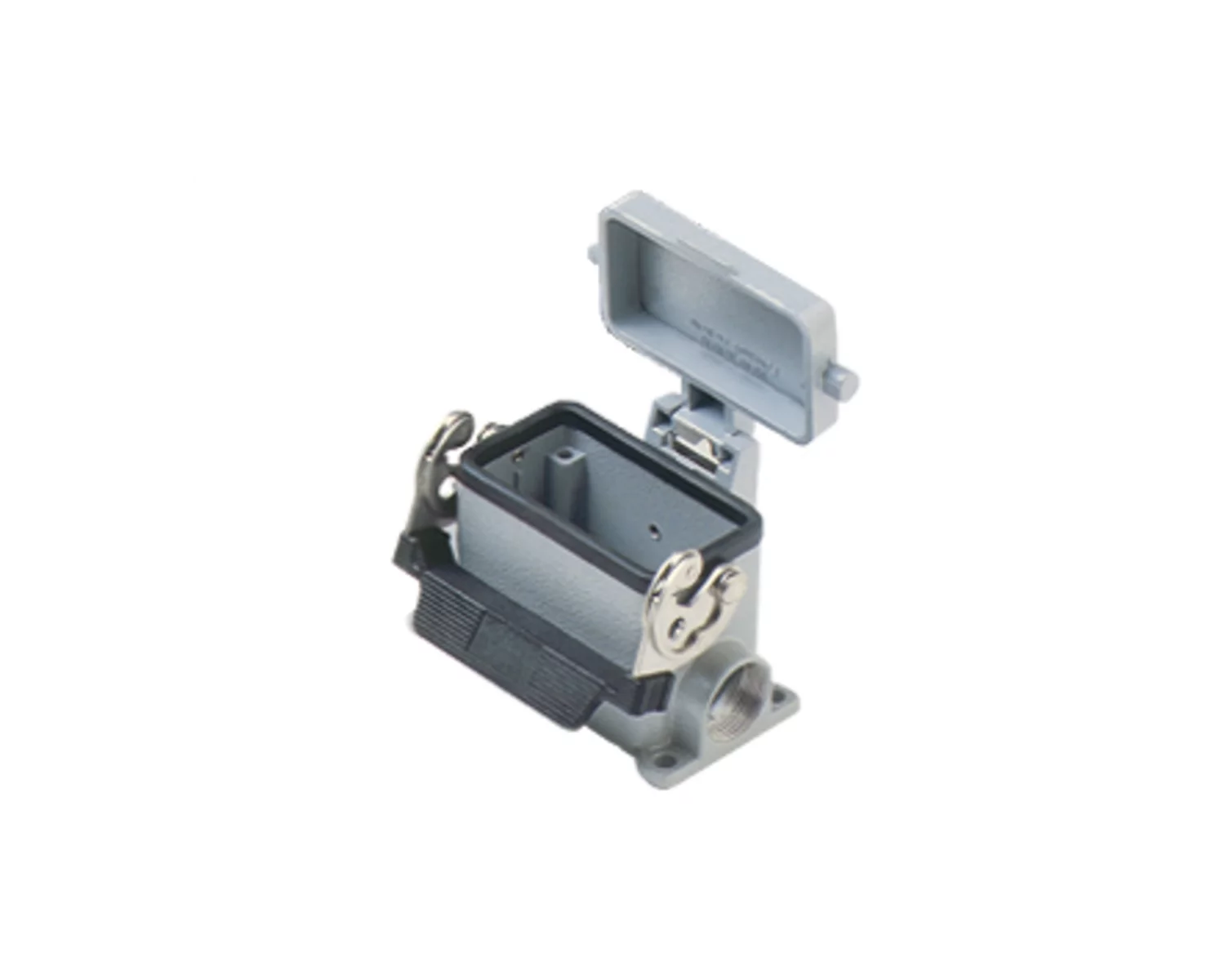

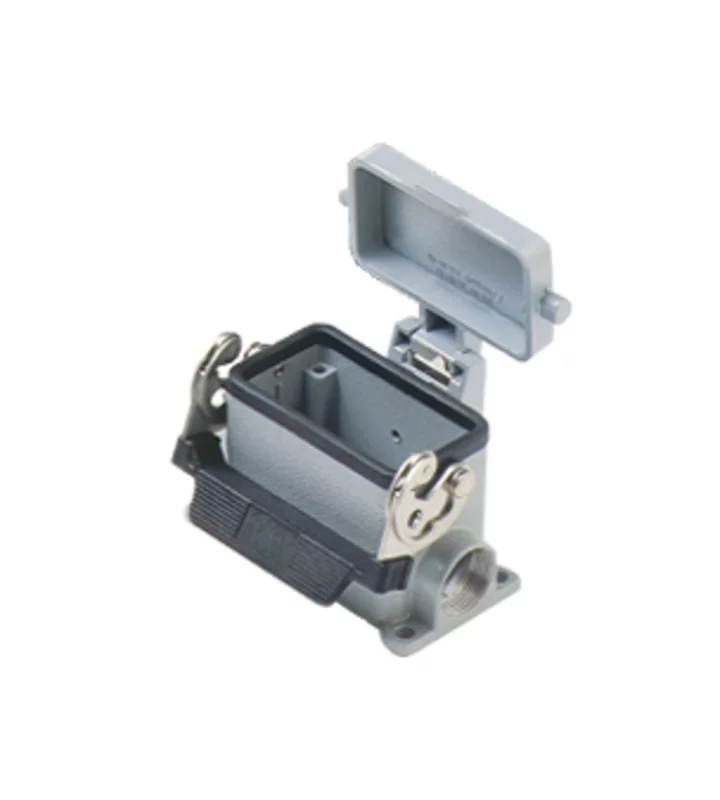

surface mounting housing, high, size 57.27, C-TYPE alu, 1 lever, 1xPG21 side, cov.

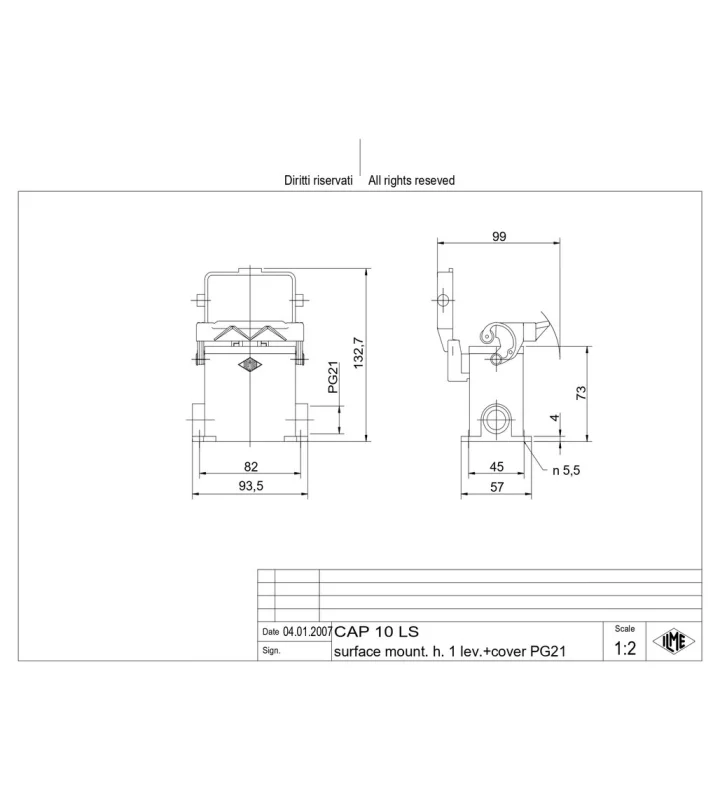

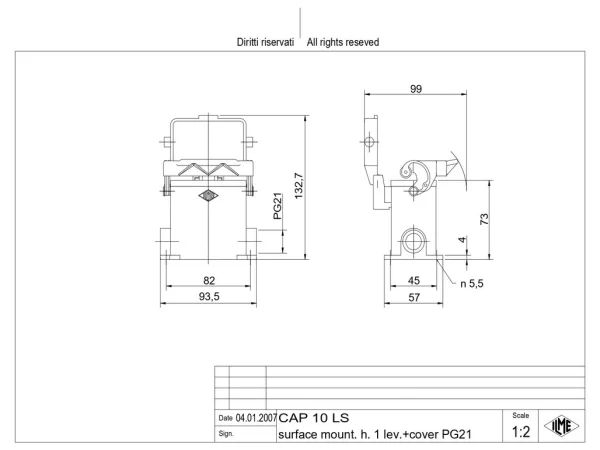

CAP 10 LS
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 57.27 |
| Enclosure series | C-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | Pg21 |
| Position cable feed | Side entry |
| Height | 74 mm |
| Width | 57 mm |
| Length | 93.5 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With hinged lid,With interlocking device |
