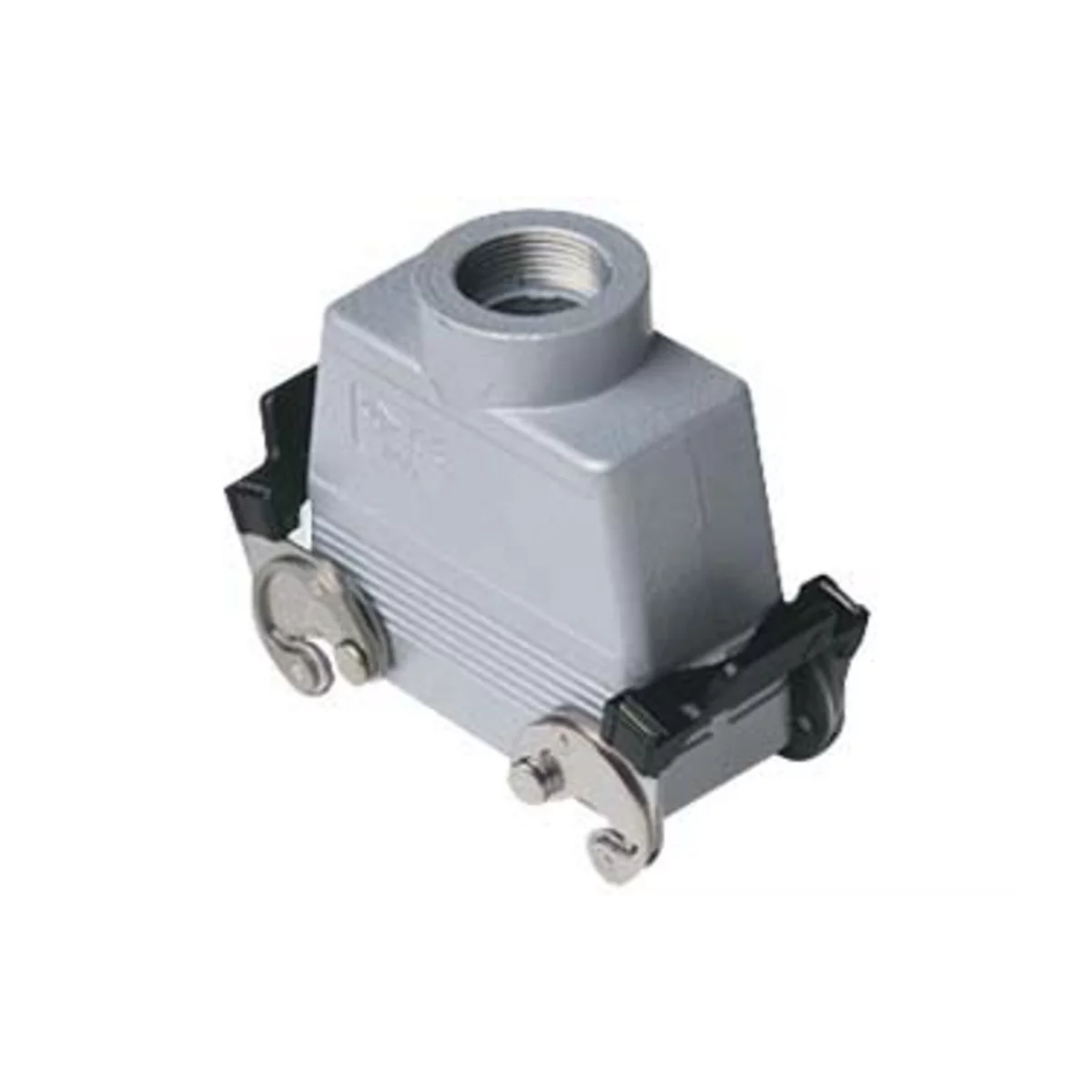

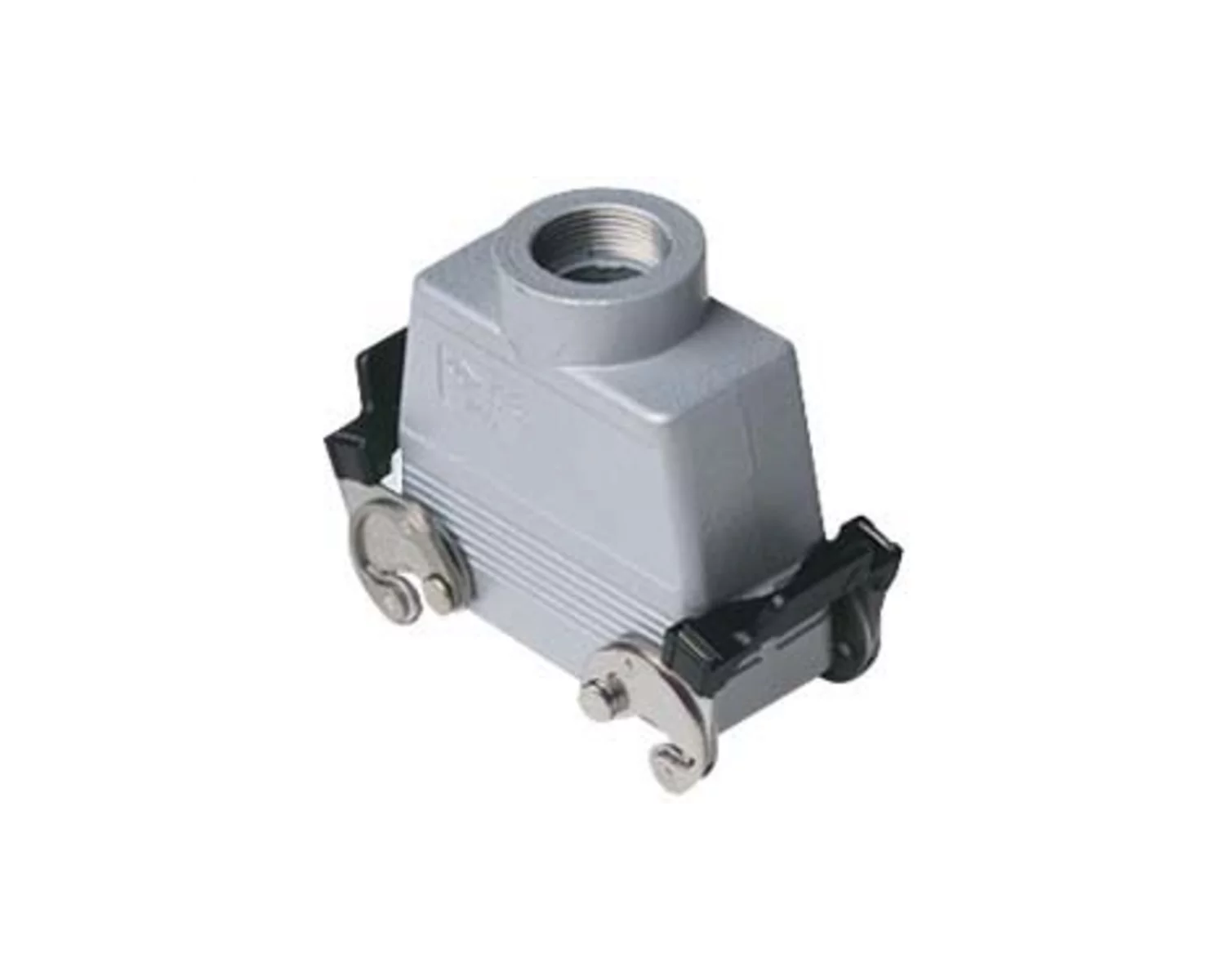

hood, high, size 77.27, C-TYPE alu, 2 levers, 1xPG29 top

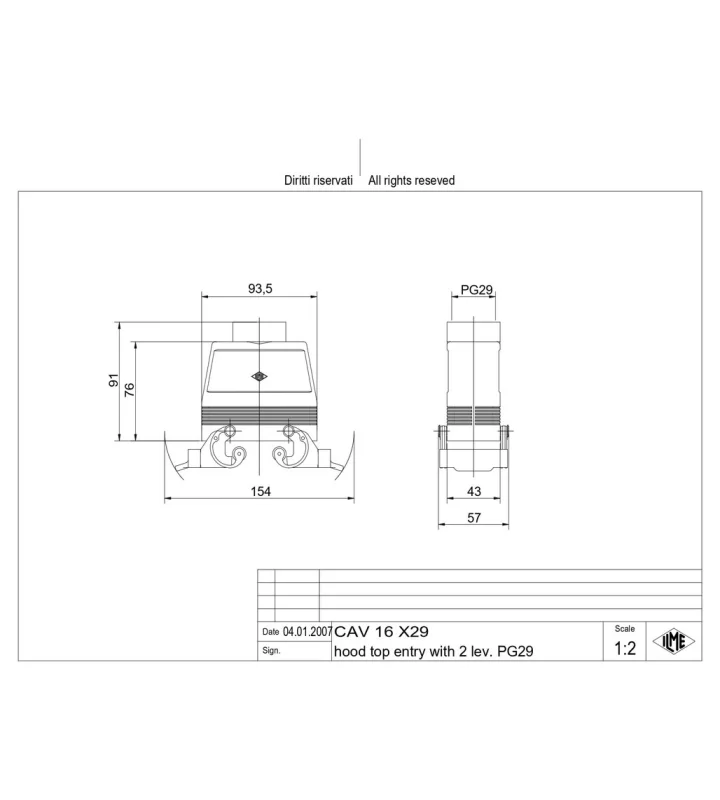

CAV 16 X29
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 77.27 |
| Enclosure series | C-TYPE |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | Pg29 |
| Position cable feed | Top entry |
| Height | 91 mm |
| Width | 59 mm |
| Length | 93.5 mm |
| Remark | May be combined with enclosures: CHI 16 CS,CHI 16 CP,CHI 16 C,CHP 16 CS,CHP 16 CP,CHP 16 C,CAP 16 CS,CAP 16 CP,CAP 16 C,MHP 16 CS,MHP 16 CP,MAP 16 CS,MAP 16 CP |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
