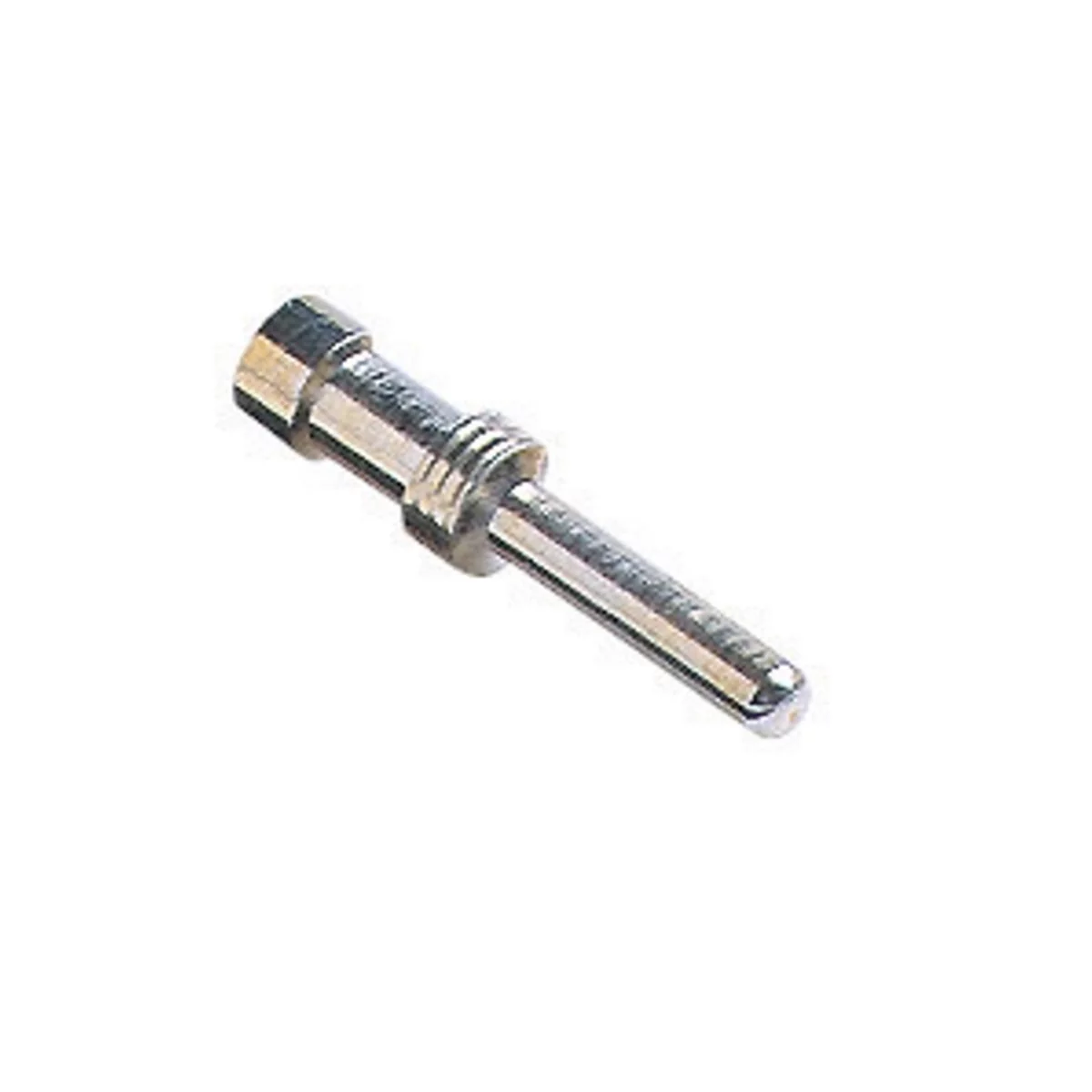

male contact, 1,0mm², silver, crimp, 16A, series CC, advanced
CC 1.0 AN
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 1 mm² |
| Max. Cross section | 1 mm² |
| AWG size | 18 |
| Identification | one groove |
| Diameter male contact | 2.5 mm |
| Wire strip length | 7.5 mm |
Electrical parameters
| Max. rated current | 16 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Silver |
