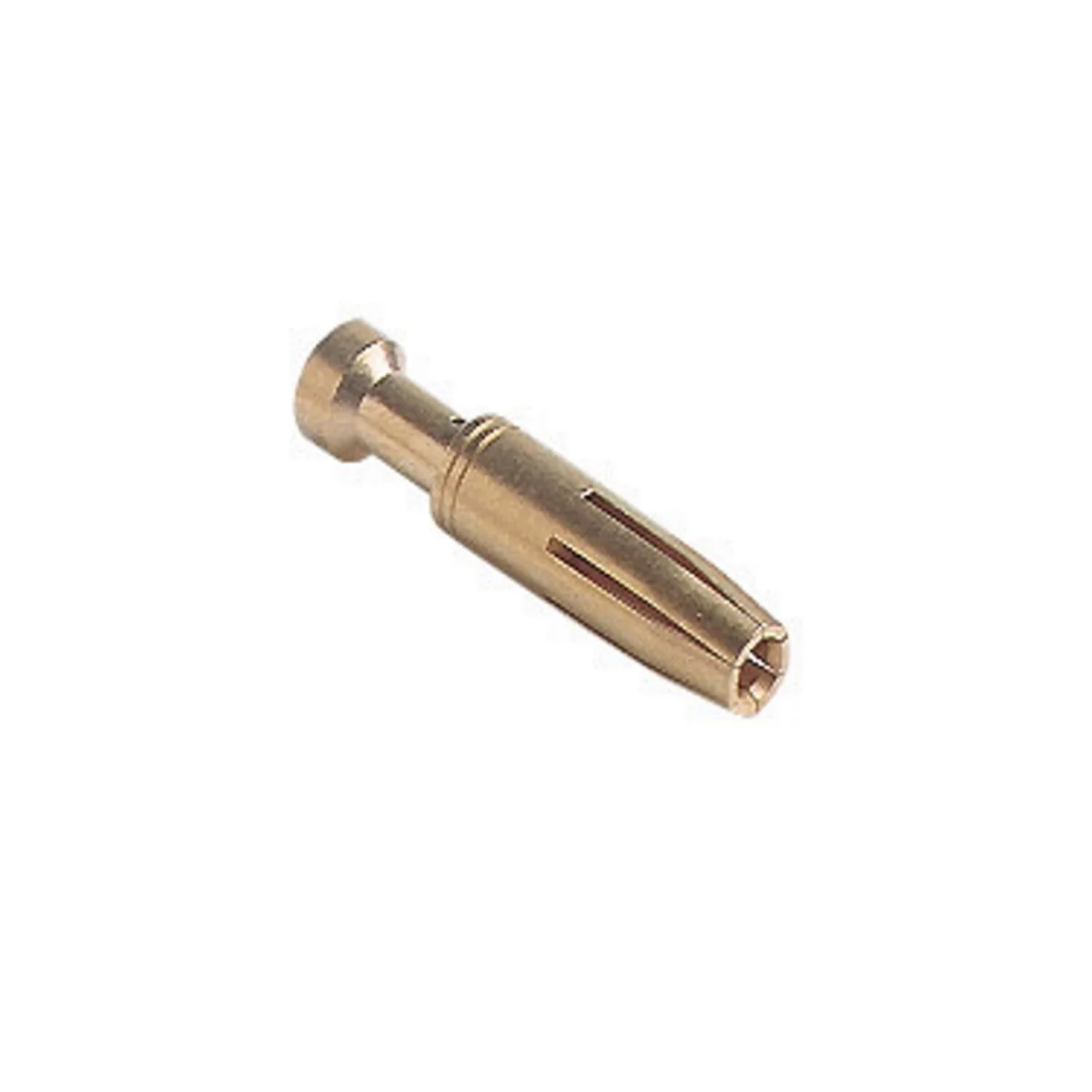

female contact, 0,75mm², gold, crimp, 16A, series CC
CCFD 0.7
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Female |
| Min. Cross section | 0.75 mm² |
| Max. Cross section | 0.75 mm² |
| AWG size | 18 |
| Identification | one groove (back side) |

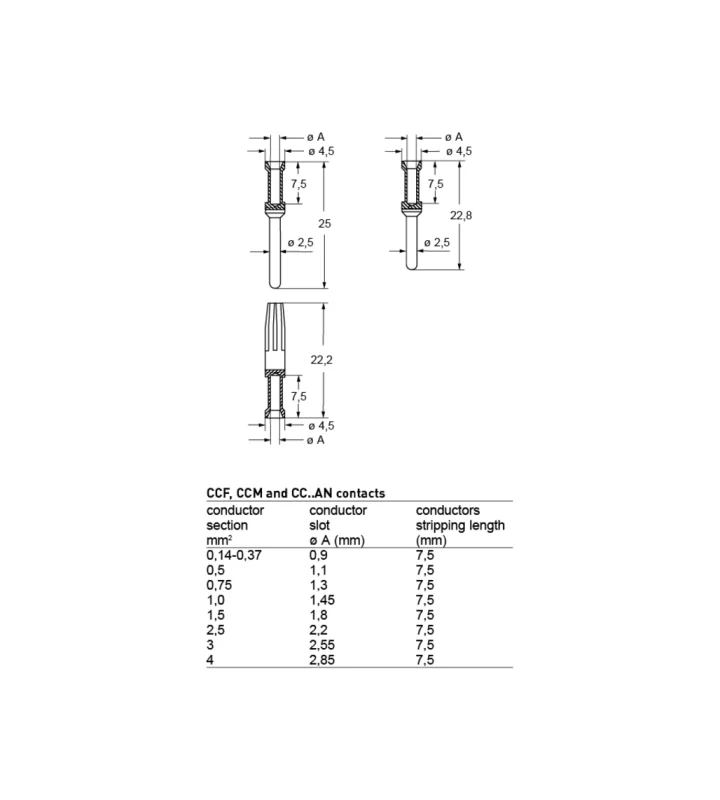

| Diameter male contact | 2.5 mm |
| Wire strip length | 7.5 mm |
Electrical parameters
| Max. rated current | 16 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
