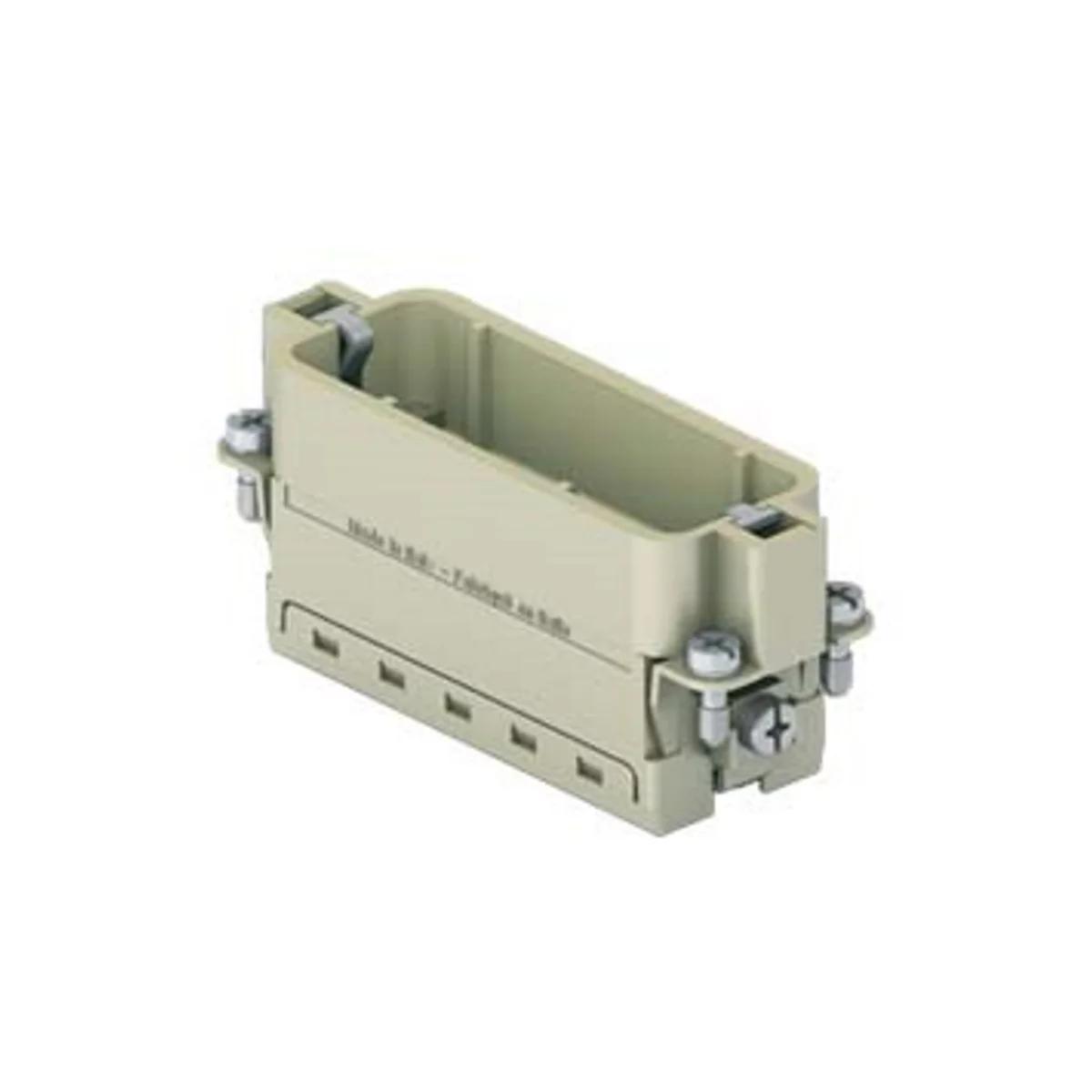

male insert, 16p+PE, crimp, 16A, 250V, for size 66.40 no.17-32
CDCM 16 N
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CDC |
| Number of contacts | 32 + PE (17-32) |
| Number of poles | 32 |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 66.40 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 12 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 4 mm² |
| Diameter male contact | 2.5 mm |
| Pin numbers | 17-32 |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | To be ordered with CDCM 16 |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 250 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
