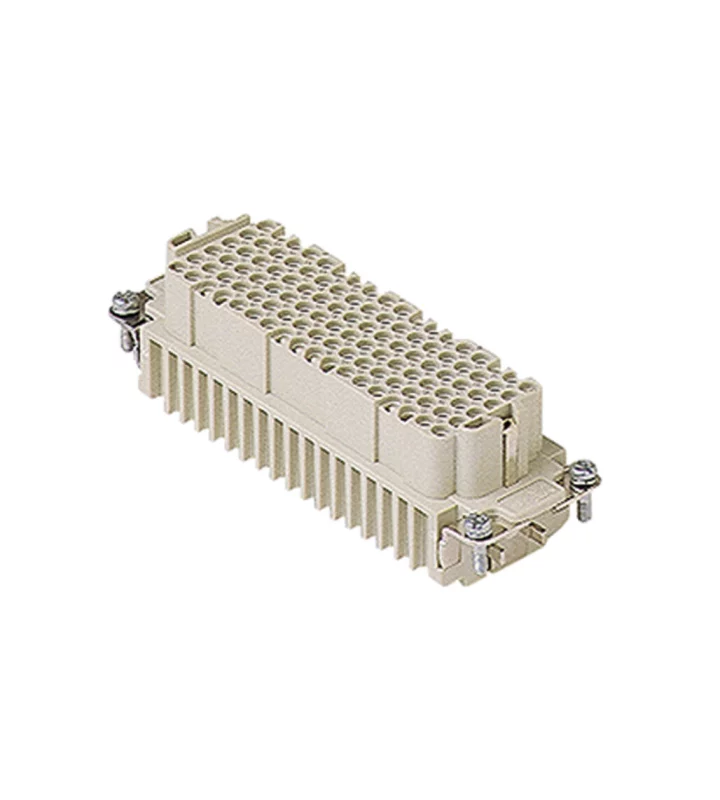

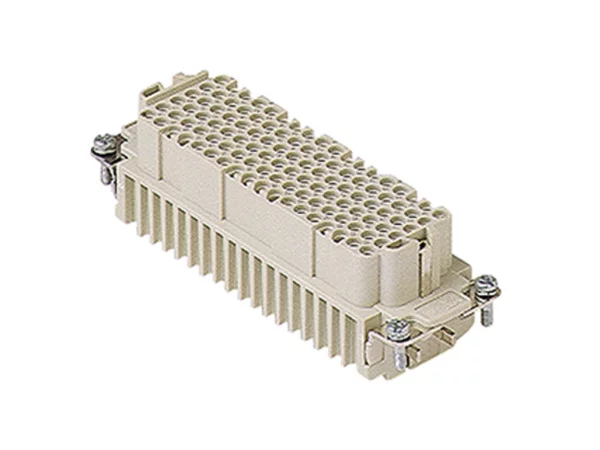

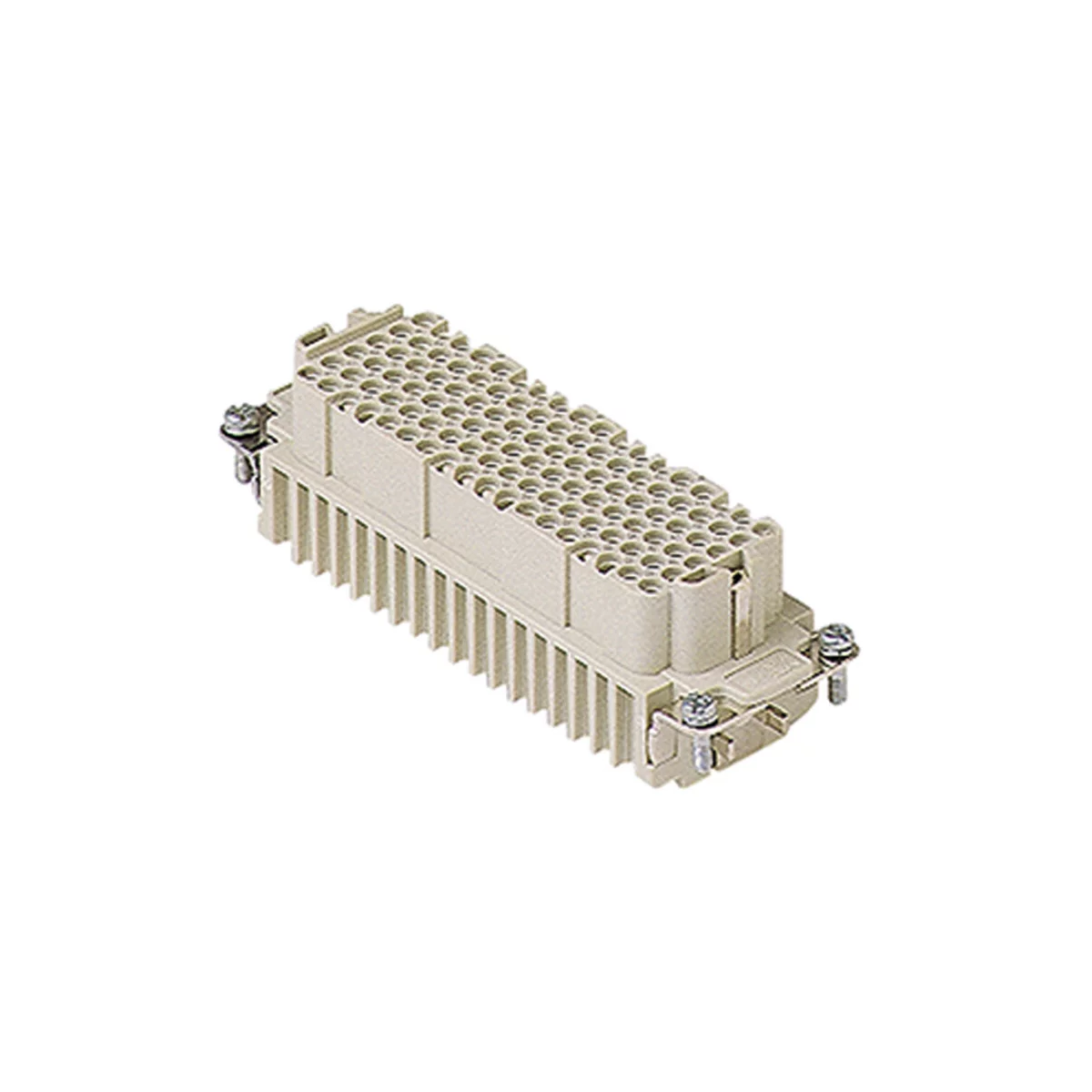

female insert, 108p+PE, crimp, 10A, 250V, for size 104.62 no.109-216

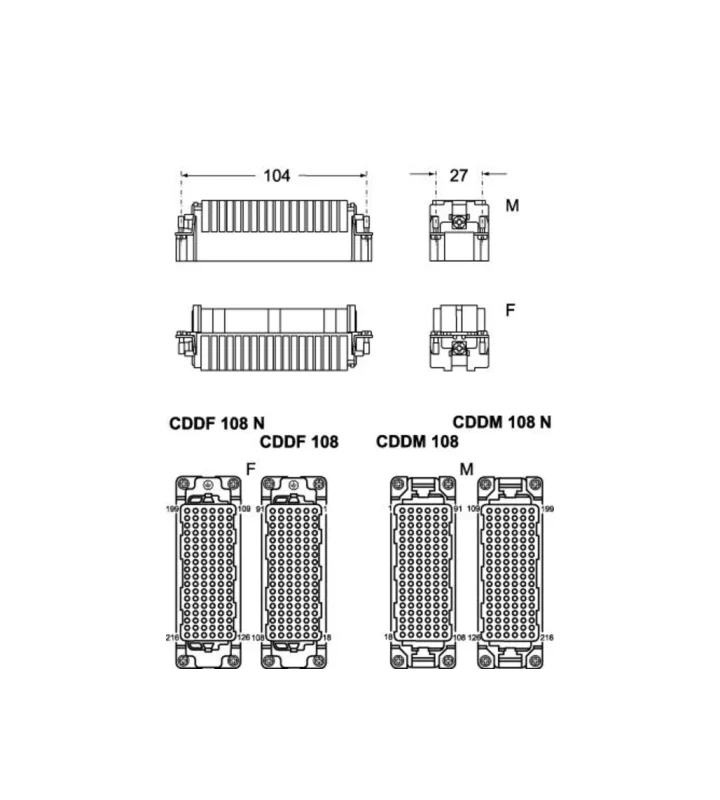

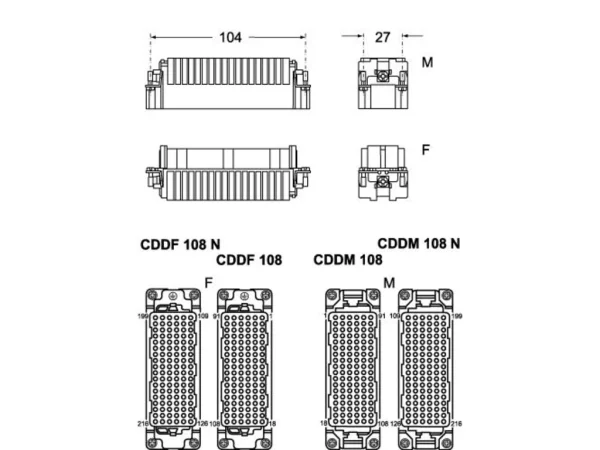

CDDF 108 N
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CDD |
| Number of contacts | 216 + PE (109-216) |
| Number of poles | 216 |
| Connection type | Crimp connection |
| Gender | Female |
| Size | 104.62 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Diameter male contact | 1.6 mm |
| Pin numbers | 109-216 |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | To be ordered with CDDF 108 |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 250 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 2 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
