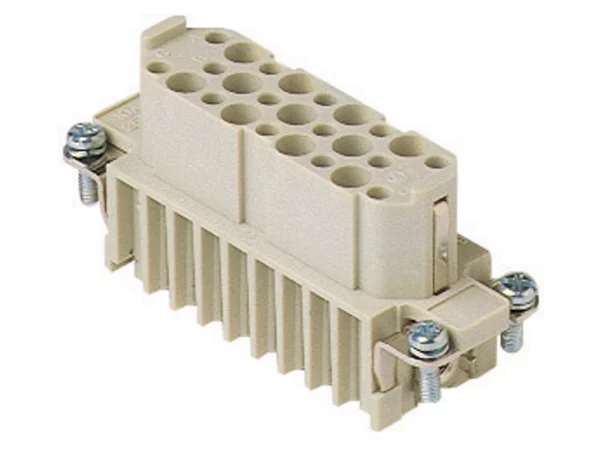

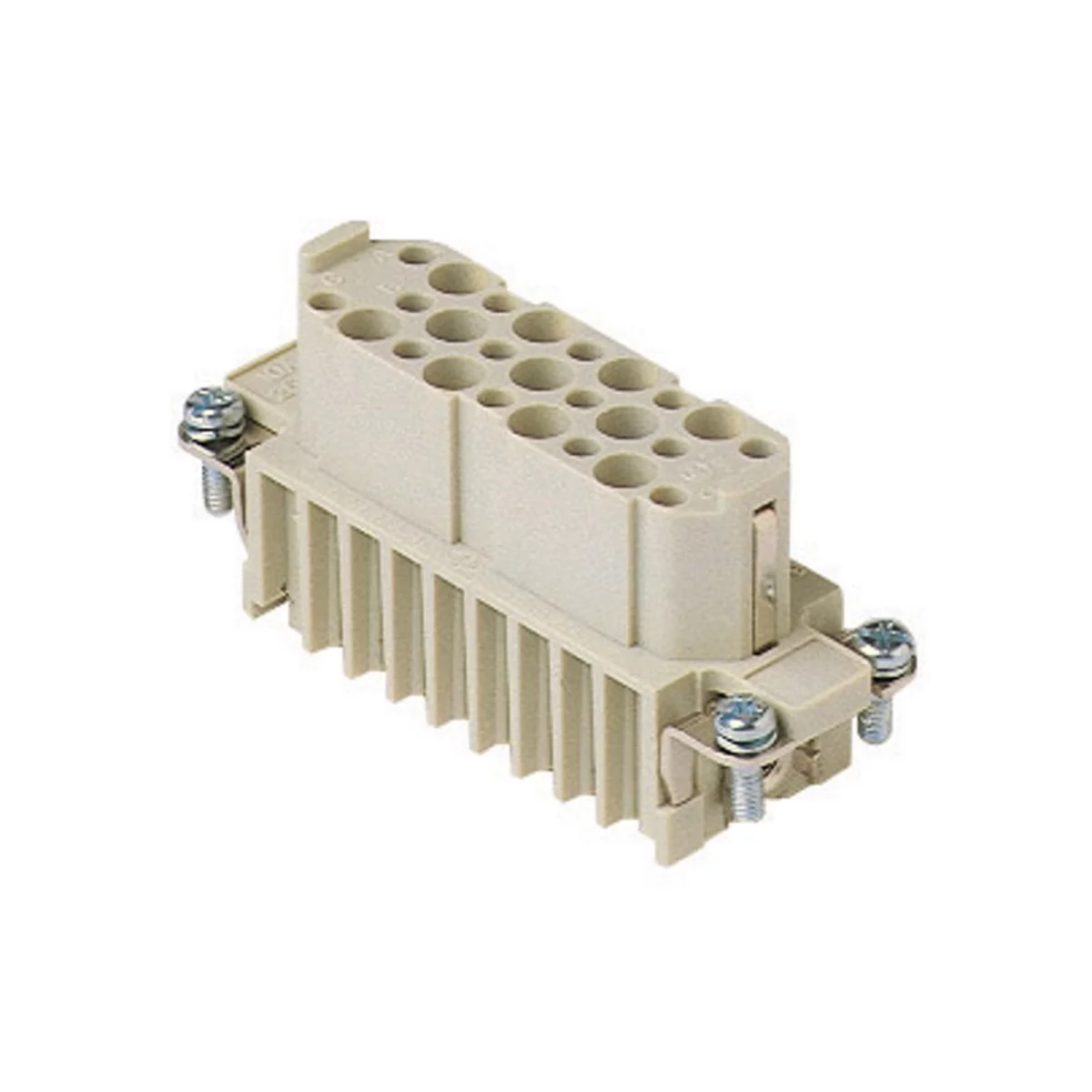

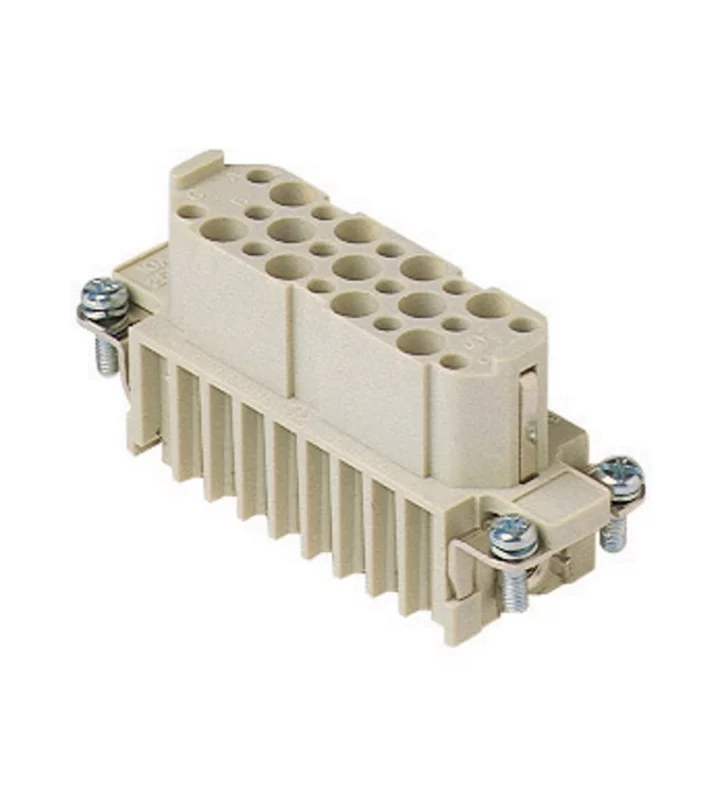

female insert, size 66.40, 25p+PE, crimp, 10A, 250V, marking Z

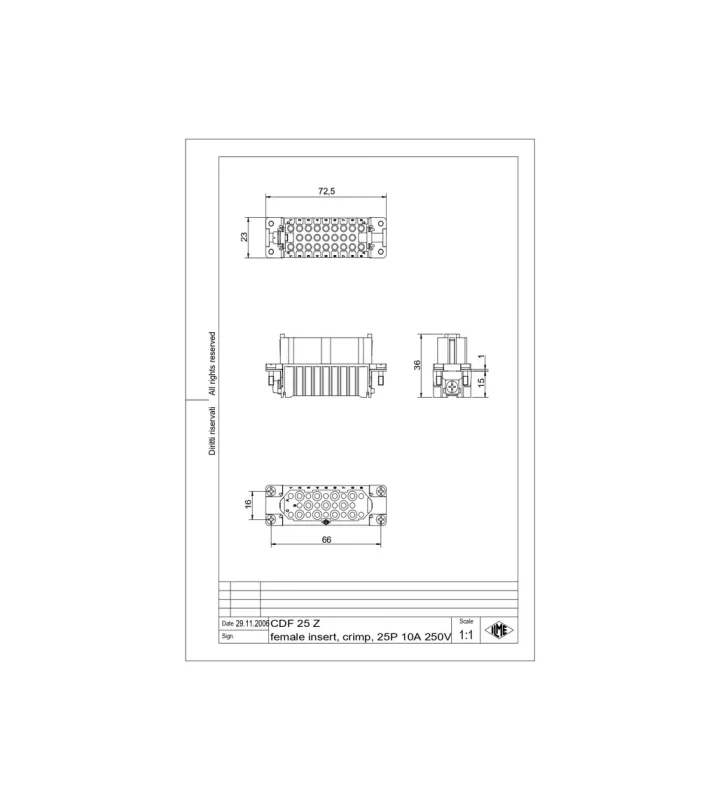

CDF 25 Z
Stel je connector verder samen
Voeg de gewenste housings, contacts en accessories toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CD |
| Number of contacts | 25 + PE |
| Number of poles | 50 |
| Connection type | Crimp connection |
| Gender | Female |
| Size | 66.40 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Diameter male contact | 1.6 mm |
| Pin numbers | ZA (1-9), ZB (1-7), ZC (1-9) |
| Colour | White |
| Extra information | Contact insert without contacts |
| Remark | Coding compliant with EUROMAP recommendations |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 250 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
