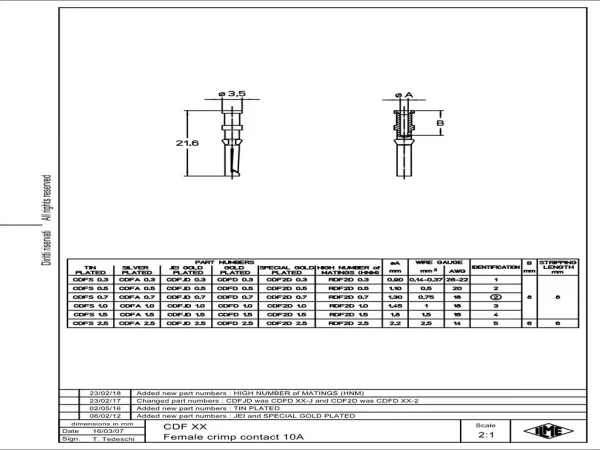

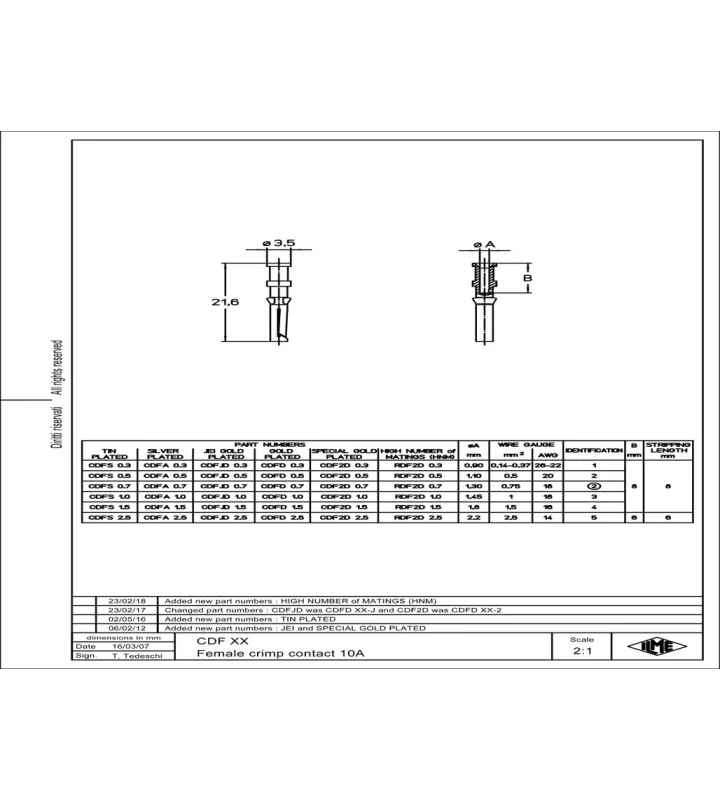

female contact, 1,0mm², silver, crimp, 10A, series CD
CDFA 1.0
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Female |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Min. Cross section | 1 mm² |
| Max. Cross section | 1 mm² |
| AWG size | 18 |
| Identification | 3 |
| Diameter male contact | 1.6 mm |
| Wire strip length | 8 mm |
Electrical parameters
| Max. rated current | 10 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Silver |
