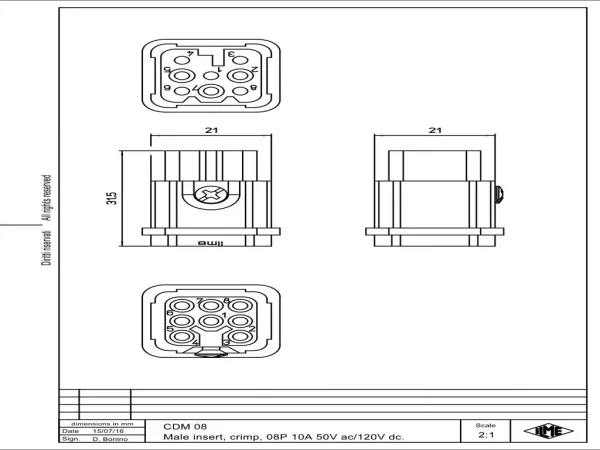

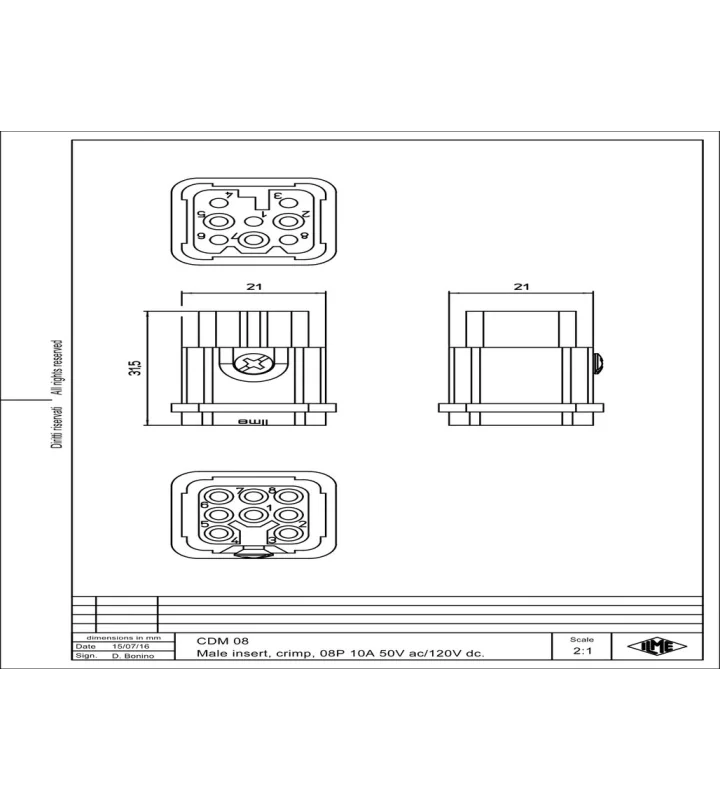

male insert, size 21.21, 8p, crimp, 10A, 50V
CDM 08
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CD |
| Number of contacts | 8 |
| Number of poles | 8 |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Diameter male contact | 1.6 mm |
| Colour | White |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | III |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
