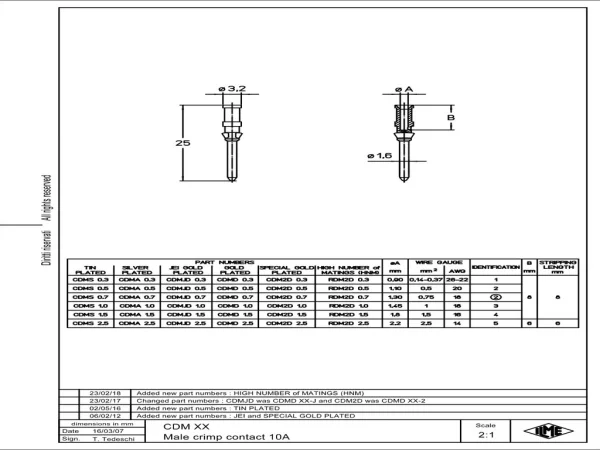

male contact, 0,14-0,37mm², gold, crimp, 10A, series CD
CDMD 0.3
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 0.37 mm² |
| AWG size | 26 - 22 |
| Identification | 1 |
| Diameter male contact | 1.6 mm |
| Wire strip length | 8 mm |
Electrical parameters
| Max. rated current | 10 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
