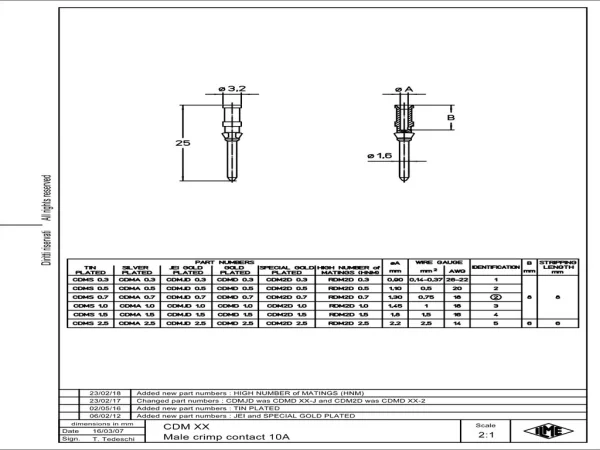

male contact, 0,75mm², gold JEI, crimp, 10A, series CD
CDMJD 0.7
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 0.75 mm² |
| Max. Cross section | 0.75 mm² |
| AWG size | 18 |
| Identification | ② |
| Diameter male contact | 1.6 mm |
| Wire strip length | 8 mm |
Electrical parameters
| Max. rated current | 10 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
