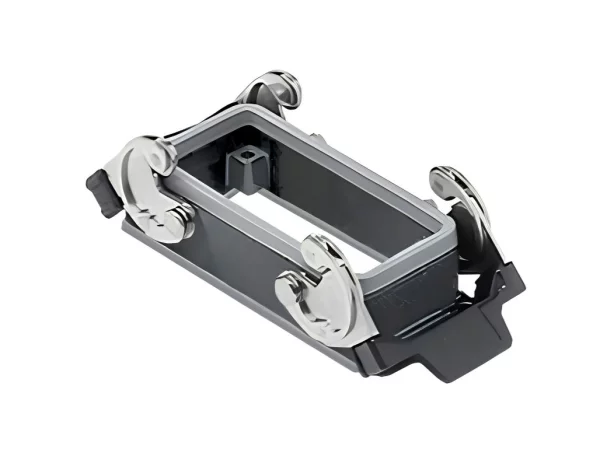

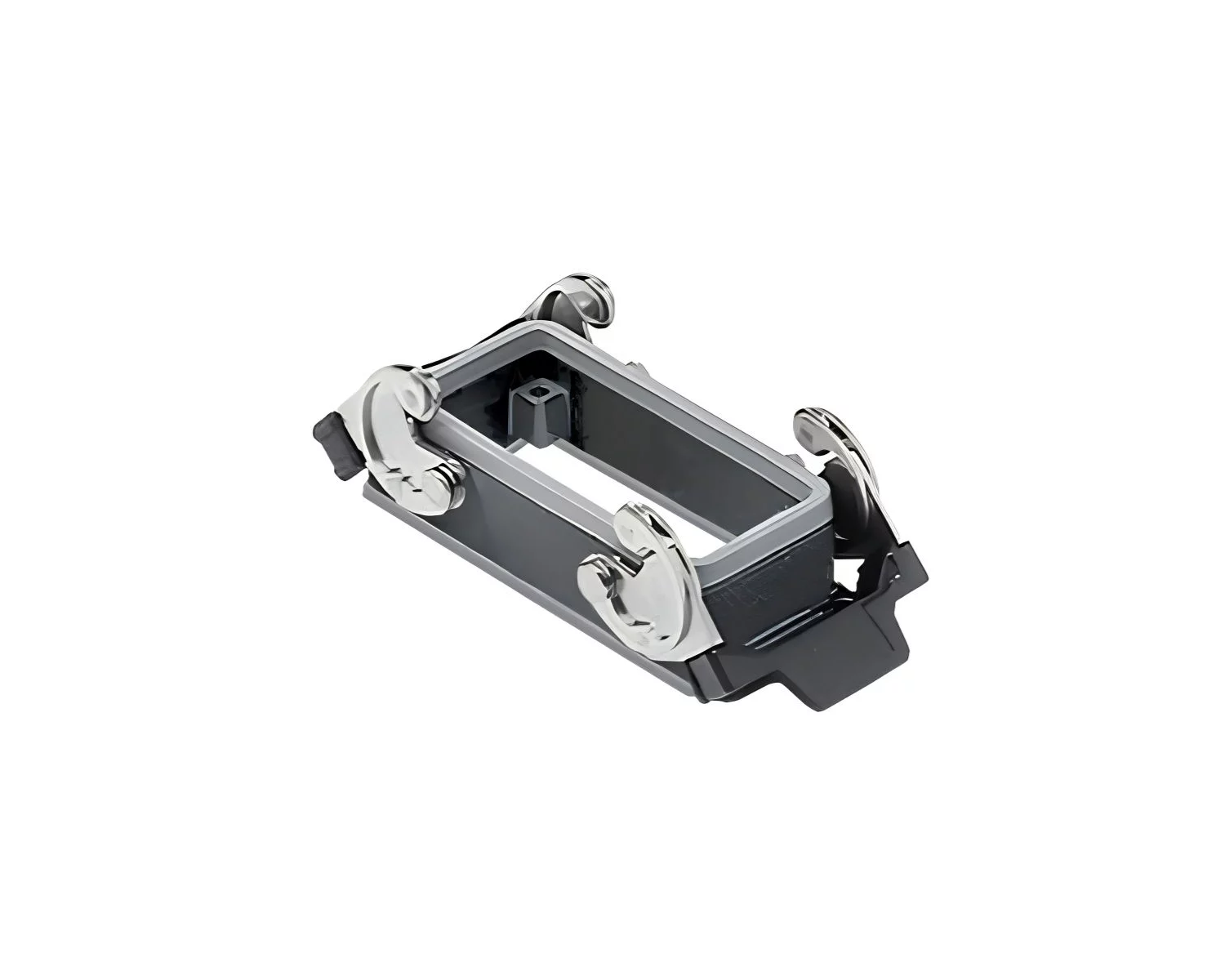

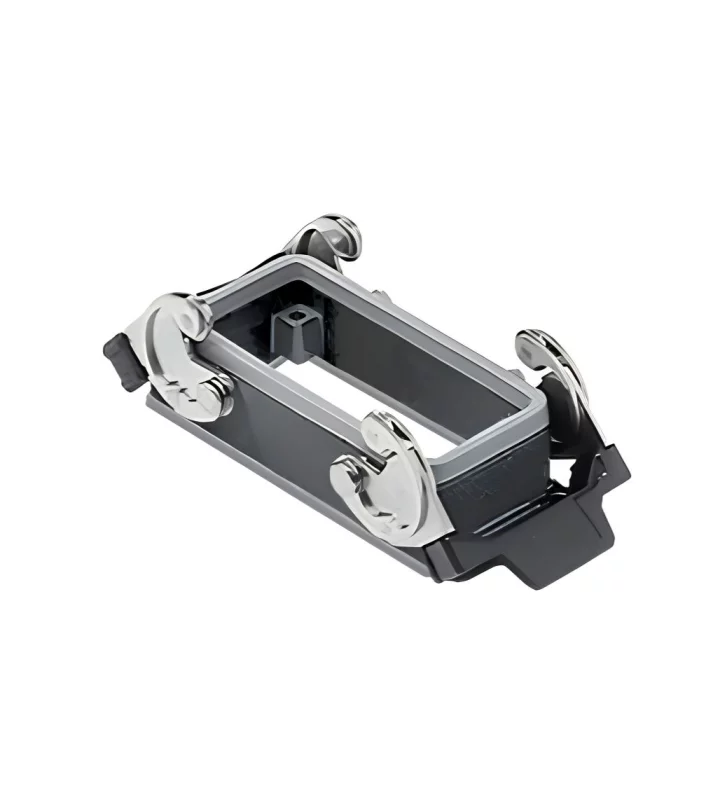

bulkhead mounting housing, size 77.27, E-Xtreme alu, 2 levers
CHIE 16
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 77.27 |
| Enclosure series | E-Xtreme® C-TYPE |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |

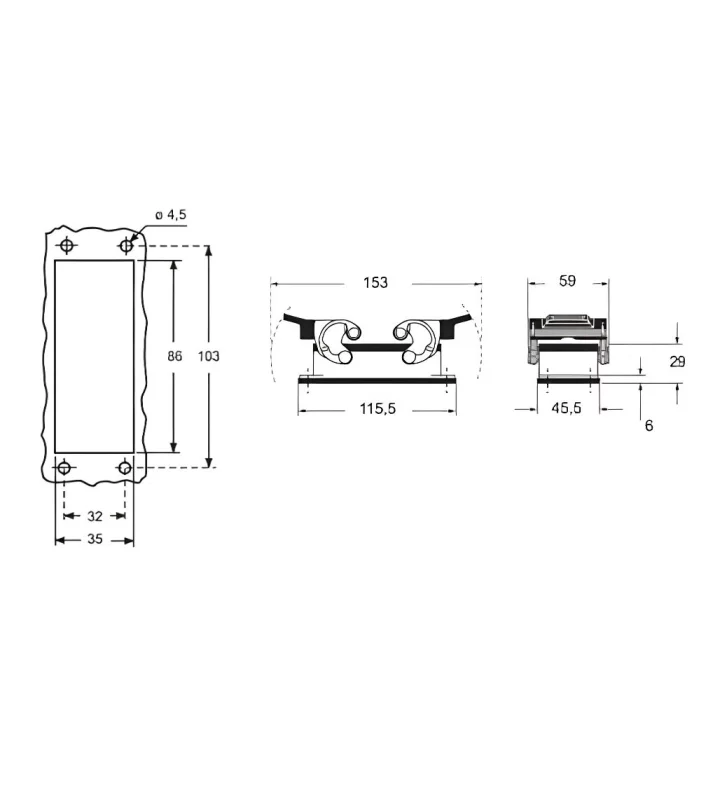

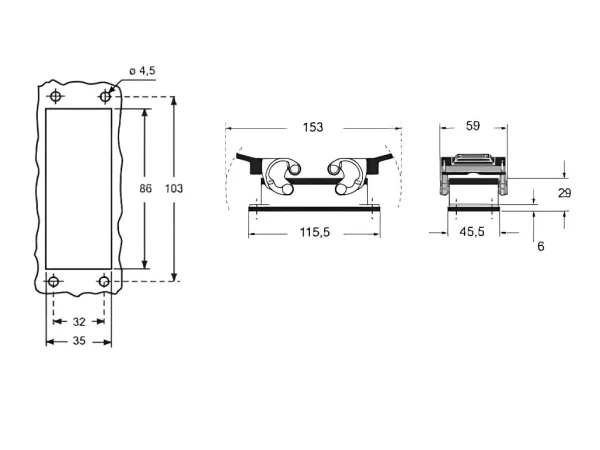

| Height | 29 mm |
| Width | 59 mm |
| Length | 115.5 mm |
| Remark | FKM gasket (-40°C…+180°C) or silicone gasket (-60°C…+180°C) |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
