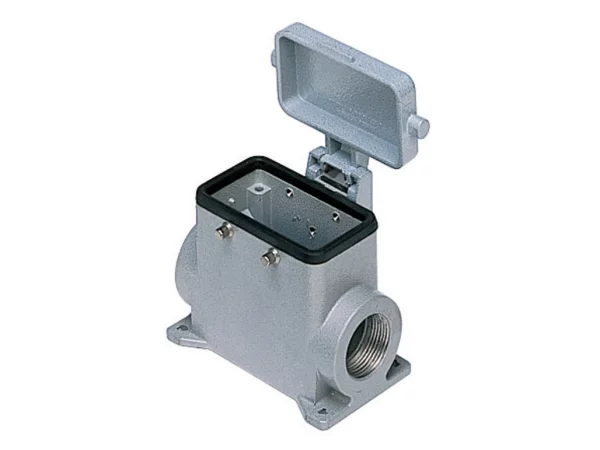

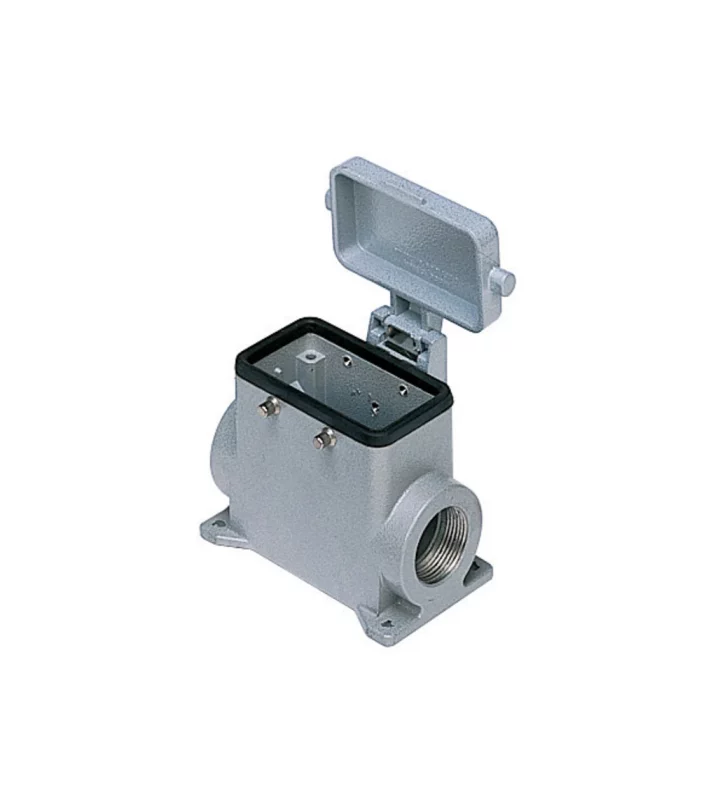

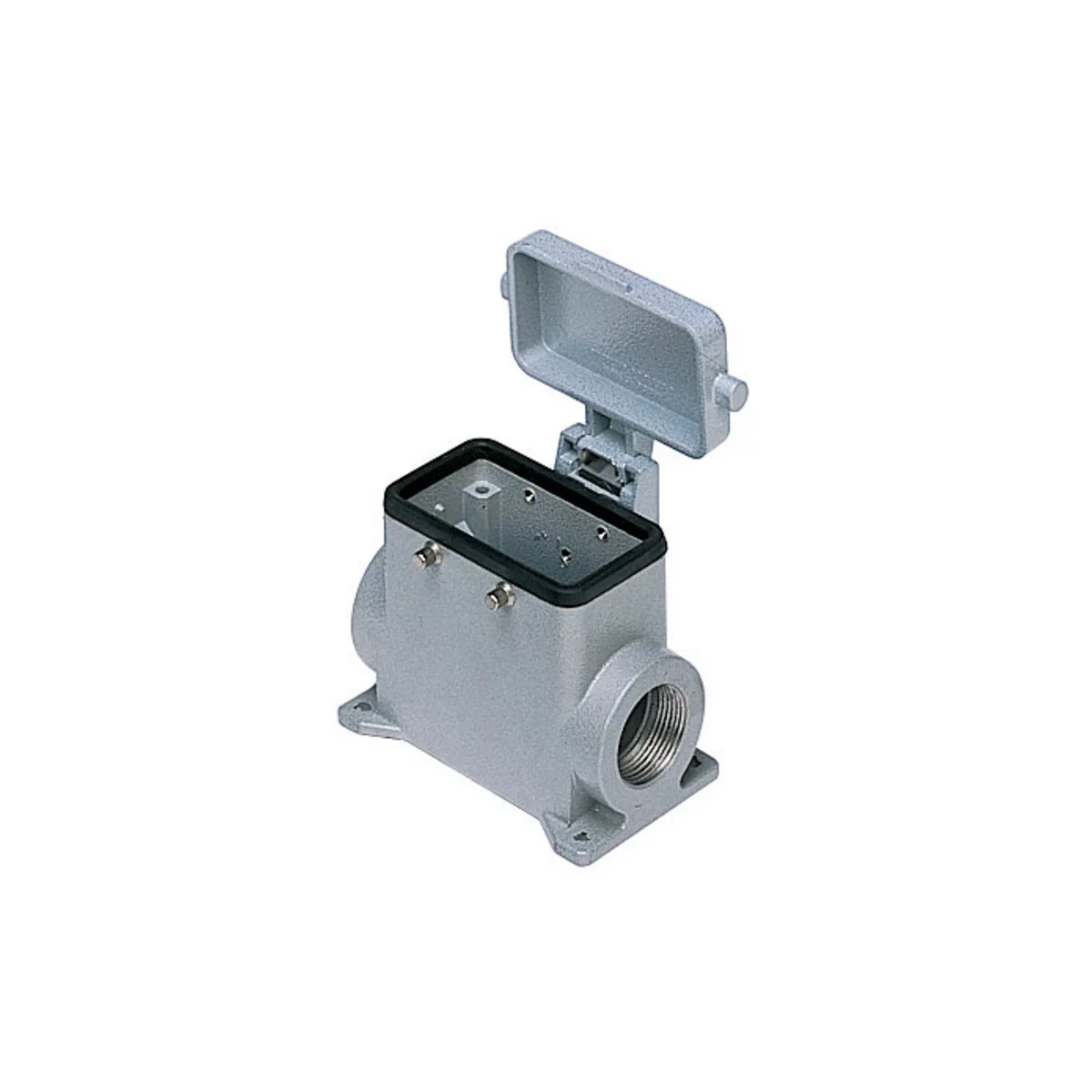

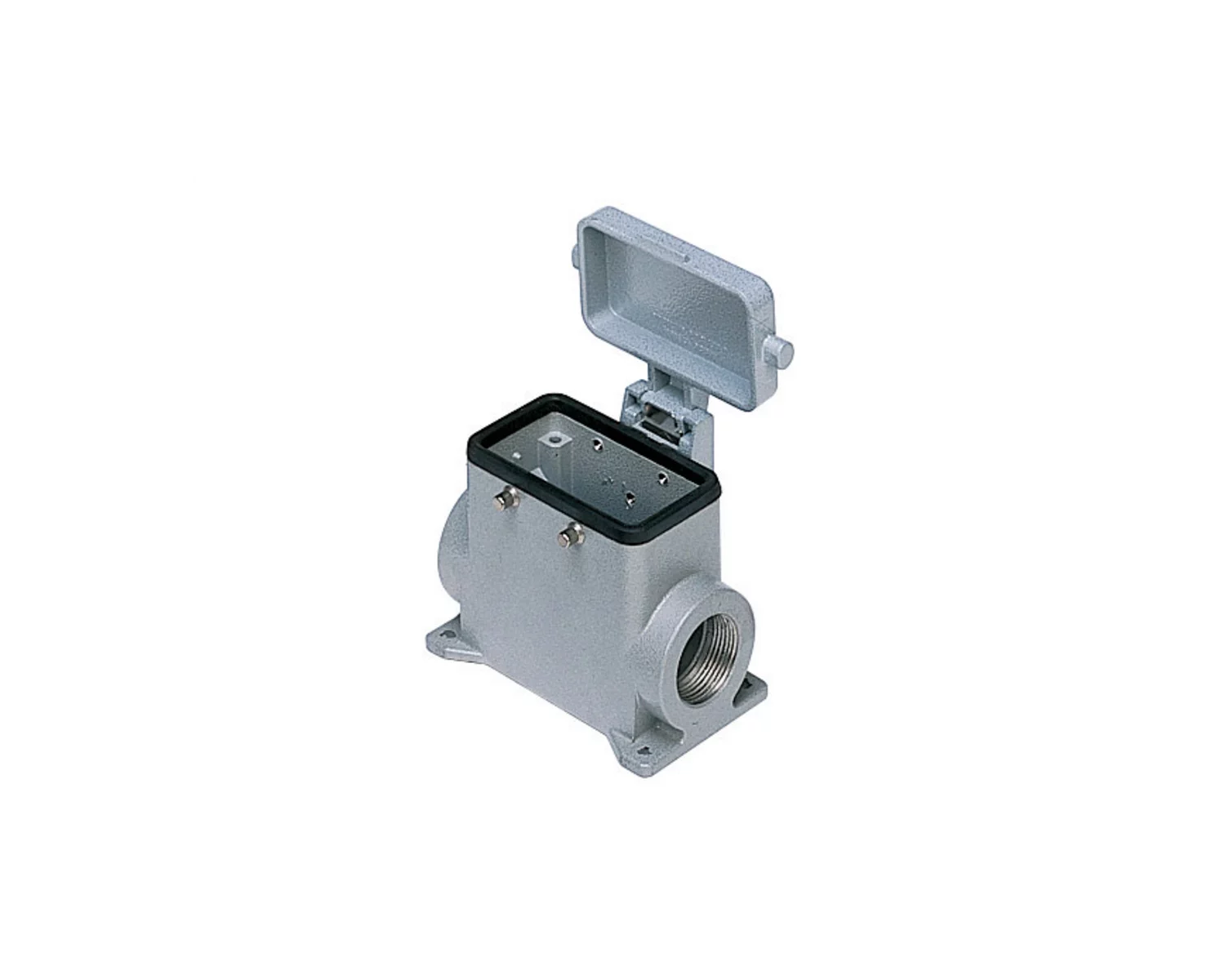

surface mounting housing, size 57.27, C-TYPE alu, 4 pegs, 1xPG16 side, cov.
CHP 10 CS
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 57.27 |
| Enclosure series | C-TYPE |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | Pg16 |
| Position cable feed | Side entry |

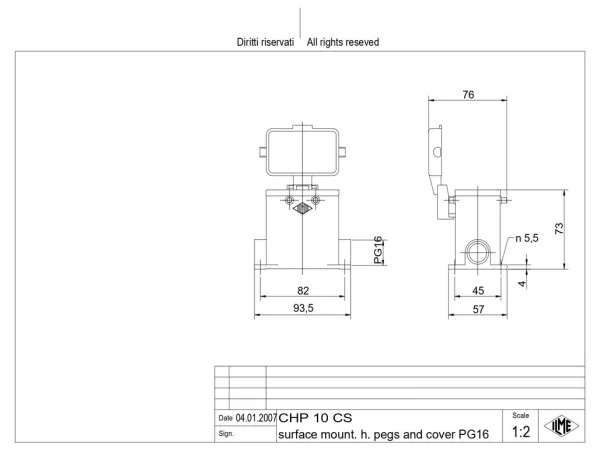

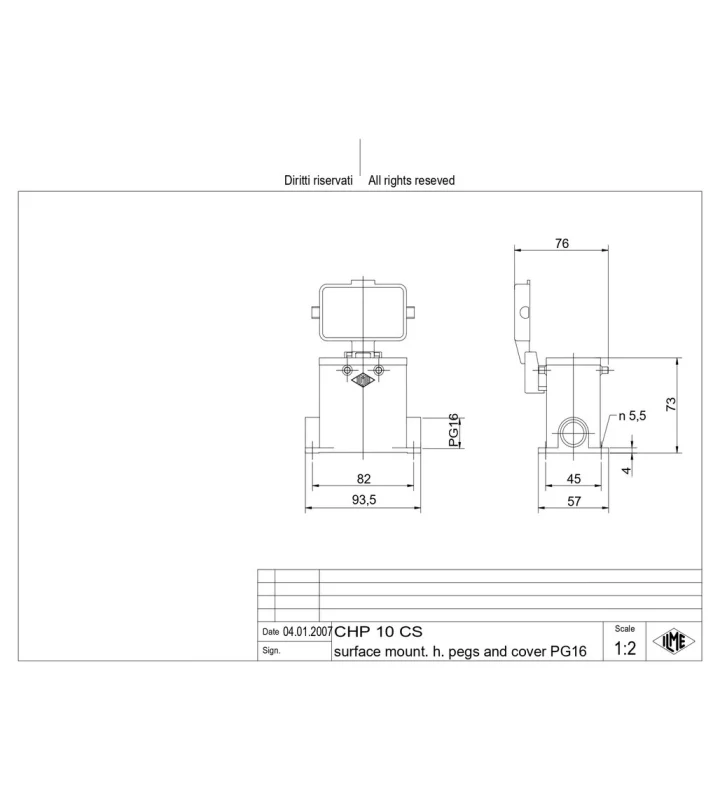

| Height | 57 mm |
| Width | 52 mm |
| Length | 93.5 mm |
| Remark | May be combined with enclosures: CHO 10 X,CAO 10 X,CHV 10 X,CAV 10 X,MHO 10 X,MAO 10 X,MHV 10 X,MAV 10 X |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With hinged lid,With interlocking device |
