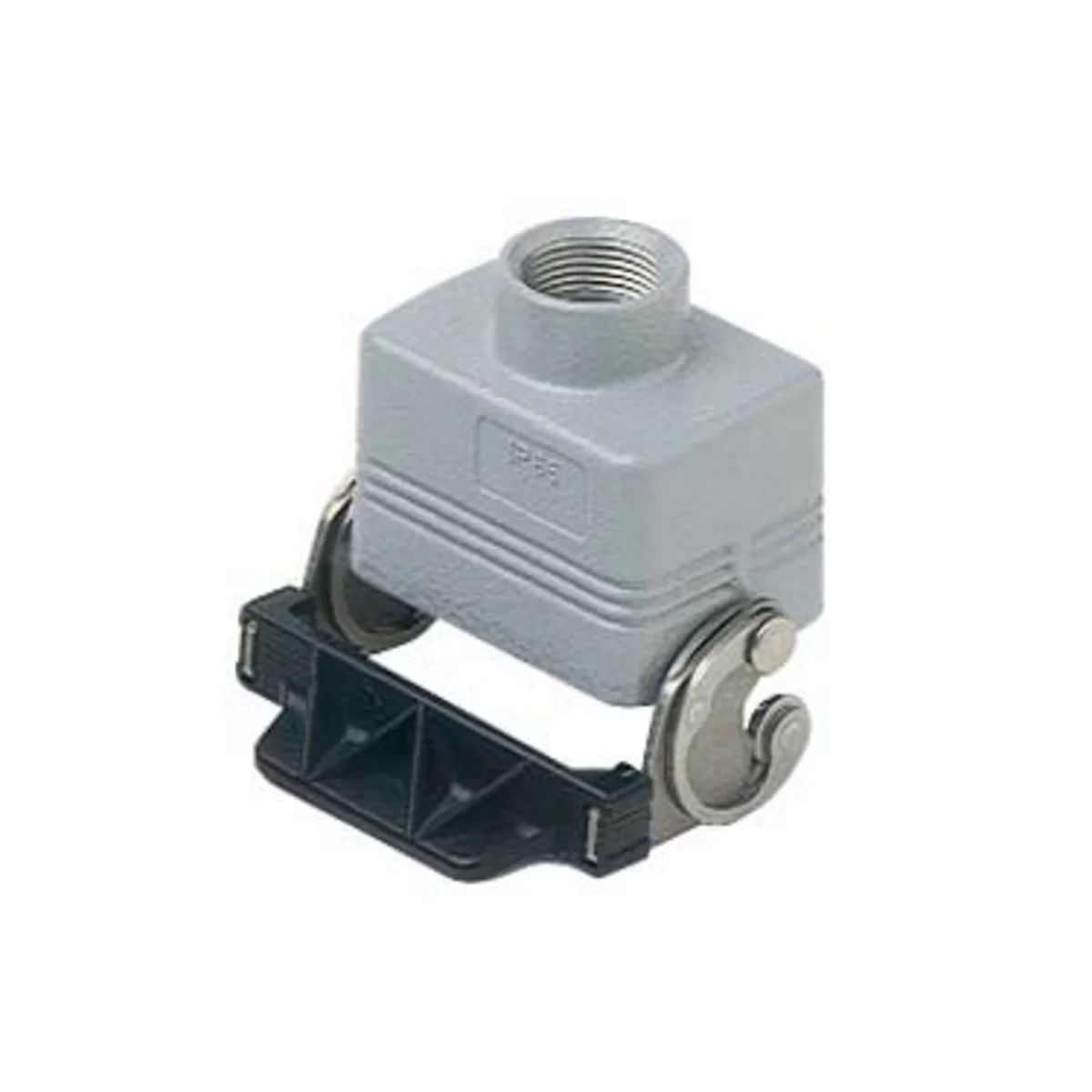

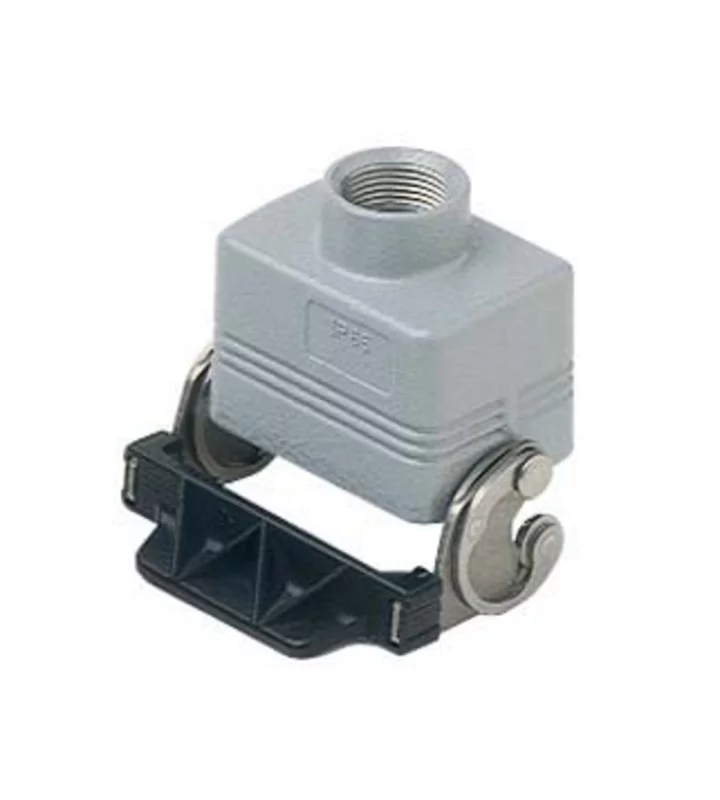

hood, size 44.27, C-TYPE alu, 2 pegs, 1xPG16 top

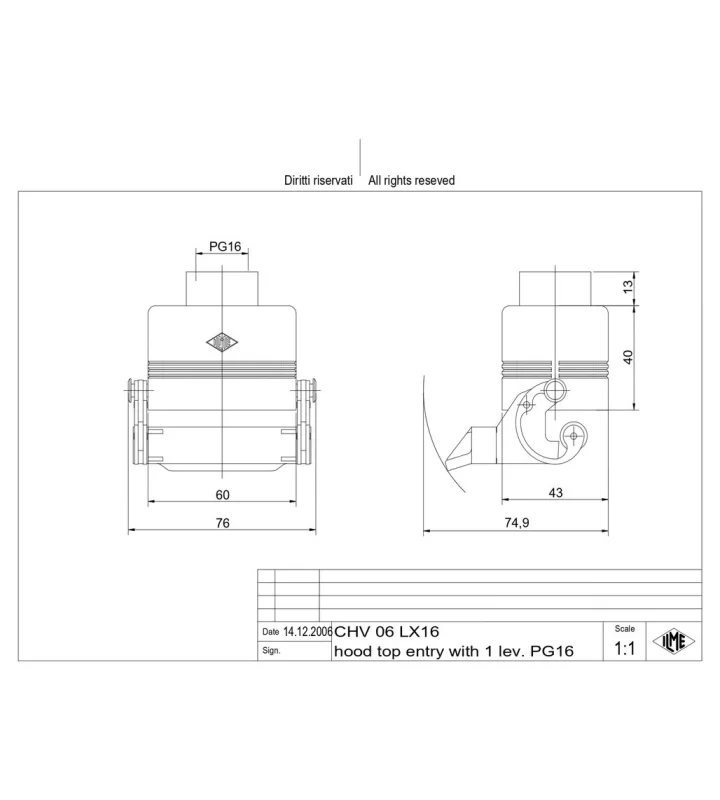

CHV 06 LX16
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 44.27 |
| Enclosure series | C-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | Pg16 |
| Position cable feed | Top entry |
| Height | 53 mm |
| Width | 43 mm |
| Length | 76 mm |
| Remark | May be combined with enclosure: CHI 06 LCS,CHI 06 LCP,CHI 06 LC |
| Remark 2 | Cannot be used with MIXO inserts |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
