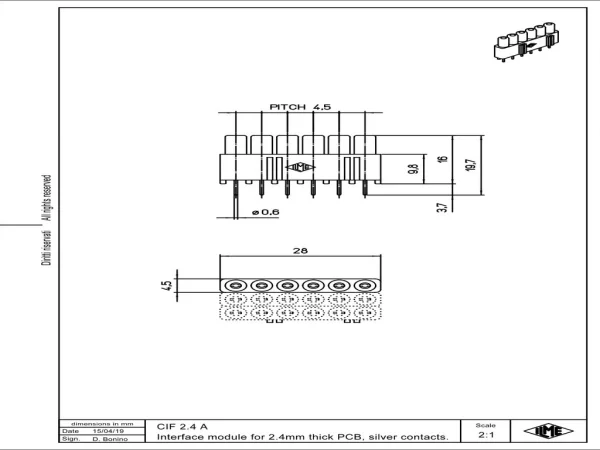

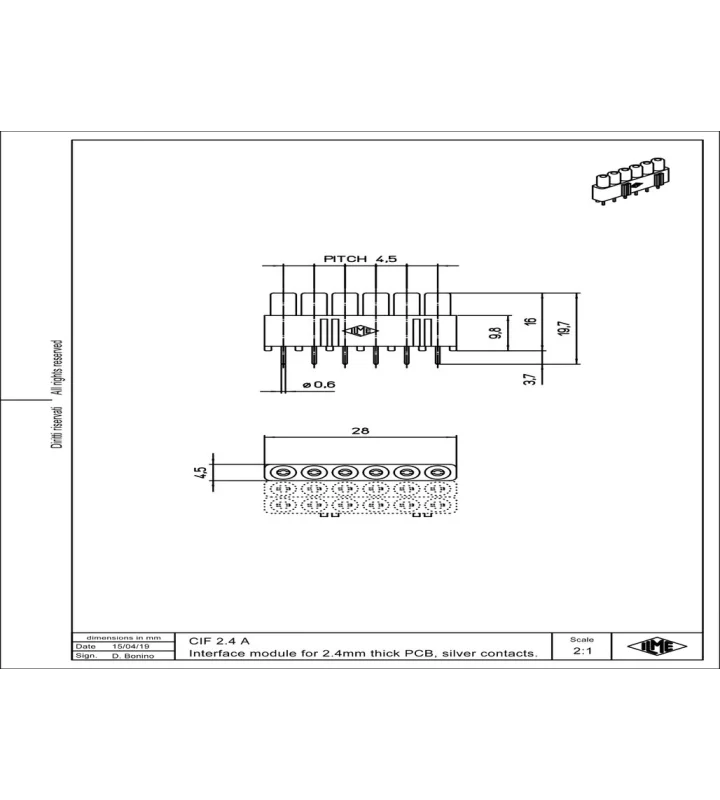

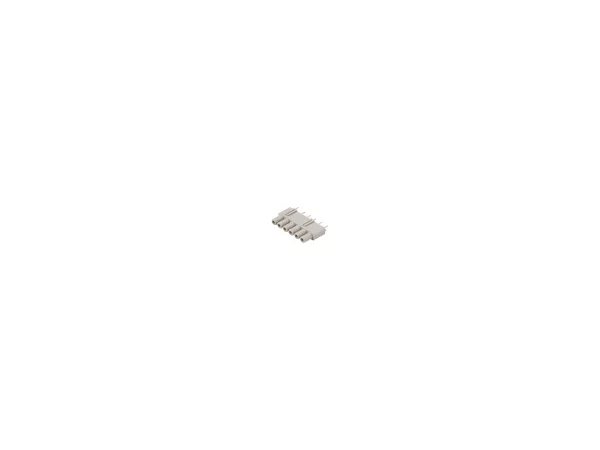

interface module, silver, 6p, plug, 6A, 250V, for PCB-size up to 2,4mm
CIF 2.4 A
Specificaties
General characteristics
|
Accessory type |
PCB adapters
|
|
Operation lower temperature |
-40 °C
|
|
Operation upper temperature |
125 °C
|
|
Colour |
Grey
|
|
Diameter PCB pin |
0.6 mm
|
|
Length PCB pin |
4.6 mm
|
|
Contact pitch |
4.5 mm
|
|
Number of poles |
6
|
|
Over voltage category |
III
|
|
Suitable for PCB thickness |
2.4
|
Material
|
Material |
Thermoplastic
|
|
Material contact |
Copper alloy
|
|
Plating of contact |
Silver
|
|
Inflammability class of insulation material acc. with UL94 |
V0
|
