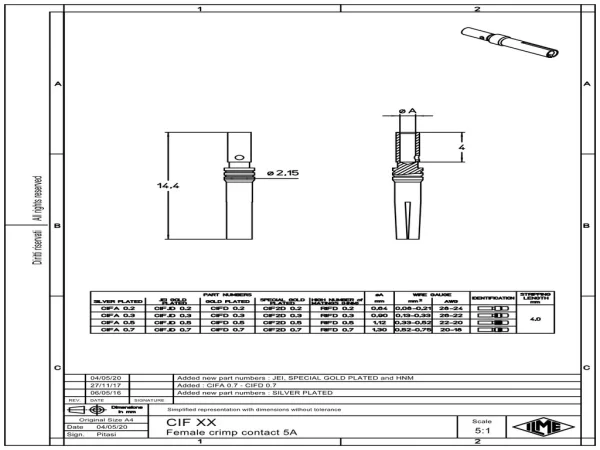

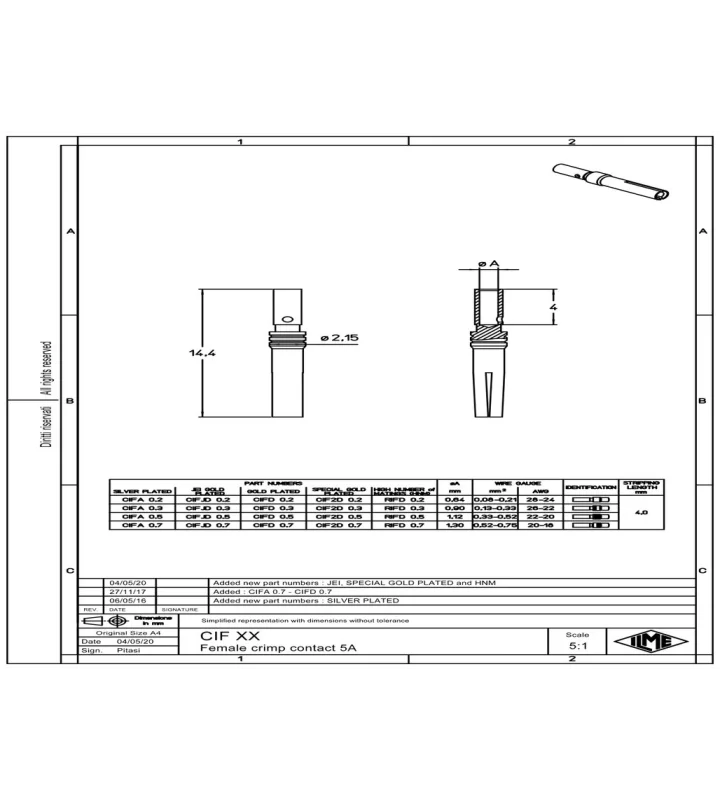

female contact, 0,13-0,33mm², gold JEI, crimp, 5A, series CI
CIFJD 0.3
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Female |
| Min. Cross section | 0.13 mm² |
| Max. Cross section | 0.33 mm² |
| AWG size | 26 - 22 |
| Diameter male contact | 1 mm |
| Wire strip length | 4 mm |
Electrical parameters
| Max. rated current | 5 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Gold |
