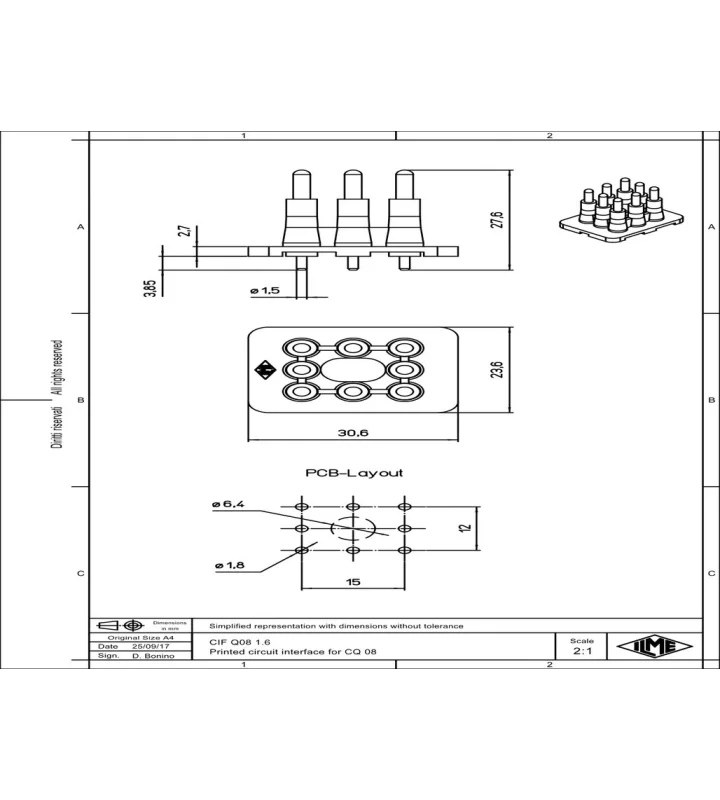

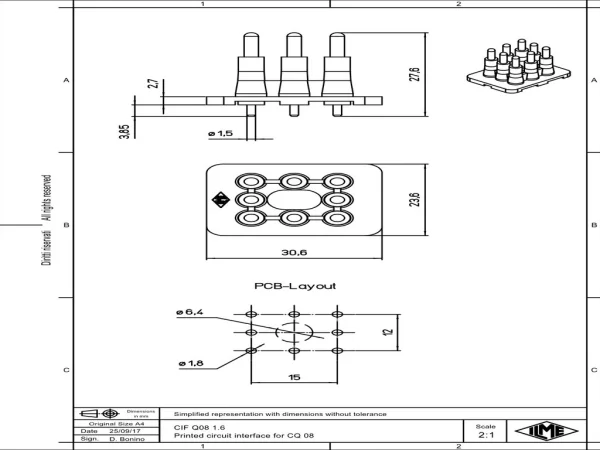

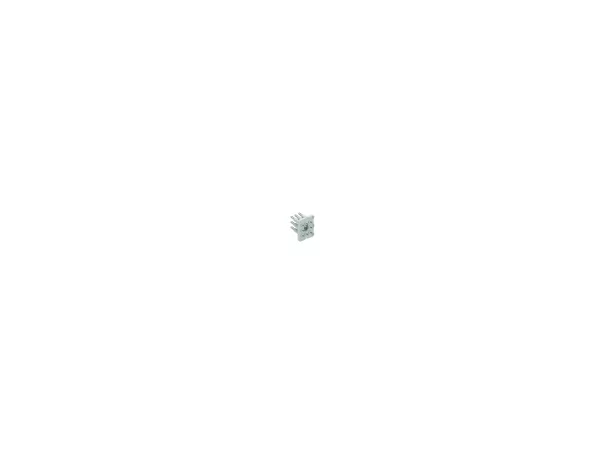

PCB-adapter, 8p+GND, 16A, 230/400V, for PCB-size up to 1,6mm
CIF Q08 1.6
Specificaties
General characteristics
| Accessory type | PCB adapters |
|---|---|
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Colour | Grey |
| Diameter PCB pin | 1.5 mm |
| Nominal rated voltage | 230/400 V |
| Number of poles | 8 |
| Pollution degree | 2 |
| Suitable for PCB thickness | 1.6 |
| Remark | For CQ 08 inserts |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Rated surge voltage | 4 kV |
Material
| Material | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
