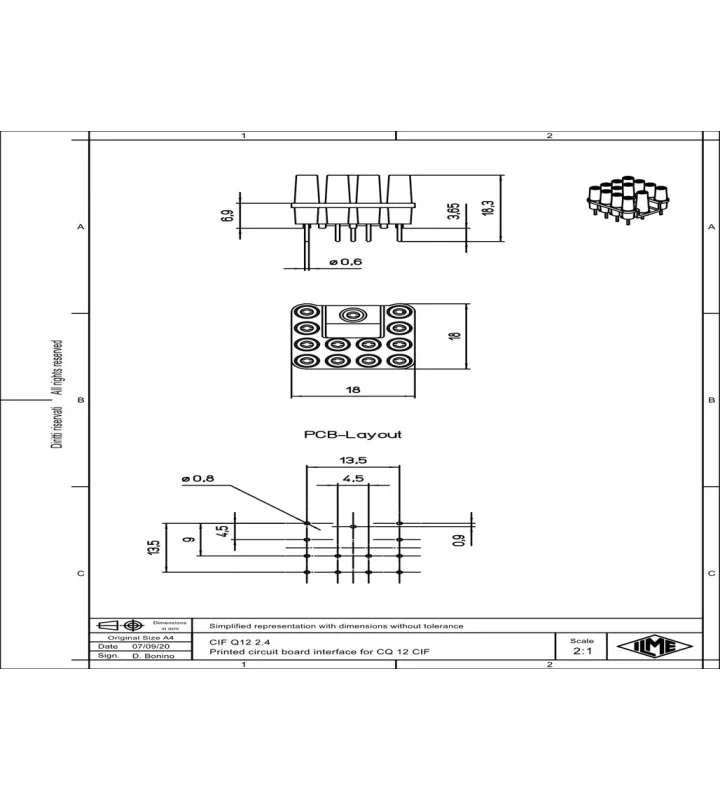

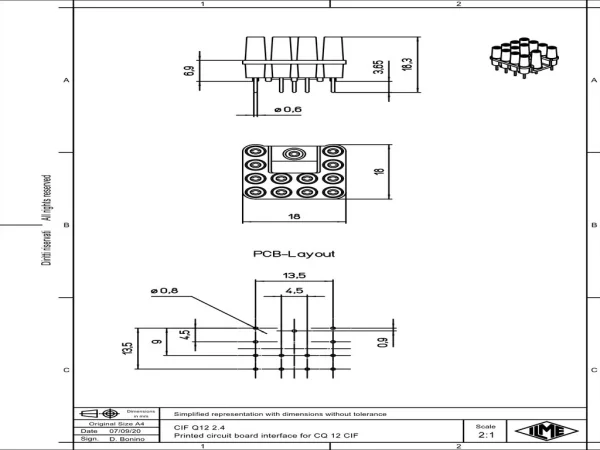

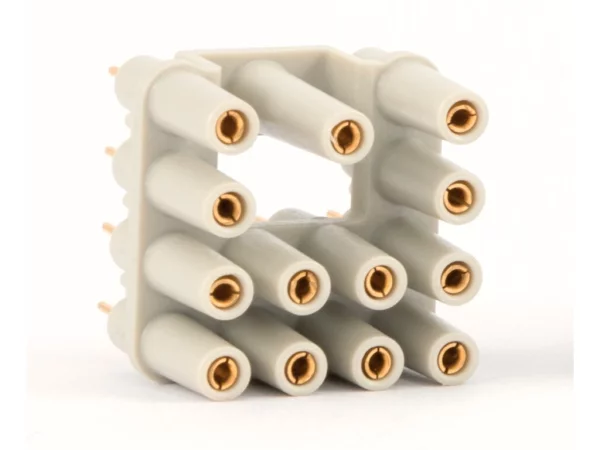

PCB-adapter, 12p+GND, 7,5A, 250V, for PCB-size up to 2,4mm
CIF Q12 2.4
Specificaties
General characteristics
| Accessory type | PCB adapters |
|---|---|
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Colour | Grey |
| Diameter PCB pin | 0.6 mm |
| Nominal rated voltage | 250 V |
| Number of poles | 12 + PE |
| Pollution degree | 3 |
| Suitable for PCB thickness | 2.4 |
| Remark | For CQ 12 CIF inserts |
Electrical parameters
| Max. rated current | 7.5 A |
|---|---|
| Rated surge voltage | 4 kV |
Material
| Material | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Gold |
| Inflammability class of insulation material acc. with UL94 | V0 |
