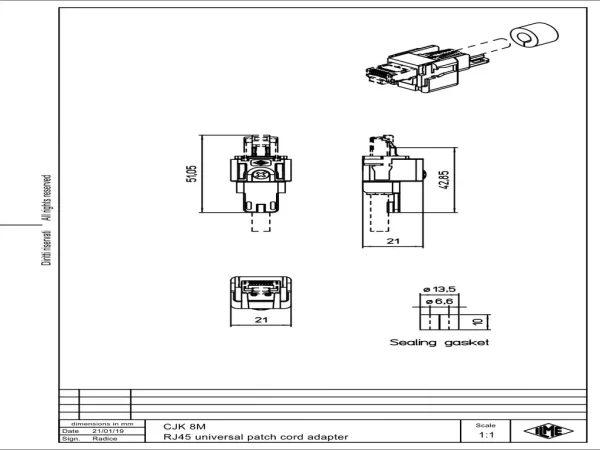

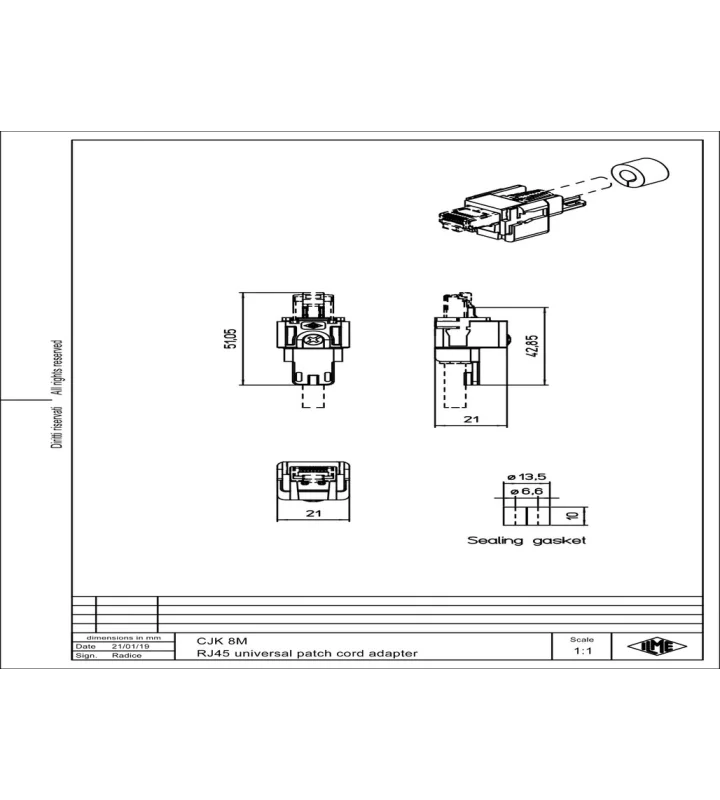

adaptor, size 21.21, for RJ45 patch cable
CJK 8M
Stel je connector verder samen
Voeg de gewenste housings toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Data connection insert |
|---|---|
| Insert series | CJK adapters |
| Number of contacts | 8 - RJ45 |
| Number of poles | 8 |
| Connection type | Data connection |
| Gender | Male |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
Electrical parameters
| Max. rated current | 1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
