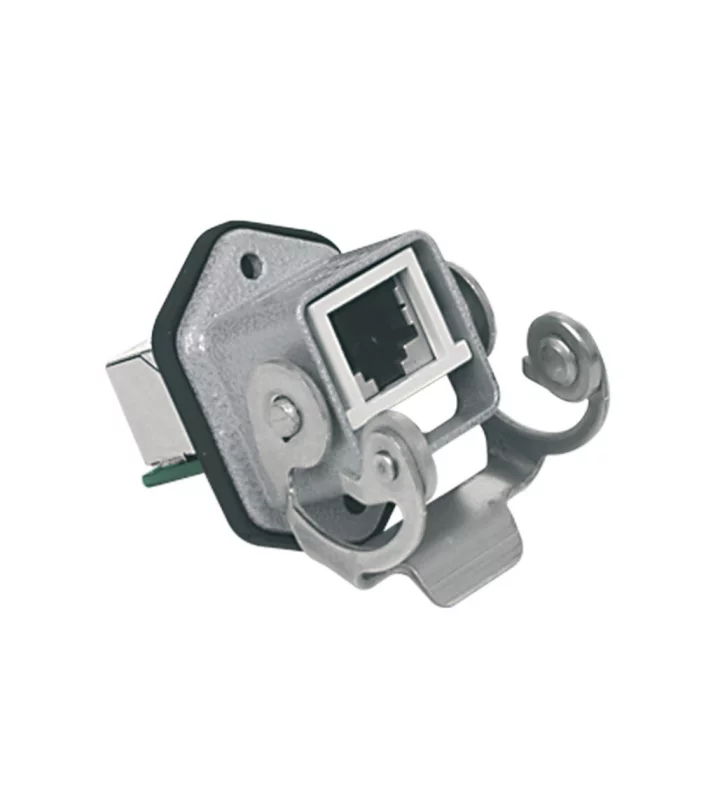

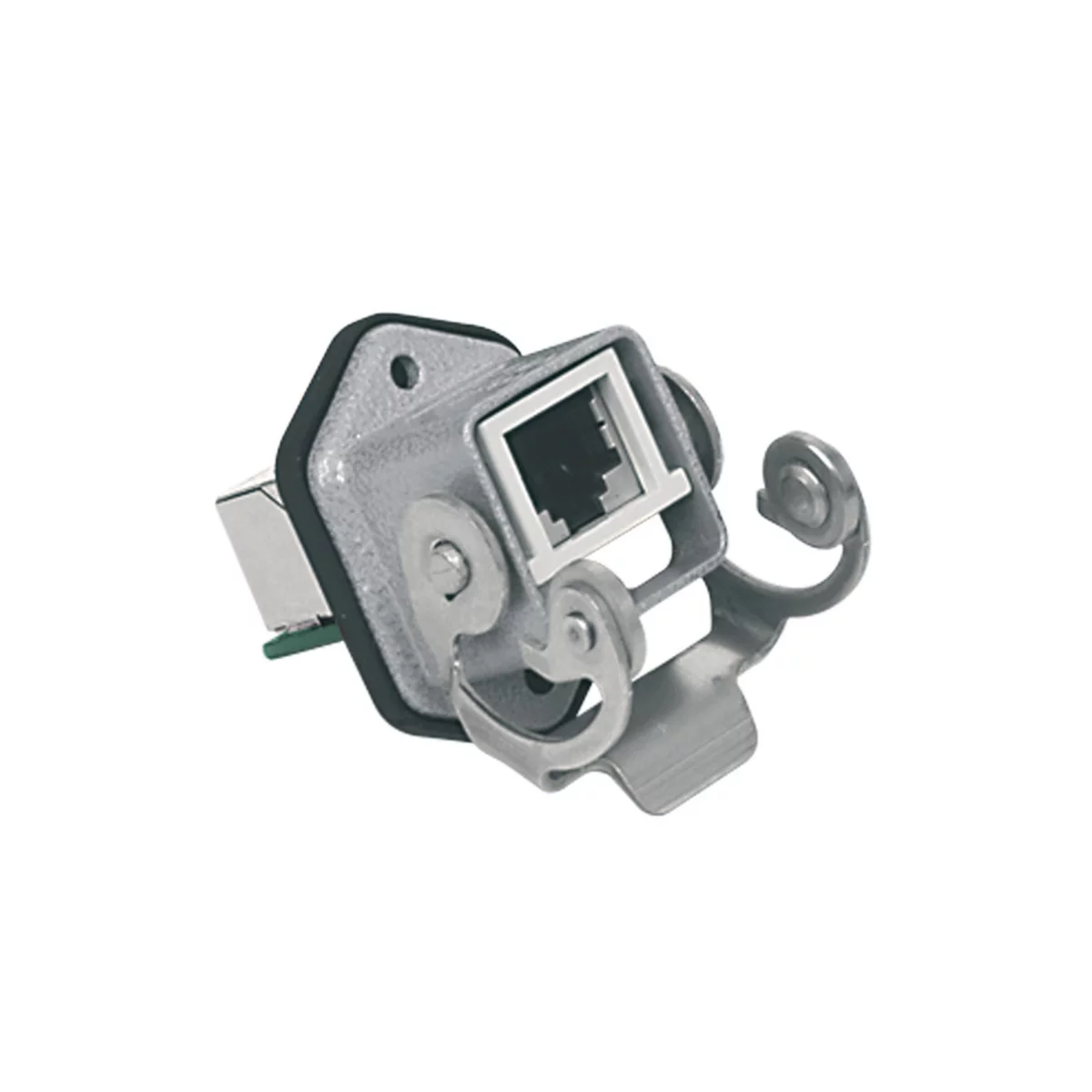

bulkhead mounting connector, size 21.21, zinc, 1 lever, 8p, RJ45
CJZA 8 I
Stel je connector verder samen
Voeg de gewenste housings en accessories toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Data connection insert |
|---|---|
| Insert series | CJZ connectors |
| Number of contacts | 8 |
| Number of poles | 8 |
| Connection type | Data connection |
| Gender | Female |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 120 °C |
| Colour | Grey |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 2.1 A |
|---|---|
| Nominal rated voltage | 50 V |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
