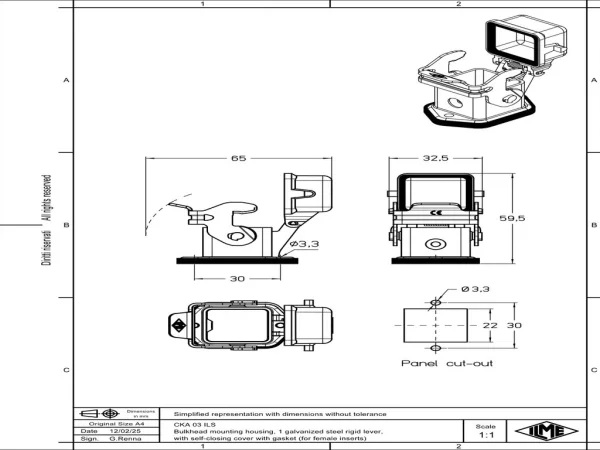

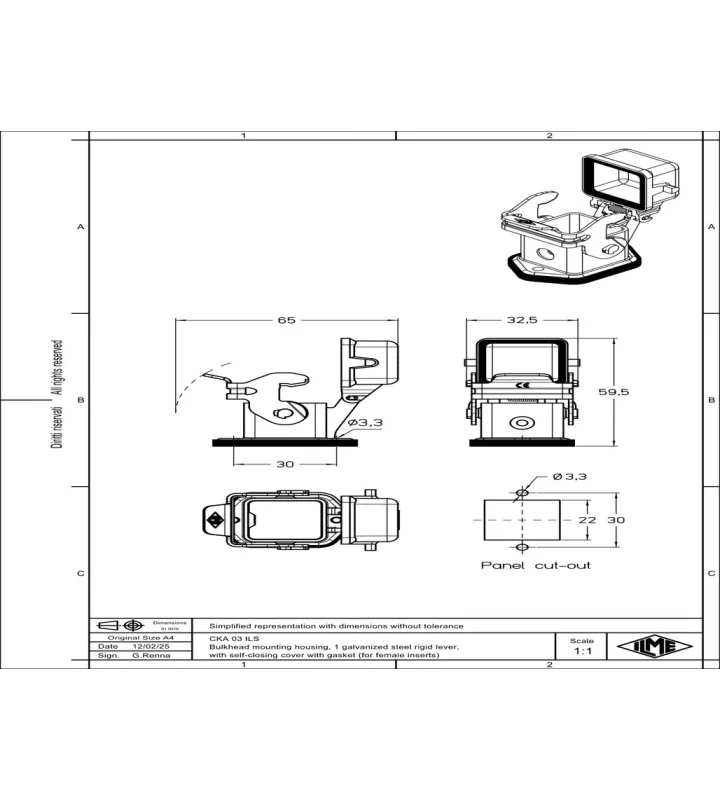

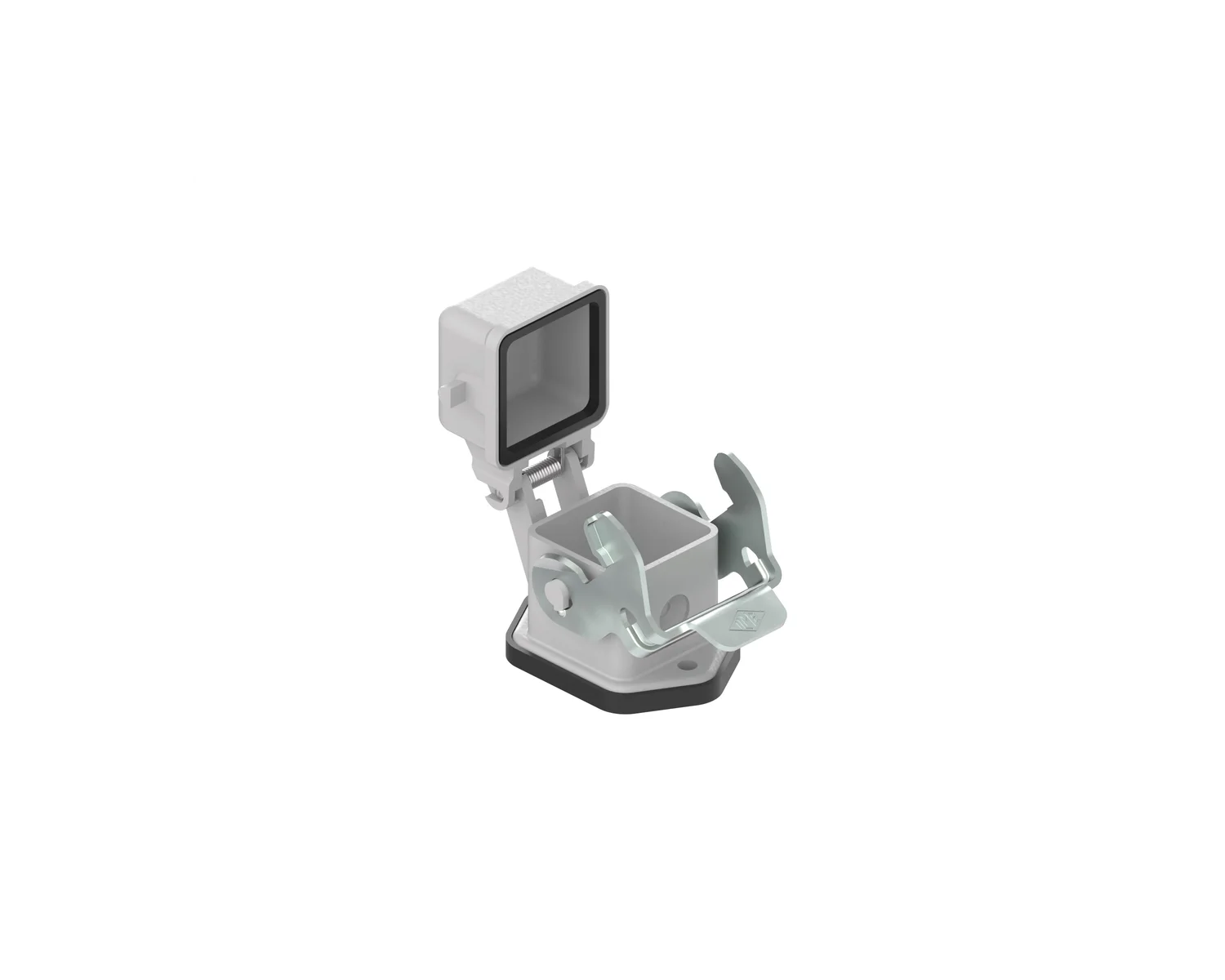

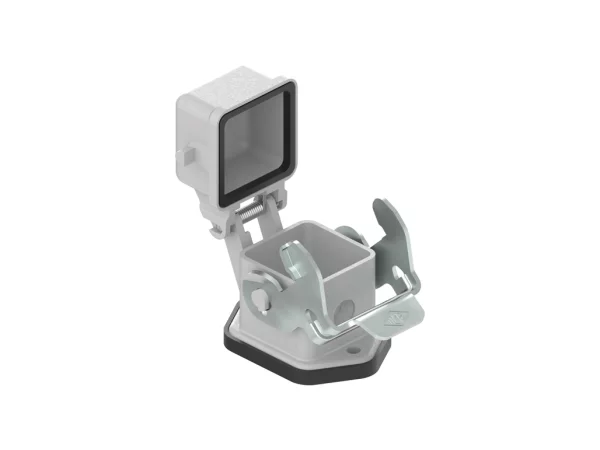

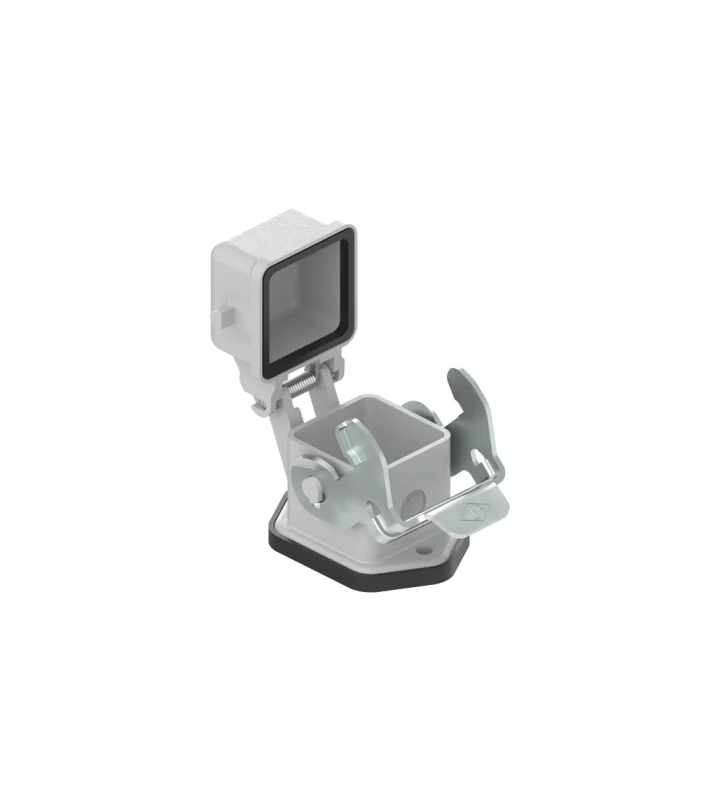

bulkhead mounting housing, size 21.21, CKA zinc, 1 lever steel, spring cover, for female inserts
CKA 03 ILS
Stel je connector verder samen
Voeg de gewenste accessories en standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CKA |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 59.5 mm |
| Width | 33.5 mm |
| Length | 30 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | Uncoated |
| Extra information | Corrosion resistant,UV resistant,With hinged lid,With interlocking device |
