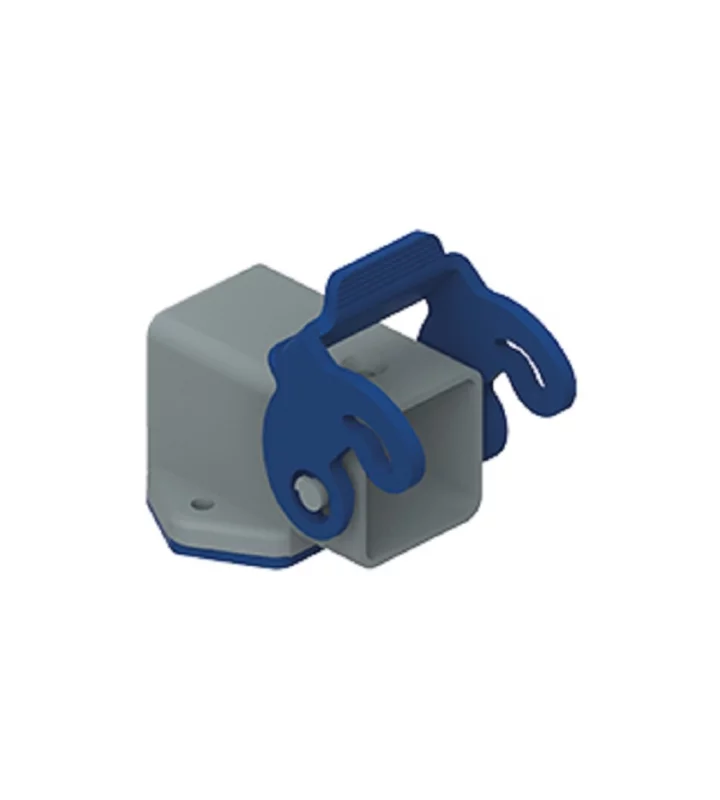

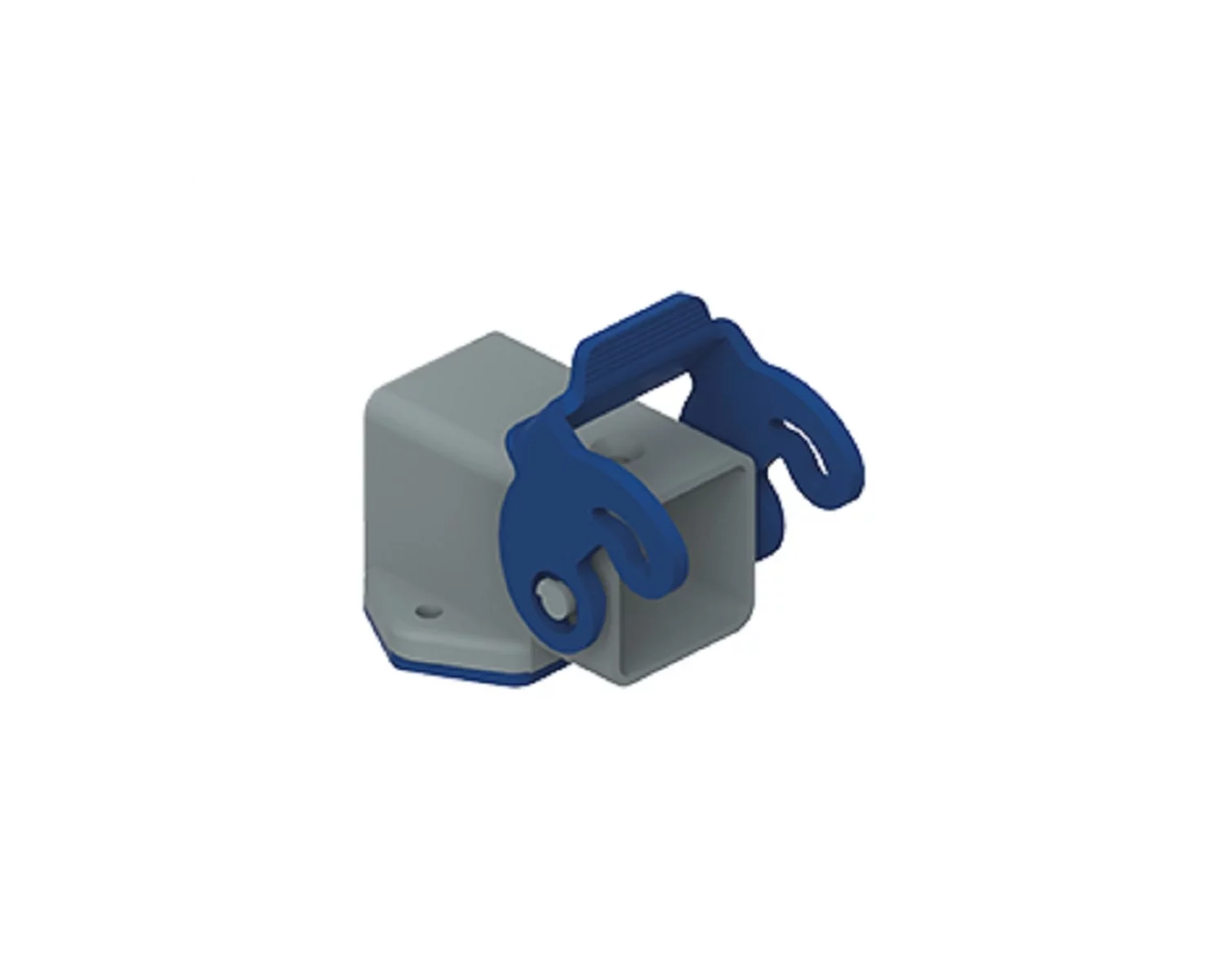

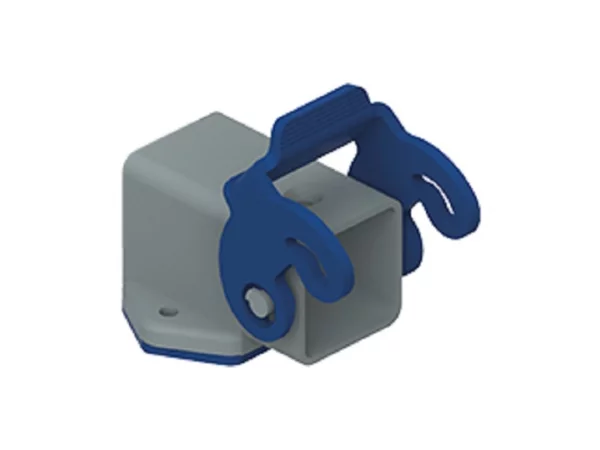

bulkhead mounting housing, angled, size 21.21, CKH plastic, 1 lever, sealing kit
CKH 03 IA
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Angled bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CKH |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 70 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 47.5 mm |
| Width | 30 mm |
| Length | 40.5 mm |
Material
| Material housing | Polyamide |
|---|
