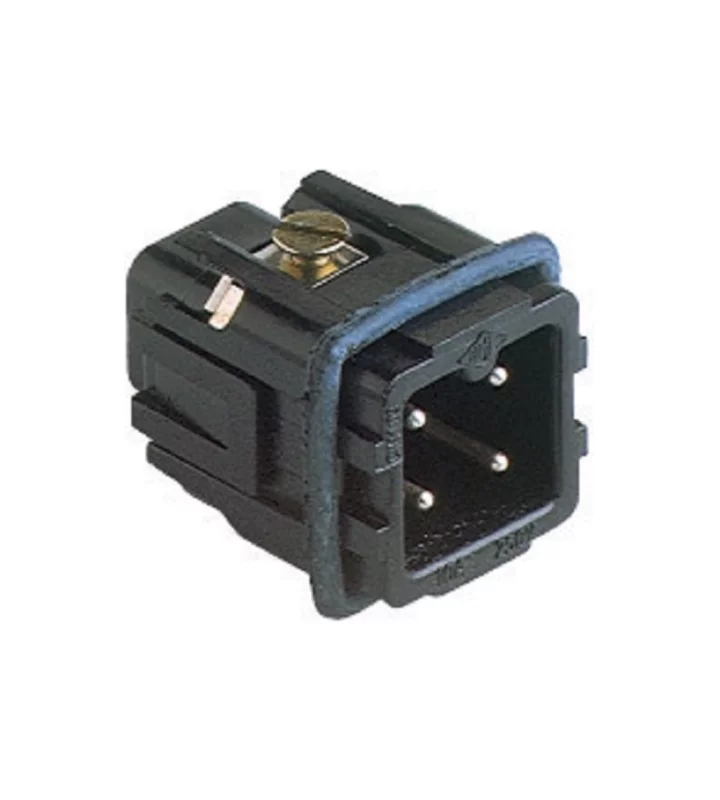

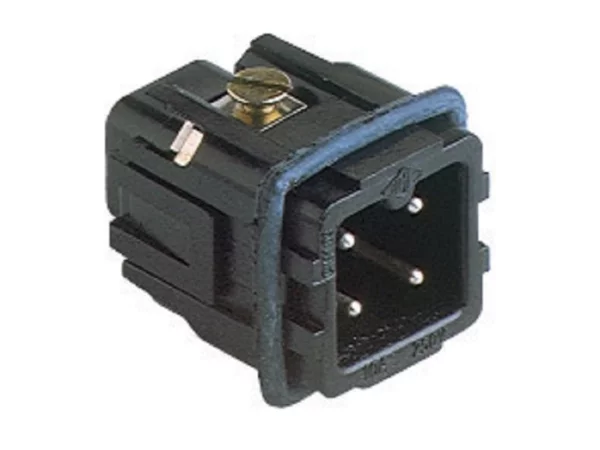

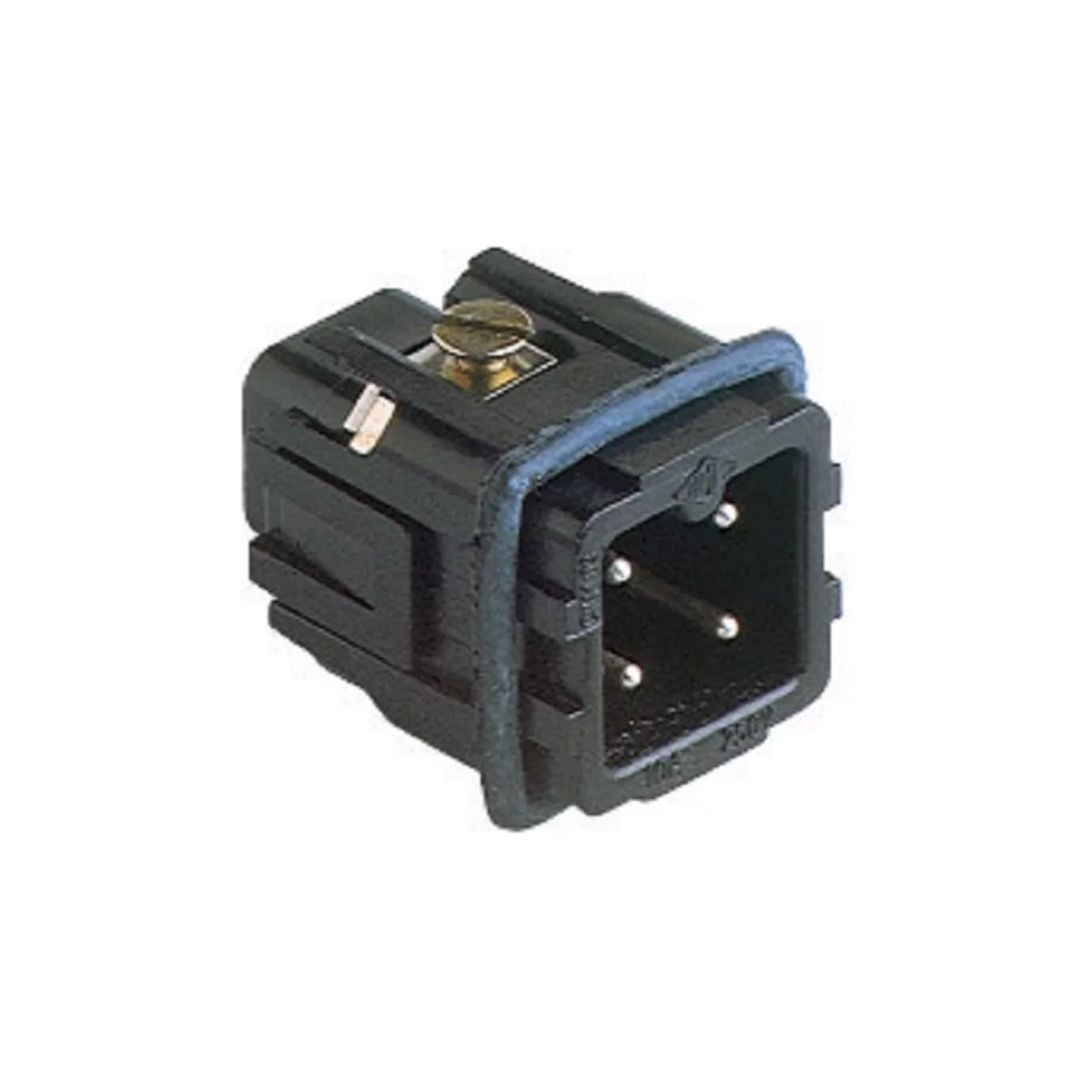

male insert, size 21.21, 3p+PE, silver, screw, 10A, 230/400V, black
CKM 03 N
Stel je connector verder samen
Voeg de gewenste housings toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CK |
| Number of contacts | 3 + PE |
| Number of poles | 3 |
| Connection type | Screw terminal connection |
| Gender | Male |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 100 °C |
| AWG-range 1 | 18 |
| AWG-range 2 | 14 |
| Min. Cross section with end sleeve | 0.75 mm² |
| Max. Cross section with end sleeve | 2.5 mm² |
| Min. Cross section | 0.75 mm² |
| Max. Cross section | 2.5 mm² |
| Colour | Black |
| Extra information | With protective conductor |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 230/400 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V1 |
