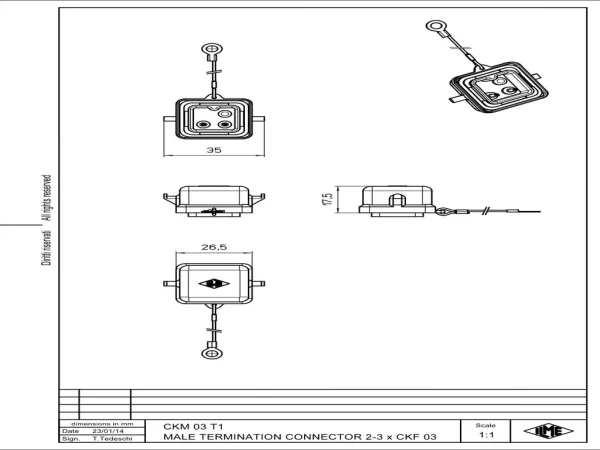

termination connector, size 21.21, plastic, 2 pegs, terminal connection pole no.2+3, eyelet

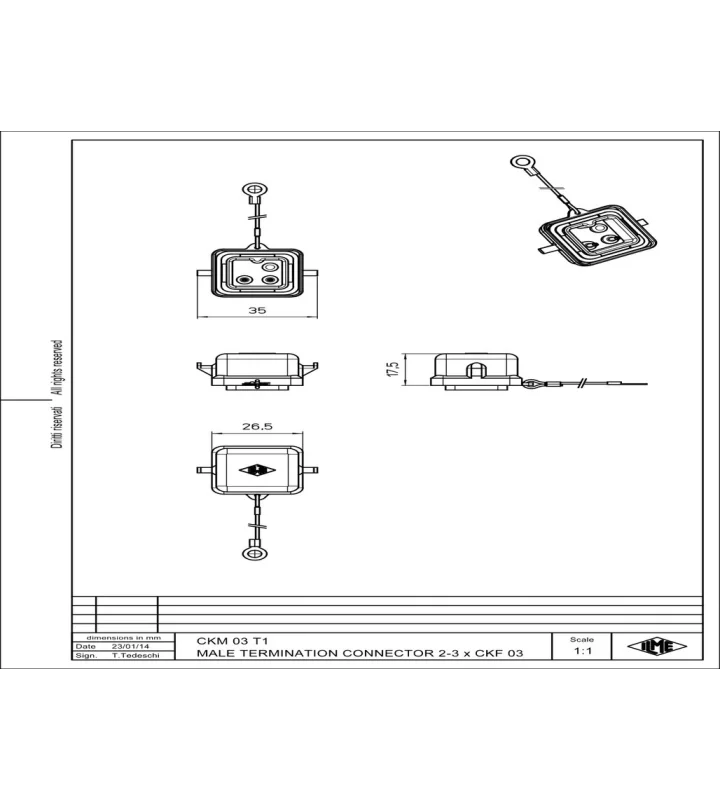

CKM 03 T1
Specificaties
General characteristics
| Accessory type | Termination connector |
|---|---|
| Operation lower temperature | -40 °C |
| Operation upper temperature | 100 °C |
| Protection degree | IP44 |
| Height | 17.5 mm |
| Length | 26.5 mm |
| Closing type | With 2 pegs |
| Nominal rated voltage | 250 V |
| Number of poles | 2 |
| Over voltage category | III |
| Pollution degree | 3 |
| Width | 26.5 mm |
| Contact type (gender) | Male |
| Extra information | With interlocking device |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Rated surge voltage | 4 kV |
Material
| Material contact | Brass |
|---|---|
| Material housing | Plastic |
| Material insert | Thermoplastic |
| Plating of contact | Tin |
