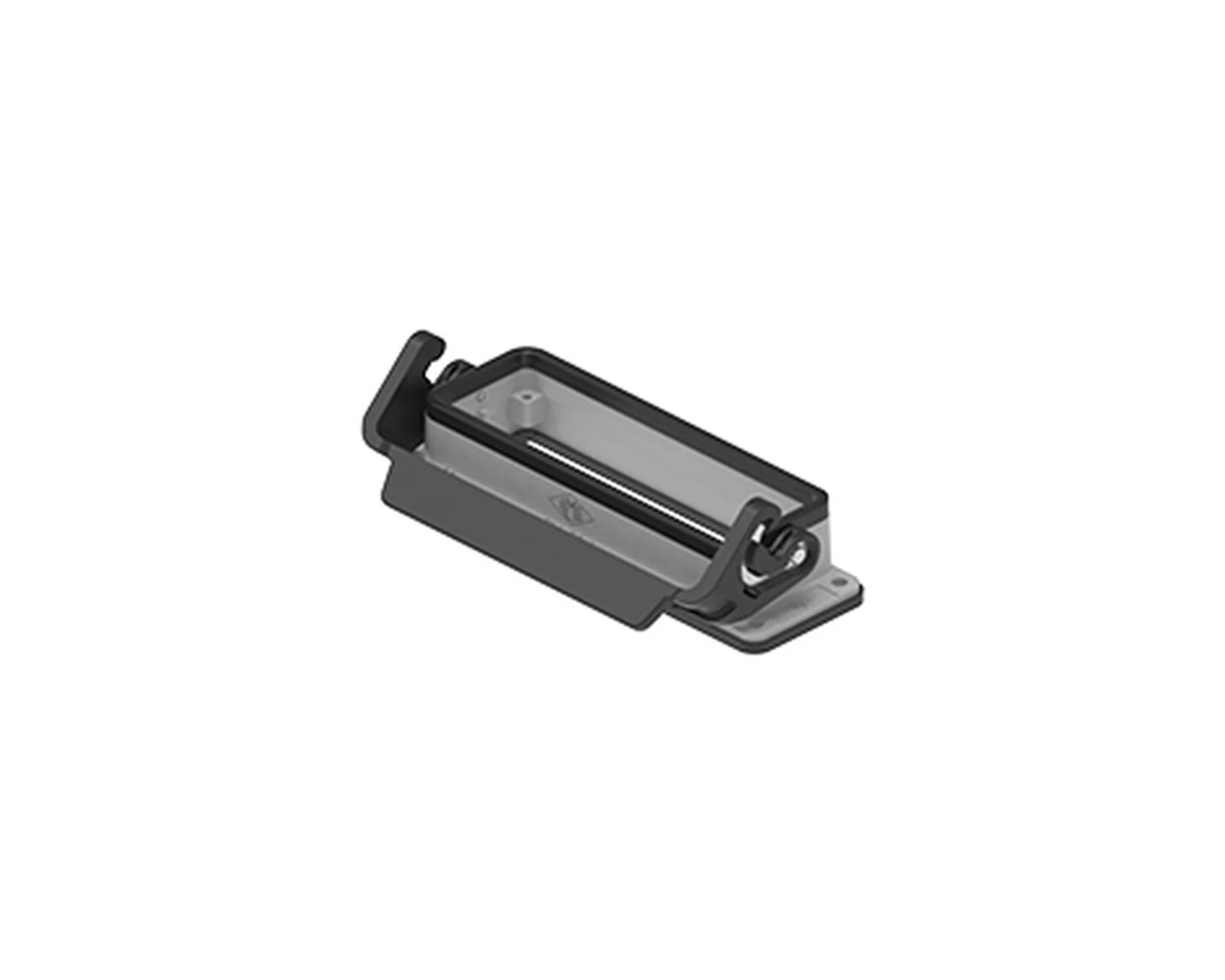

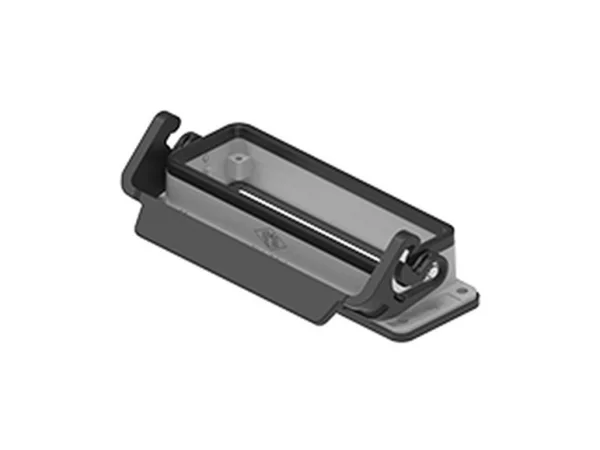

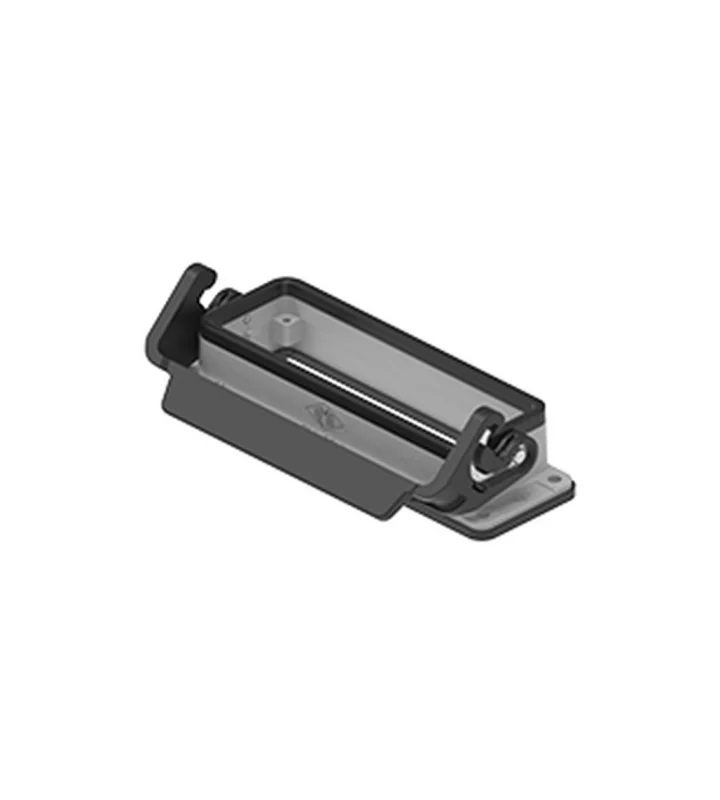

bulkhead mounting housing, size 104.27, IL-BRID stainless steel, 1 lever
CLI 24 L
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 104.27 |
| Enclosure series | IL-BRID |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 48 mm |
| Width | 45.5 mm |
| Length | 142.5 mm |
Material
| Material housing | Stainless steel |
|---|
