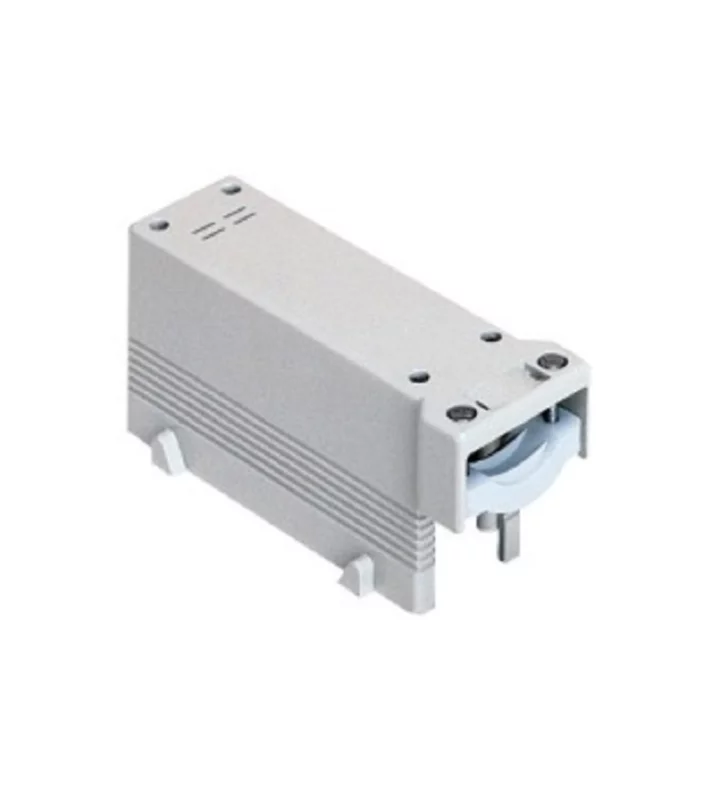

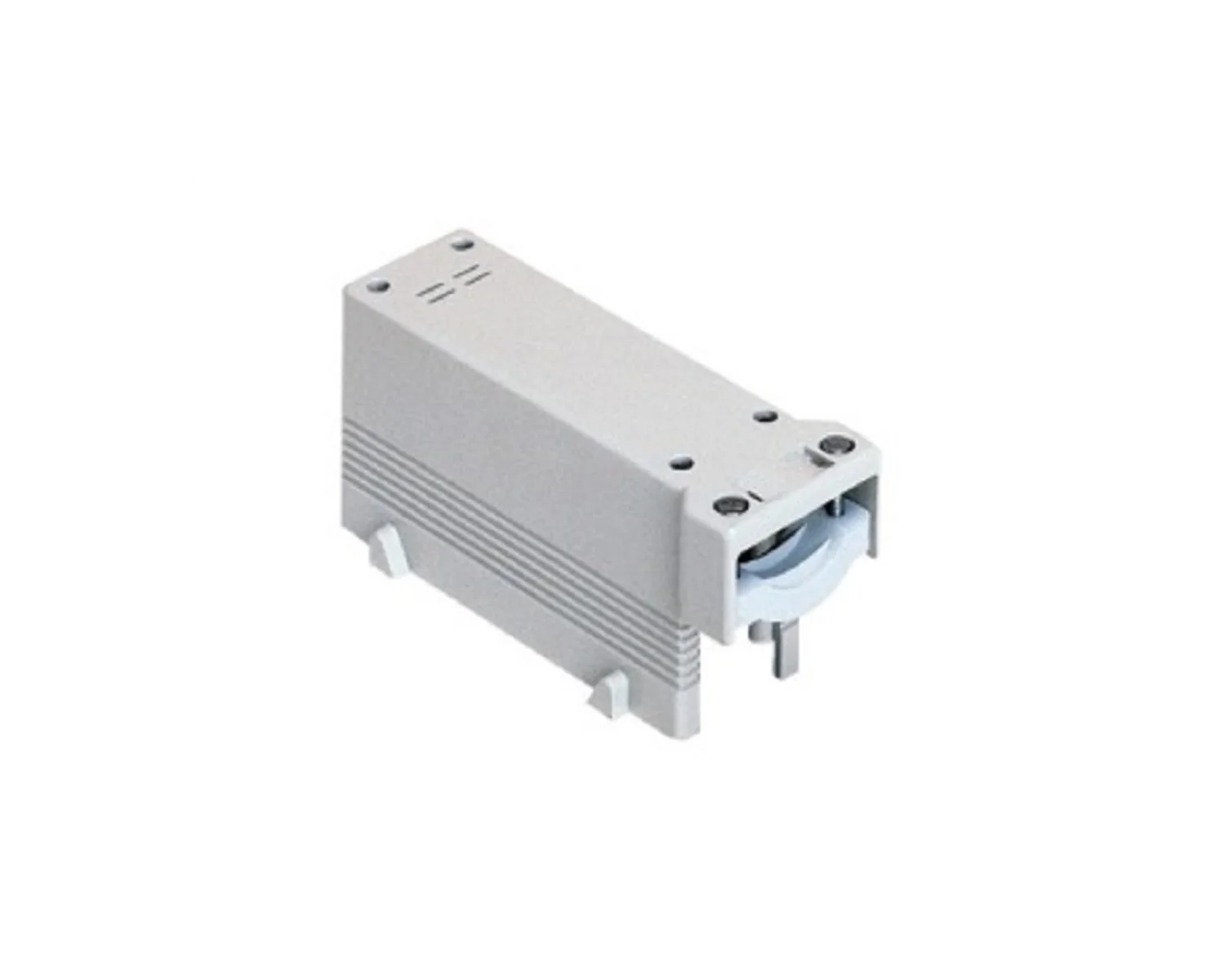

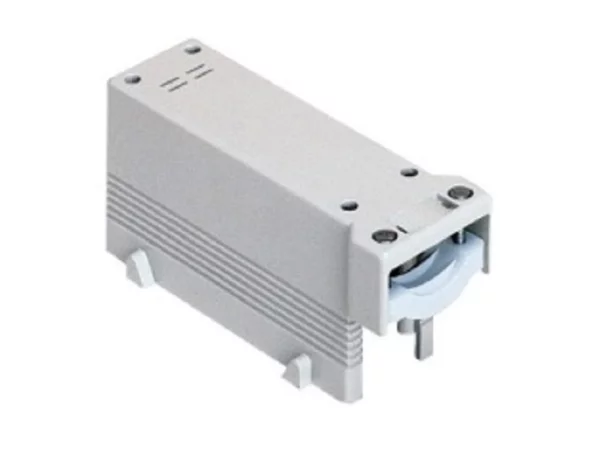

Insulating housing, size 77.27, COB plastic, 4 pegs, side cable entry with cable clamp, with strain relief

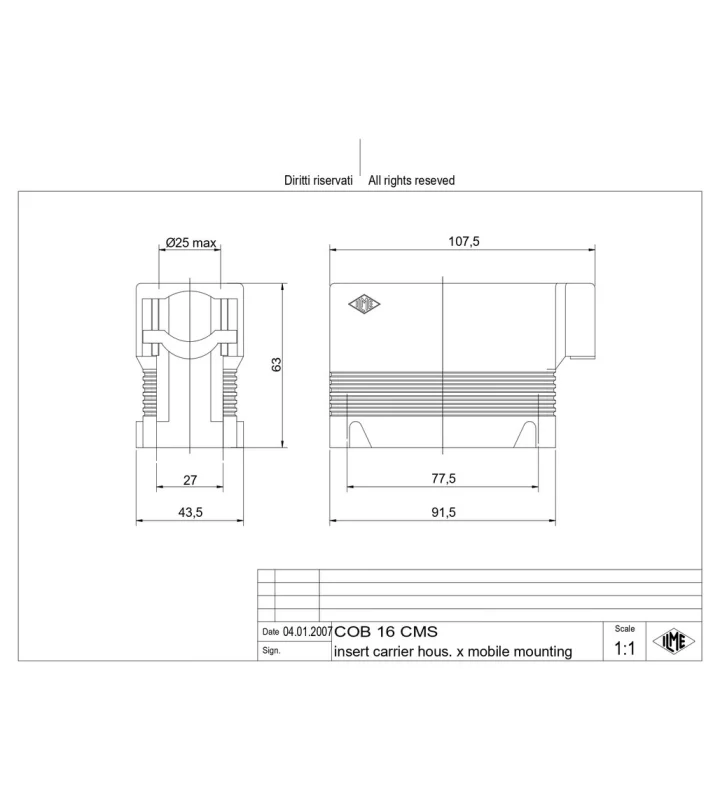

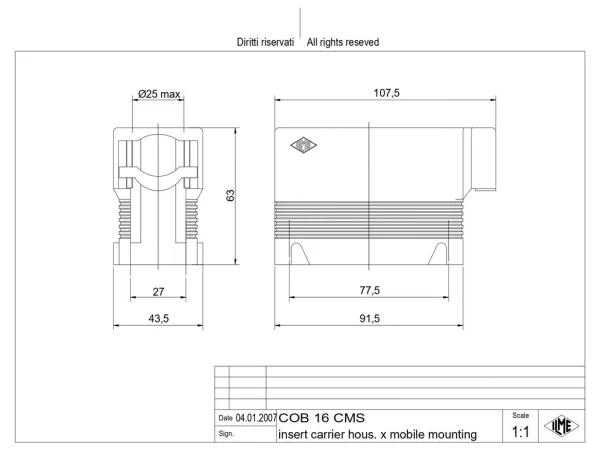

COB 16 CMS
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 77.27 |
| Enclosure series | COB panel supports |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP20 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Position cable feed | Side entry |
| Height | 63 mm |
| Width | 43.5 mm |
| Length | 91.5 mm |
Material
| Material housing | Self-extinguishing thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
| Extra information | With interlocking device |
