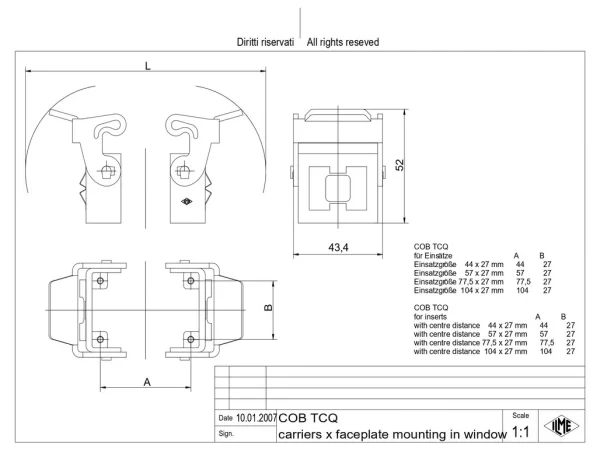

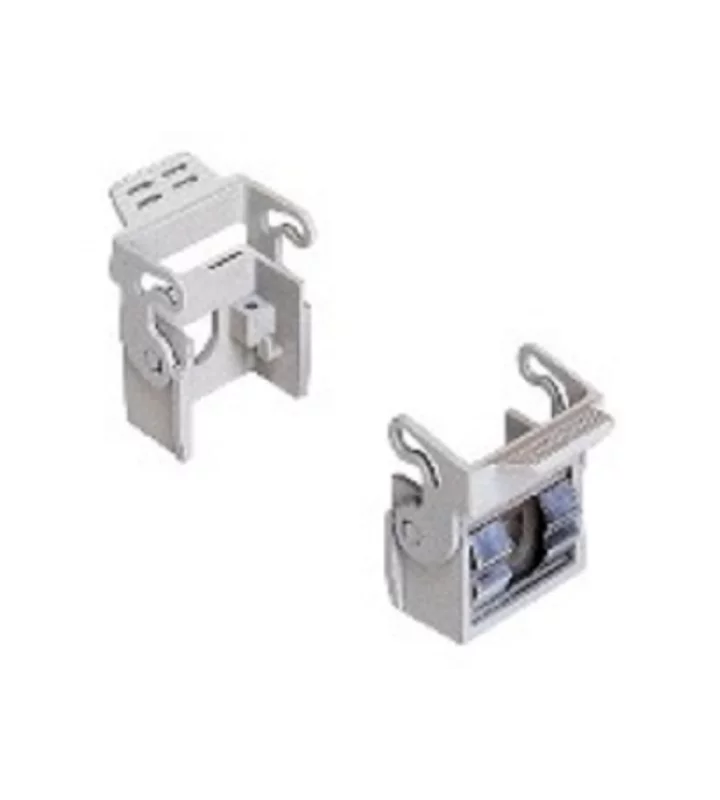

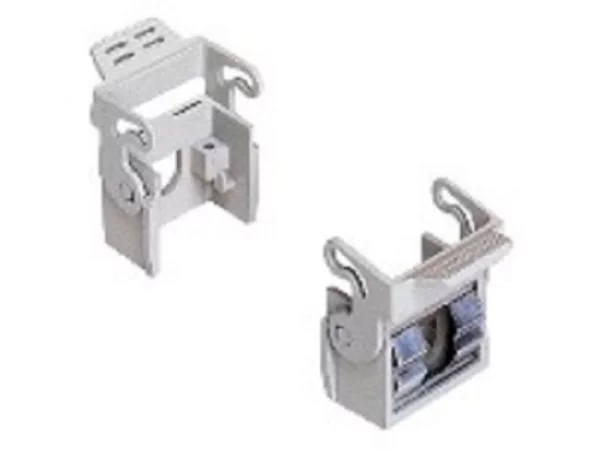

connector carrier, COB plastic, 2 levers, for mounting in cut-outs
COB TCQ
Specificaties
General characteristics
| Accessory type | Carrier |
|---|---|
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Colour | Grey |
| Height | 32 mm |
| Length | 133 mm |
| Width | 43.5 mm |
| Remark | For inserts with 27 mm screw fixing centre distance (short side) |
Material
| Inflammability class of insulation material acc. with UL94 | V1 |
|---|
