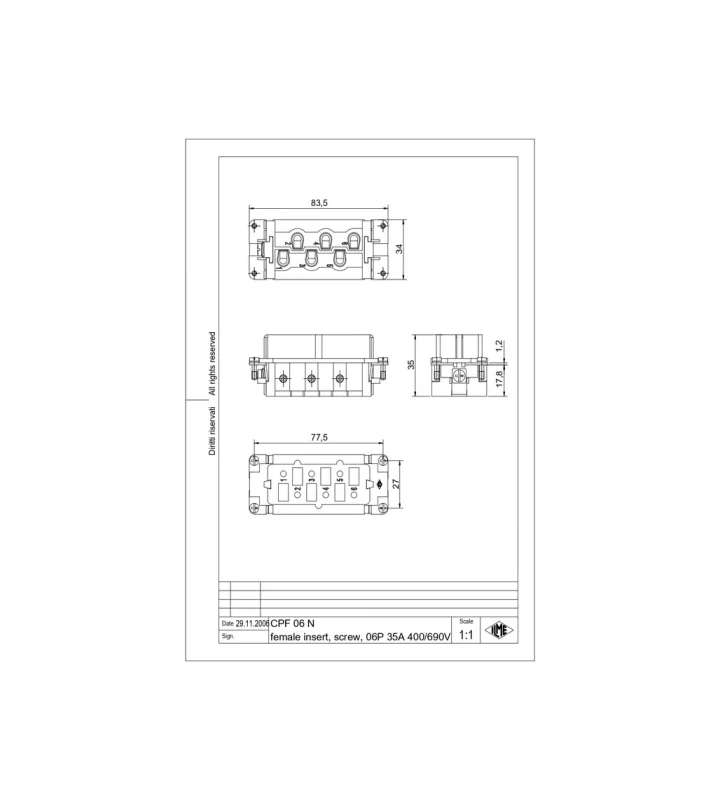

female insert, 6p+PE, silver, screw, 35A, 400, 690V, for size 77.62, black
CPF 06 N
Stel je connector verder samen
Voeg de gewenste housings toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CP |
| Number of contacts | 6 + PE |
| Number of poles | 12 |
| Connection type | Screw terminal connection |
| Gender | Female |
| Size | 77.62 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 18 |
| AWG-range 2 | 10 |
| Min. Cross section without end sleeve | 1.5 mm² |
| Max. Cross section without end sleeve | 6 mm² |
| Min. Cross section | 0.75 mm² |
| Max. Cross section | 6 mm² |
| Colour | Black |
| Extra information | With protective conductor |
Electrical parameters
| Max. rated current | 35 A |
|---|---|
| Nominal rated voltage | 400/690 V |
| Over voltage category | III |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
