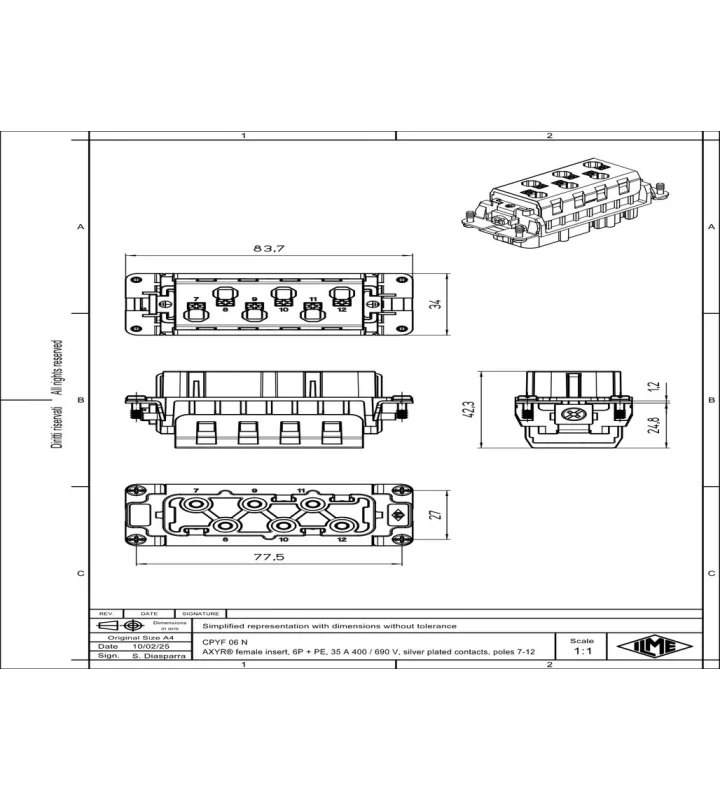

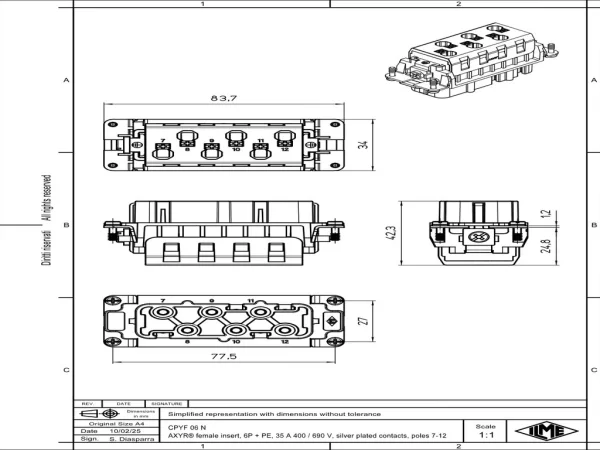

female insert, size 77.27, 6+PE, AXYR® push-in connection, 35A, 400/690V, no.7-12
CPYF 06 N
Stel je connector verder samen
Voeg de gewenste housings toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CPY |
| Number of contacts | 12 + PE (7-12) |
| Number of poles | 12 + PE |
| Connection type | AXYR® high density spring terminal connection without tools |
| Gender | Female |
| Size | 77.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 16 |
| AWG-range 2 | 10 |
| Min. Cross section | 1.5 mm² |
| Max. Cross section | 6 mm² |
| Pin numbers | 7-12 |
| Colour | Grey |
| Remark | To be ordered with CPYF 06 |
Electrical parameters
| Max. rated current | 35 A |
|---|---|
| Nominal rated voltage | 400/690 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Polycarbonate (PC) |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
