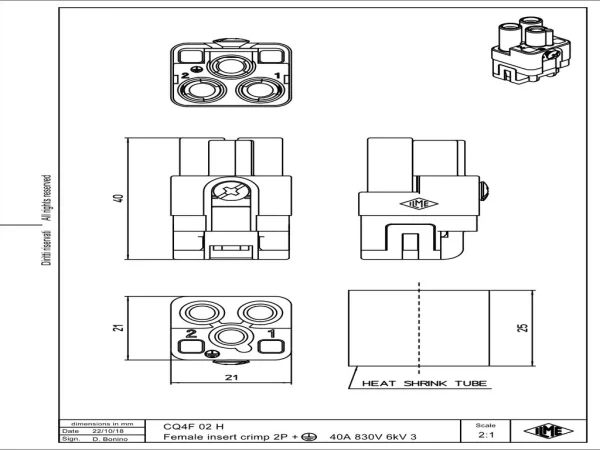

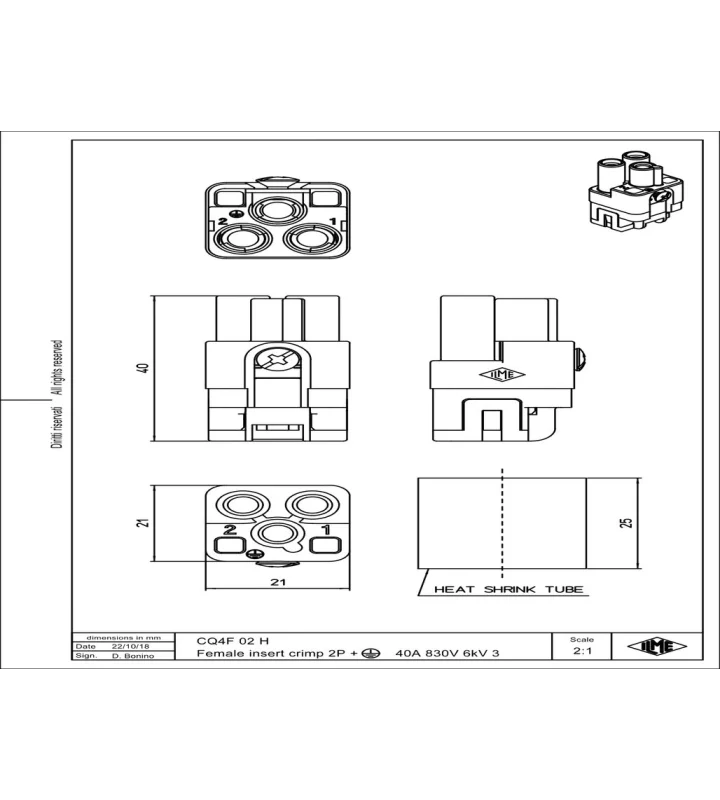

female insert, size 21.21, 2p+PE, crimp, 40A, 830V, with heat-shrinkable tube
CQ4F 02 H
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CQ4 |
| Number of contacts | 2 + PE |
| Number of poles | 2 + PE |
| Connection type | Crimp connection |
| Gender | Female |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 16 |
| AWG-range 2 | 10 |
| Min. Cross section | 1.5 mm² |
| Max. Cross section | 6 mm² |
| Diameter male contact | 4 mm |
| Colour | Grey |
Electrical parameters
| Max. rated current | 40 A |
|---|---|
| Nominal rated voltage | 830 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
