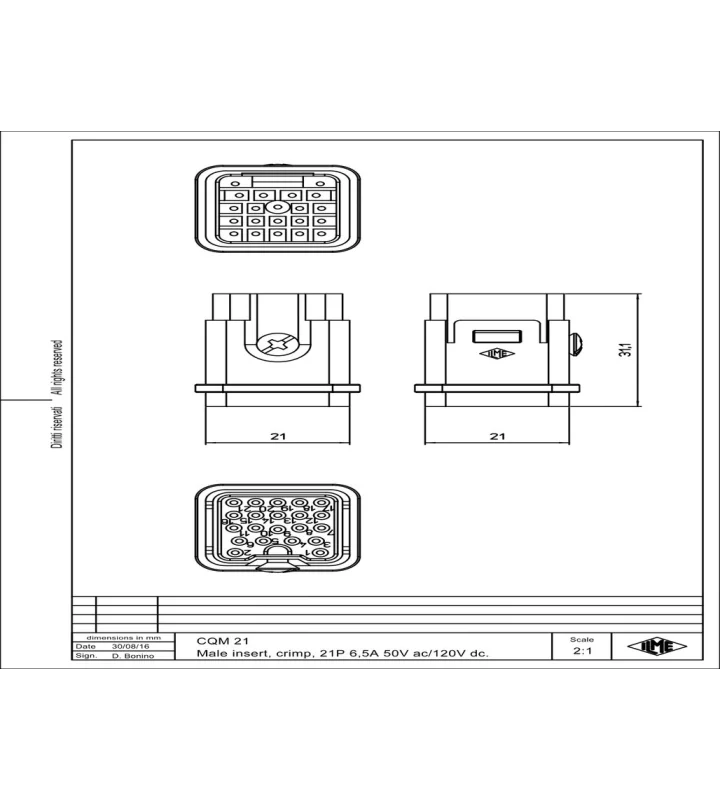

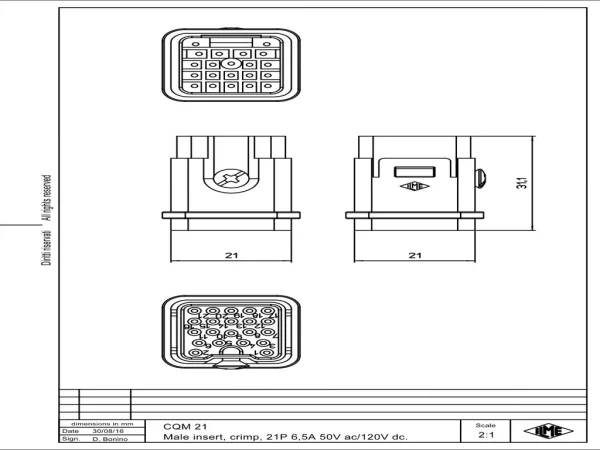

male insert, size 21.21, 21p, crimp, 6,5A, 50V ac/120V dc
CQM 21
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CQ |
| Number of contacts | 21 |
| Number of poles | 21 |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 28 |
| AWG-range 2 | 20 |
| Min. Cross section | 0.08 mm² |
| Max. Cross section | 0.52 mm² |
| Diameter male contact | 1 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 6.5 A |
|---|---|
| Nominal rated voltage | 50 V |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
