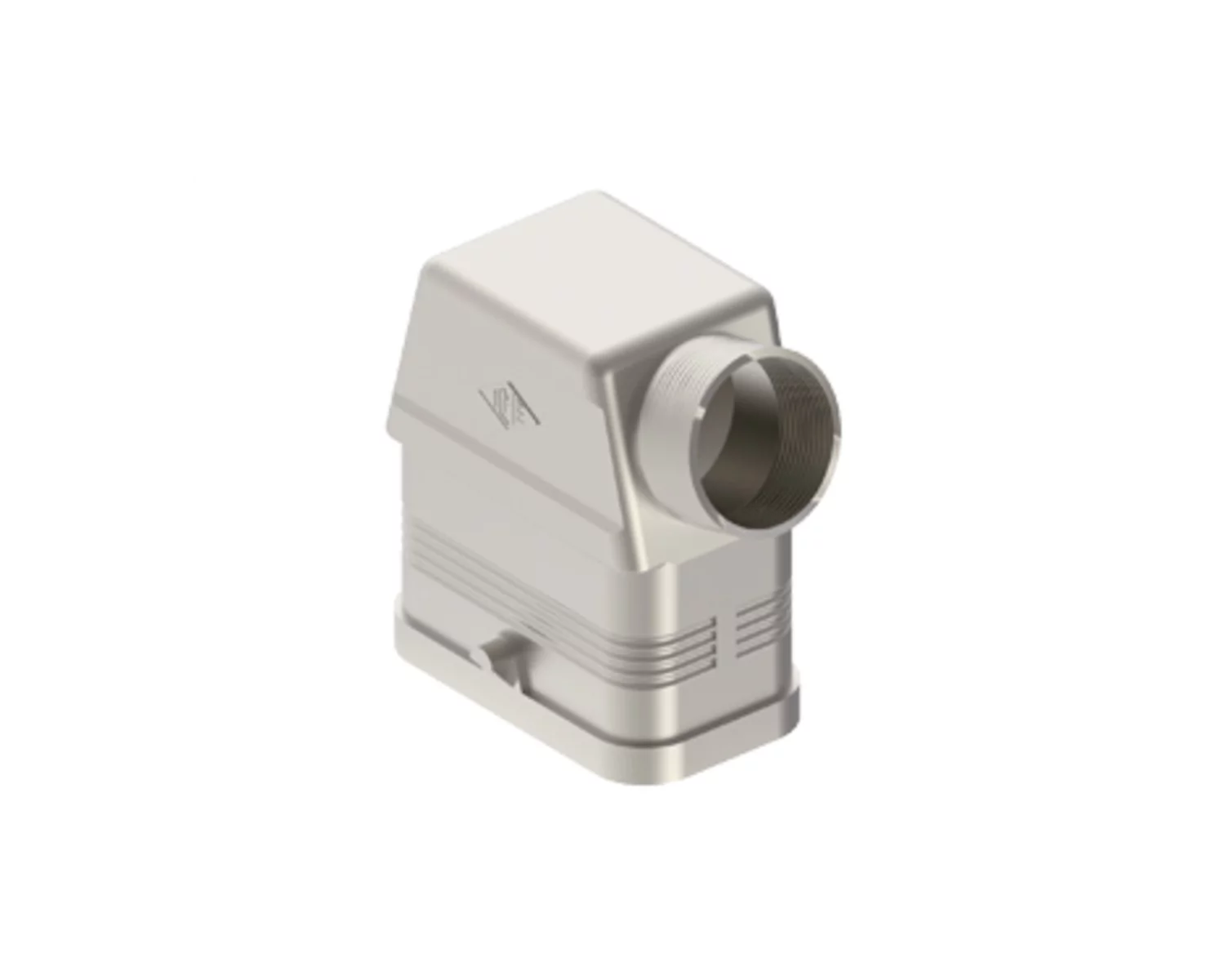

hood, size 32.13, EMC plastic, 2 pegs, 1xPG16 side
CQS 08 VA
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 32.13 |
| Enclosure series | EMC |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | Pg16 |
| Position cable feed | Side entry |
| Height | 54 mm |
| Width | 28.7 mm |
| Length | 48 mm |
| Remark | PG male thread on enclosure exterior |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Metallized |
| Extra information | Corrosion resistant,EMC Version,UV resistant,With interlocking device |
