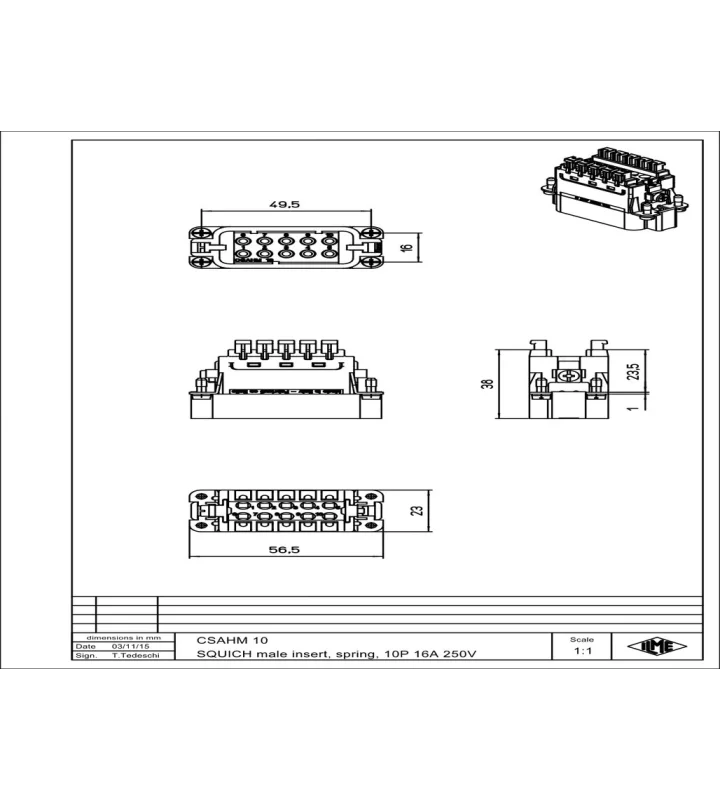

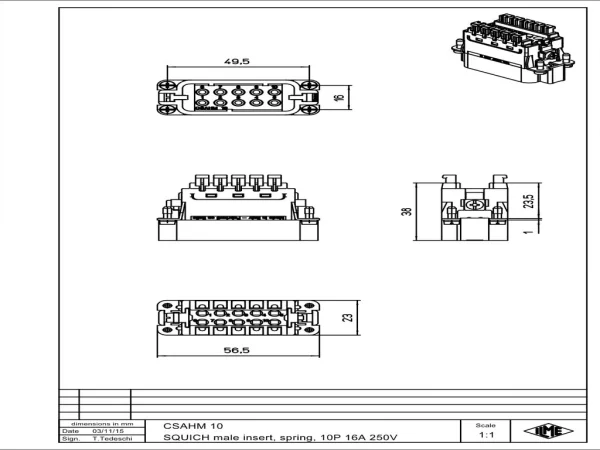

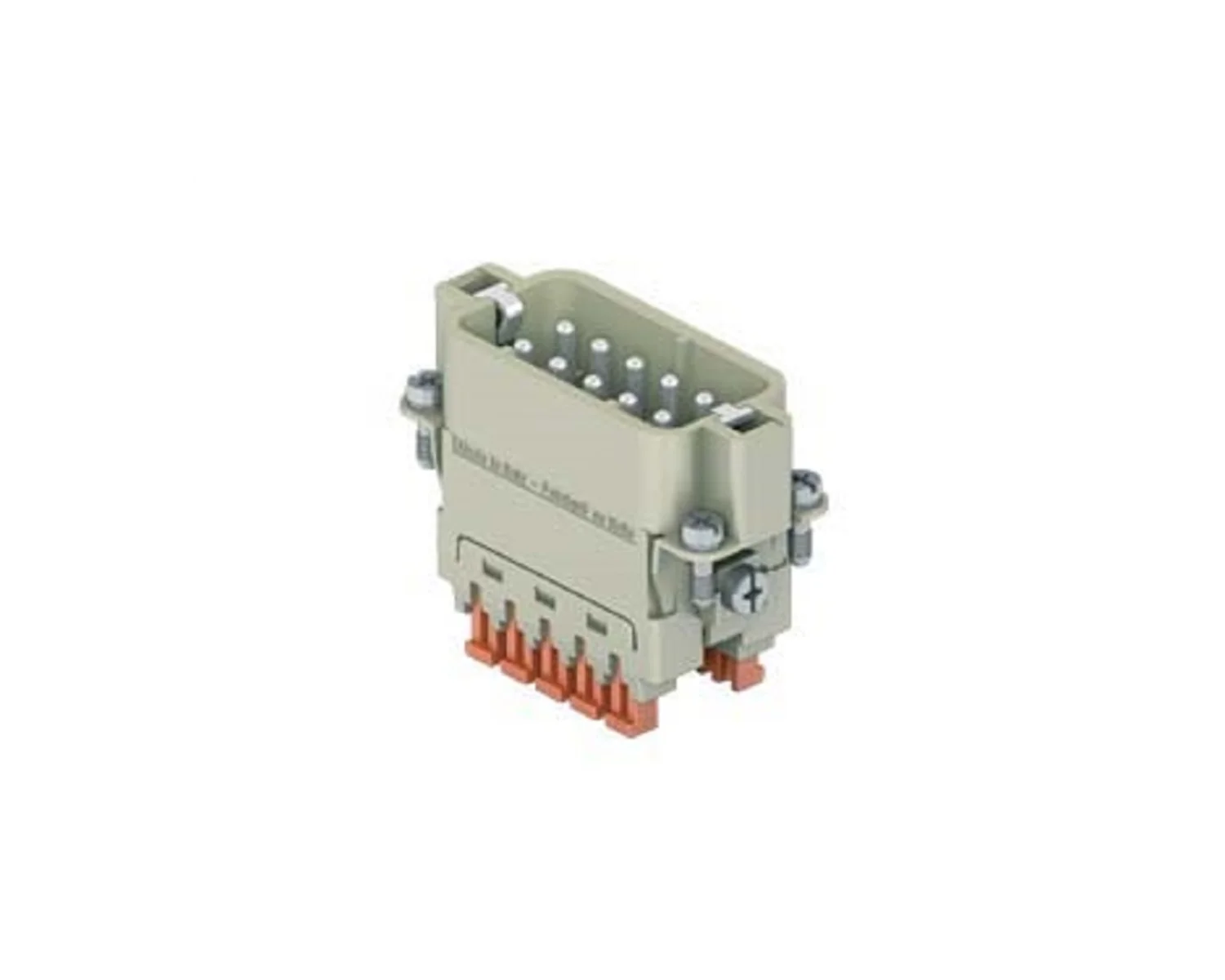

male insert, size 49.16, 10p+PE, silver, SQUICH, 16A, 250V
CSAHM 10
Stel je connector verder samen
Voeg de gewenste housings en accessories toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CSAH |
| Number of contacts | 10 + PE |
| Number of poles | 10 |
| Connection type | SQUICH® spring terminal connection without tools |
| Gender | Male |
| Size | 49.16 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section with end sleeve | 0.14 mm² |
| Max. Cross section with end sleeve | 1.5 mm² |
| Min. Cross section without end sleeve | 0.14 mm² |
| Max. Cross section without end sleeve | 2.5 mm² |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Colour | Grey |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 250 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
