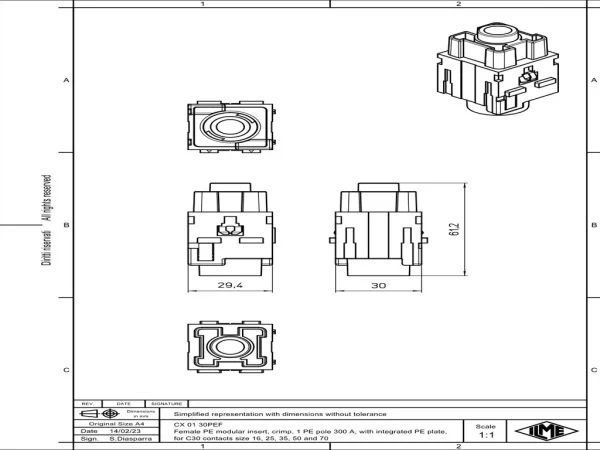

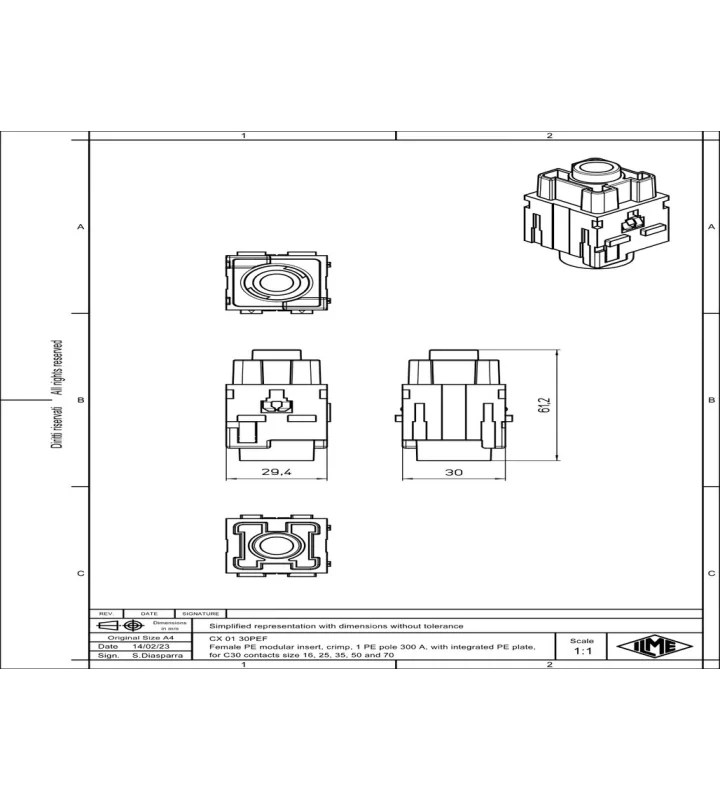

female insert, MIXO, 2MU, 1PE, crimp, 300A
CX 01 30PEF
Specificaties
General characteristics
|
Product type |
Modular insert
|
|
Insert series |
Mixo
|
|
Number of contacts |
1 PE
|
|
Connection type |
Crimp connection
|
|
Gender |
Female
|
|
Number of module slots |
2
|
|
Operation lower temperature |
-40 °C
|
|
Operation upper temperature |
125 °C
|
|
AWG-range 1 |
6
|
|
AWG-range 2 |
2/0
|
|
Min. Cross section |
16 mm²
|
|
Max. Cross section |
70 mm²
|
|
Diameter male contact |
9.5 mm
|
|
Colour |
Grey
|
Material
|
Material insert |
Polycarbonate (PC)
|
|
Material contact |
Copper alloy
|
|
Plating of contact |
Silver
|
|
Inflammability class of insulation material acc. with UL94 |
V0
|
