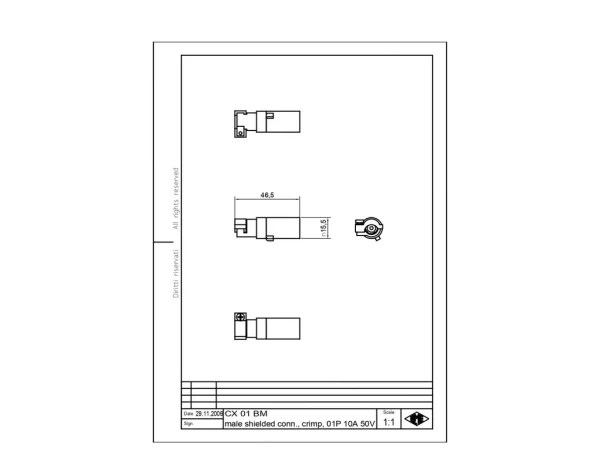

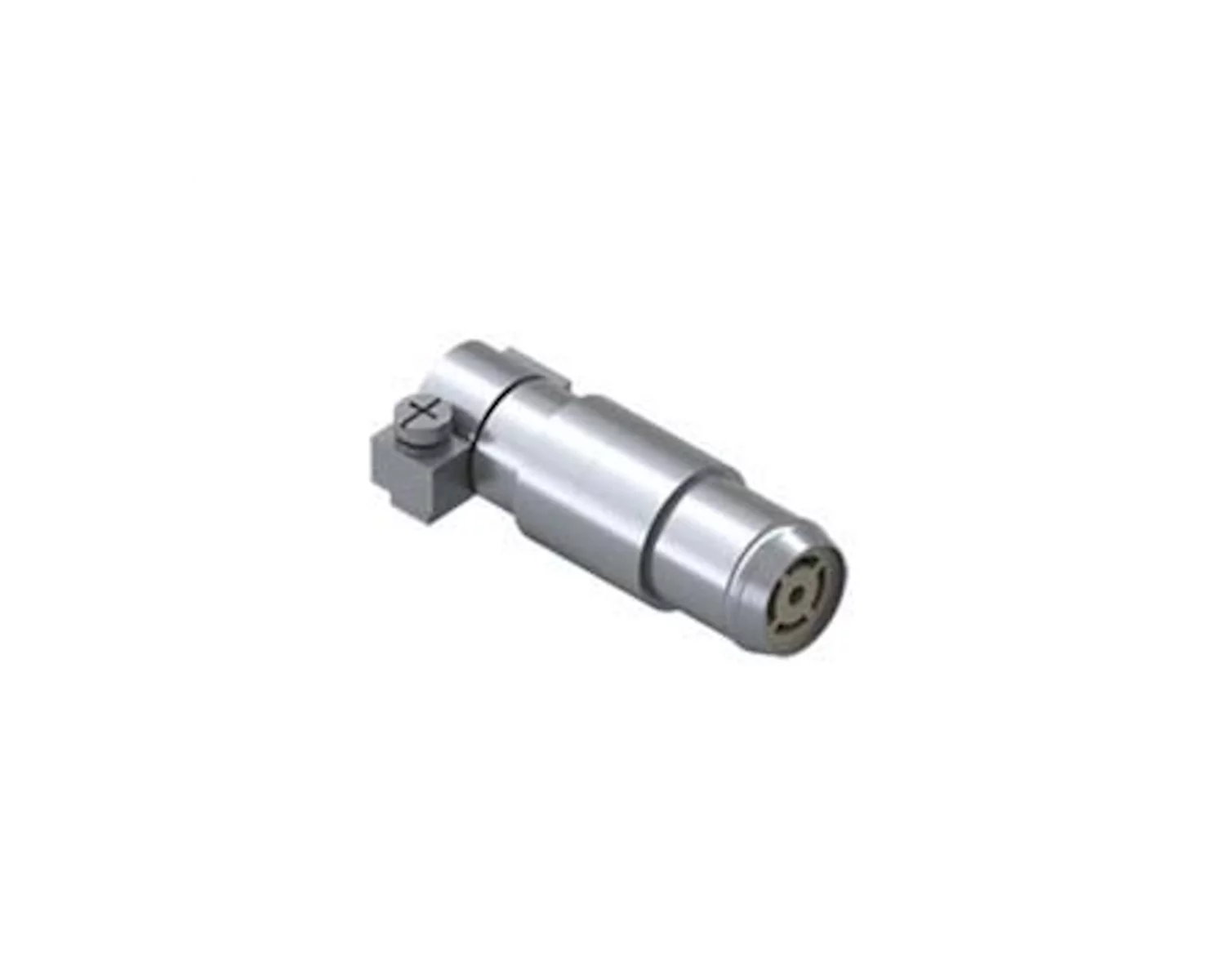

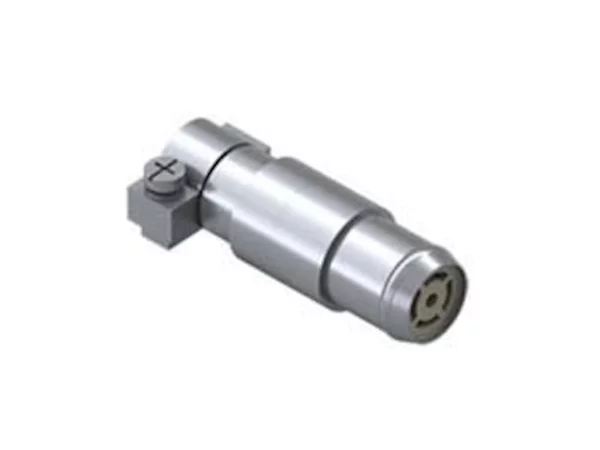

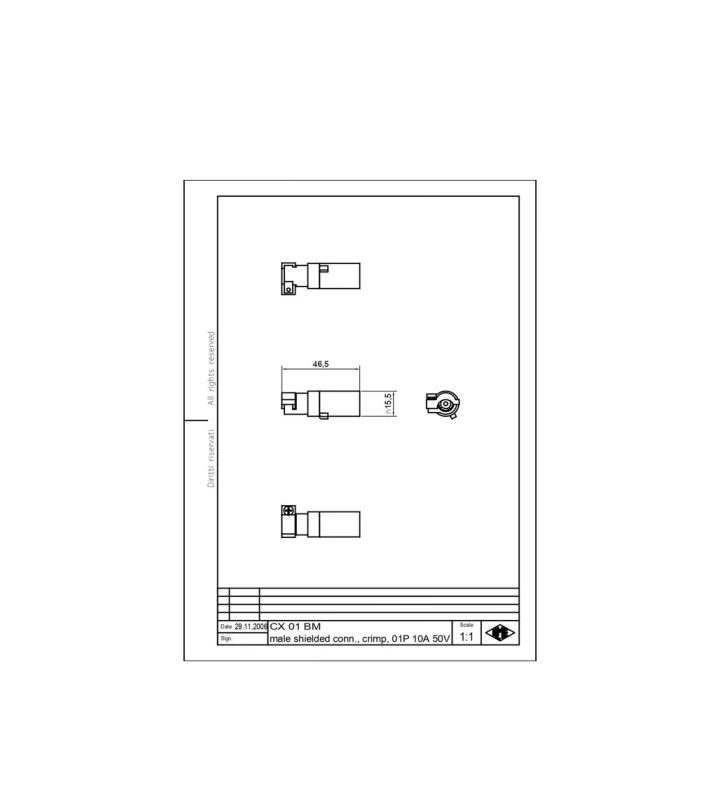

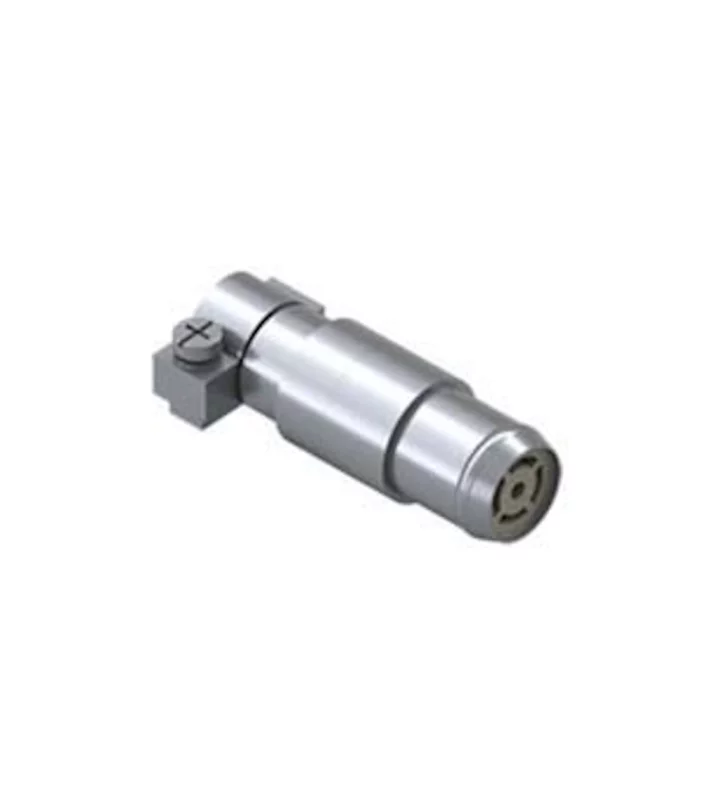

male shielded connector, MIXO, 1p, crimp, 10A, 50V, COAX 75ohm
CX 01 BM
Stel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Bus |
| Number of contacts | 1 |
| Connection type | Coaxial |
| Gender | Male |
| Number of module slots | 2 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 85 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark 2 | To be used with CX 02 BM |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | III |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
