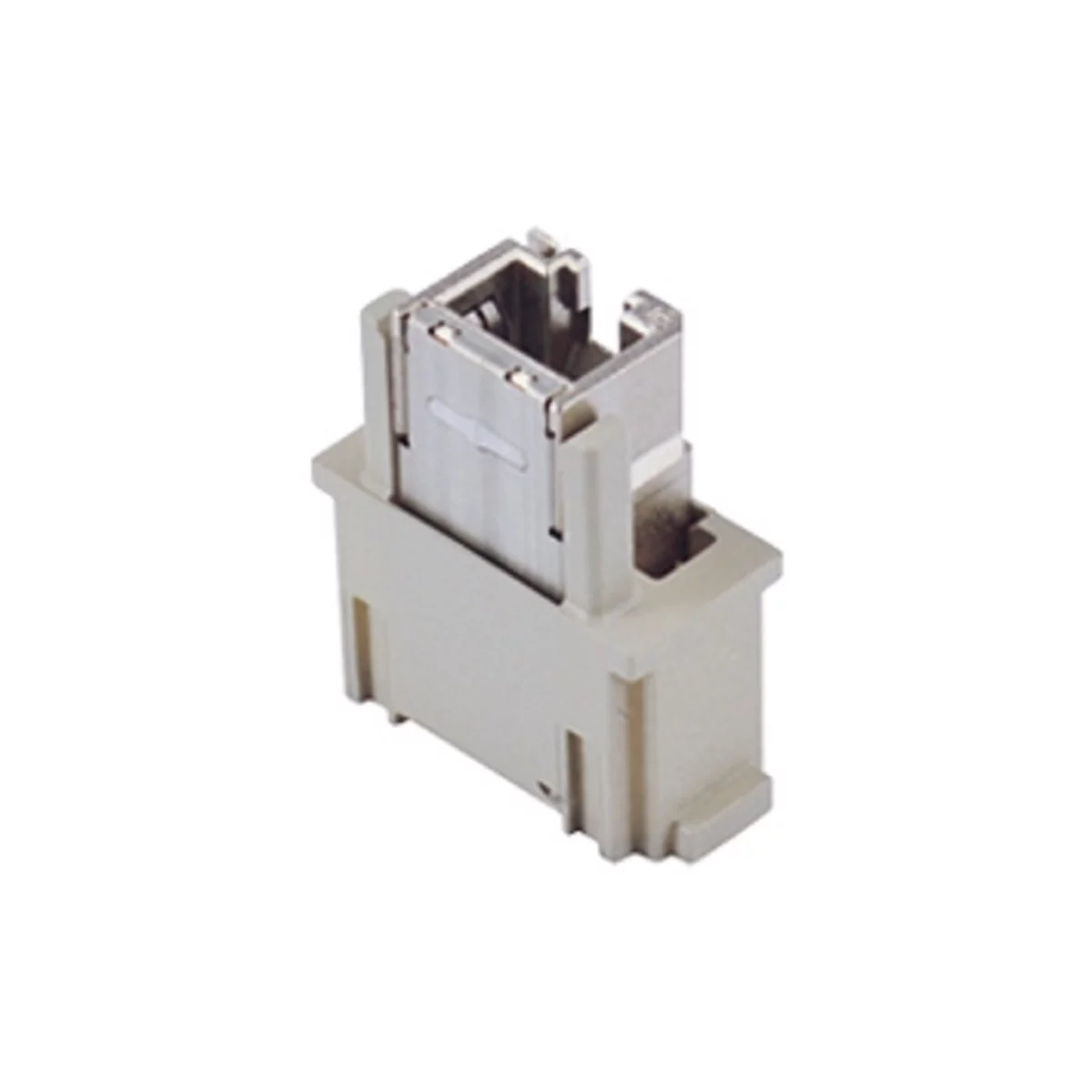

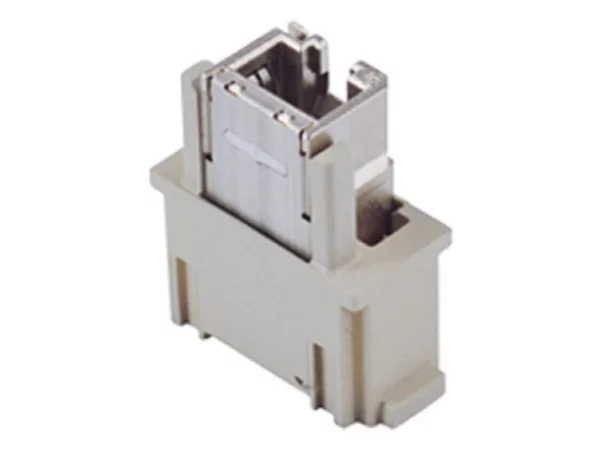

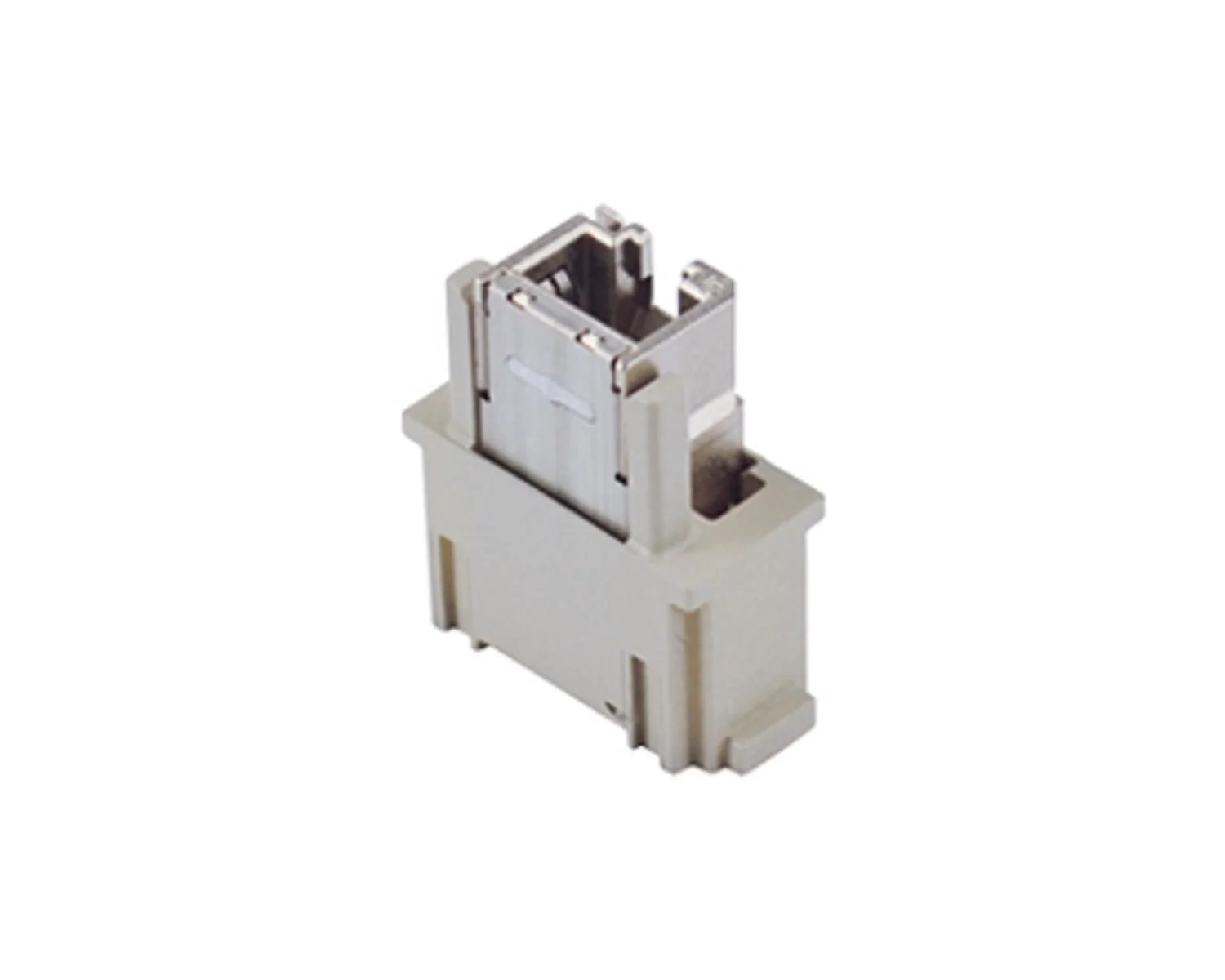

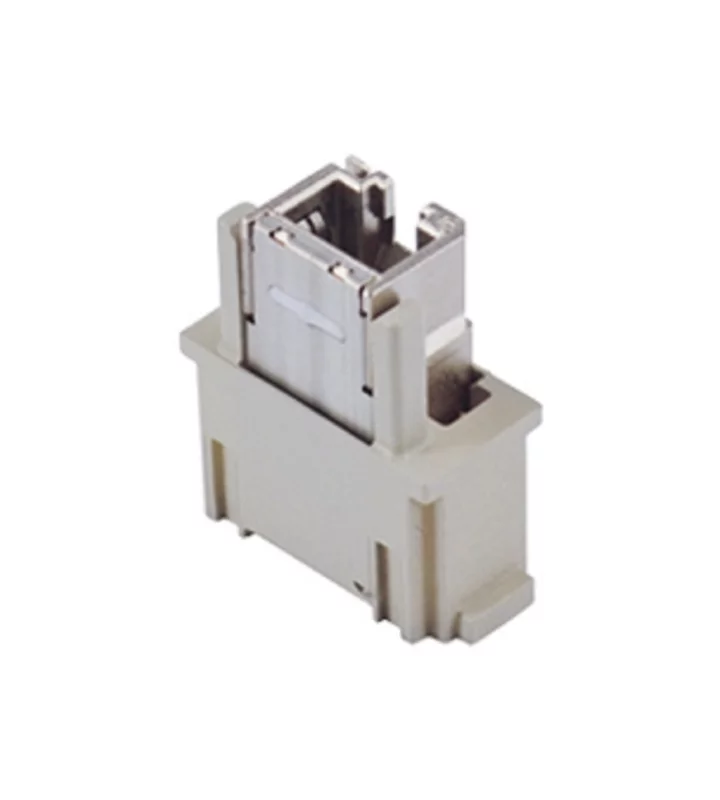

female insert, MIXO, 1MU, 8 - RJ45, 1A, 50V, RJ45

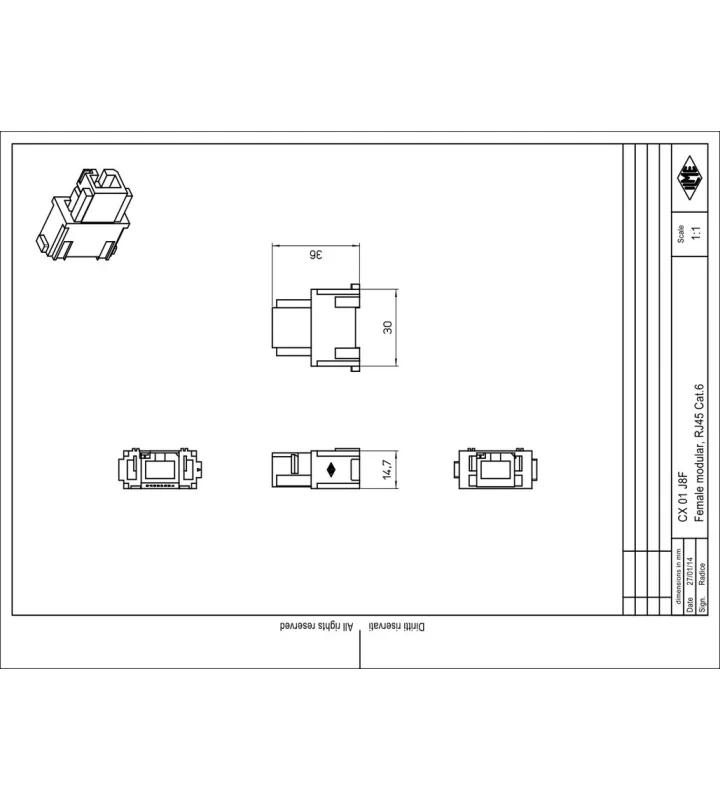

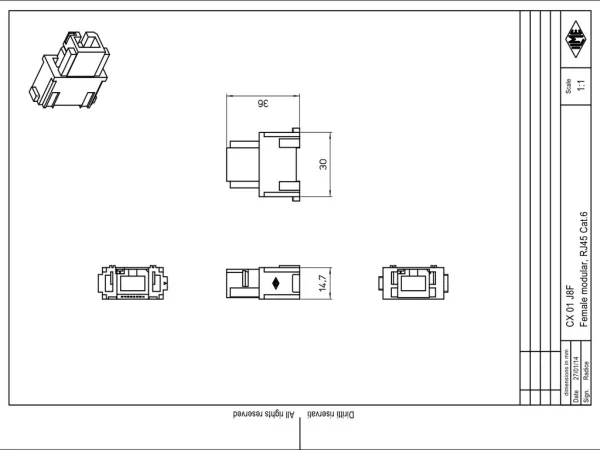

CX 01 J8F
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 8 - RJ45 |
| Connection type | RJ45 |
| Gender | Female |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Min. Cross section without end sleeve | 0.4 mm² |
| Max. Cross section without end sleeve | 0.51 mm² |
| Colour | Grey |
| Extra information | With wire protection |
| Remark | To be used on high enclosures or bulkhead housings only |
Electrical parameters
| Max. rated current | 1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | III |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
