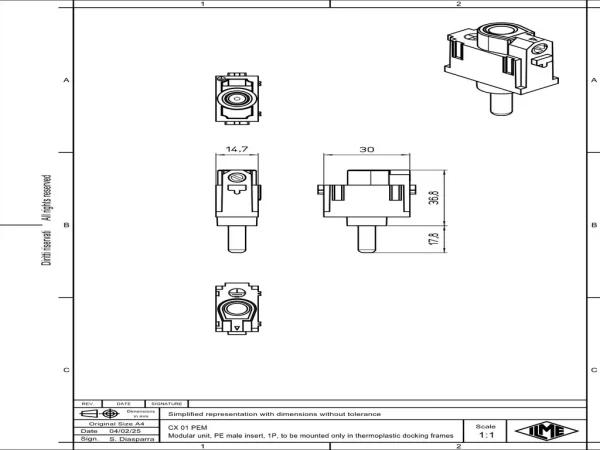

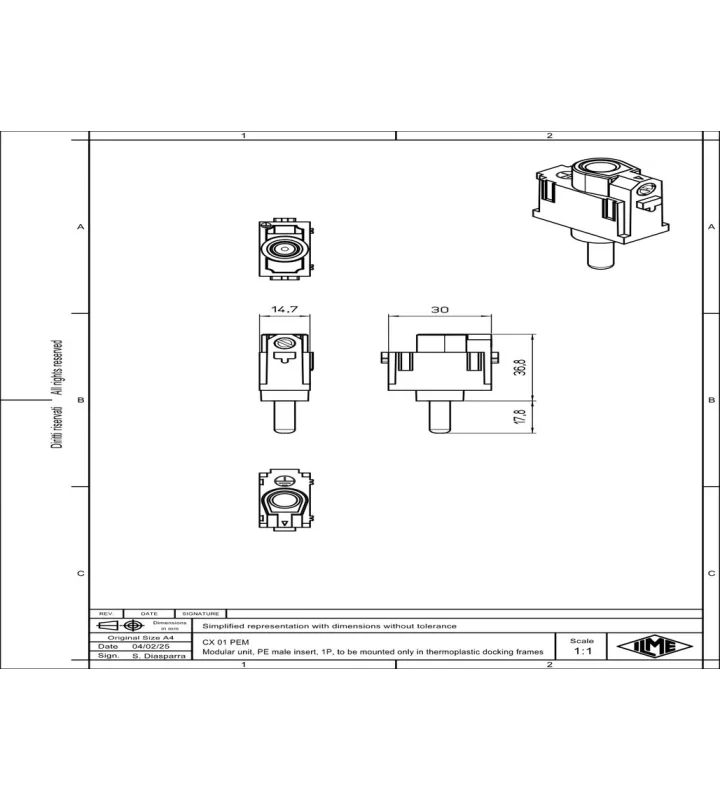

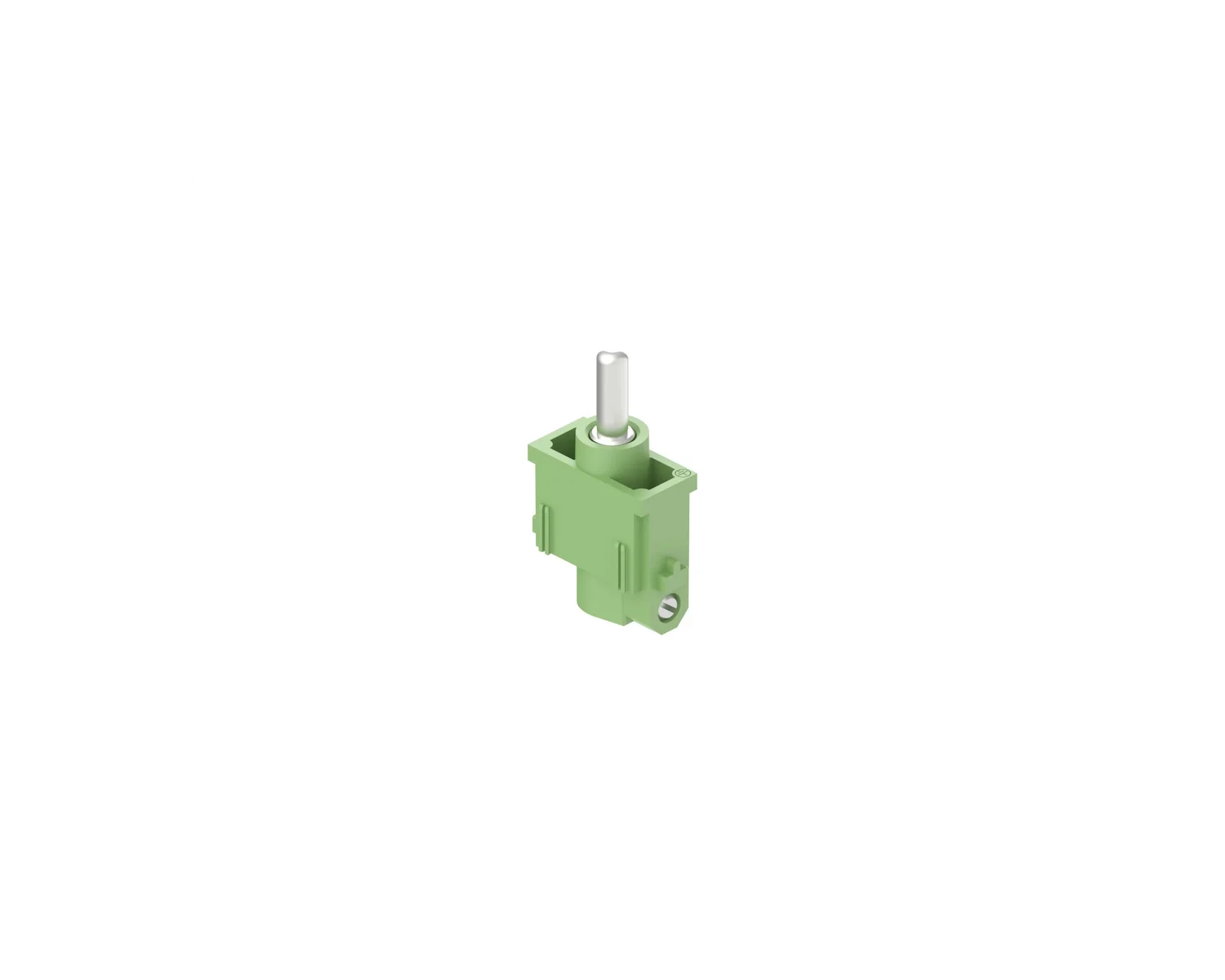

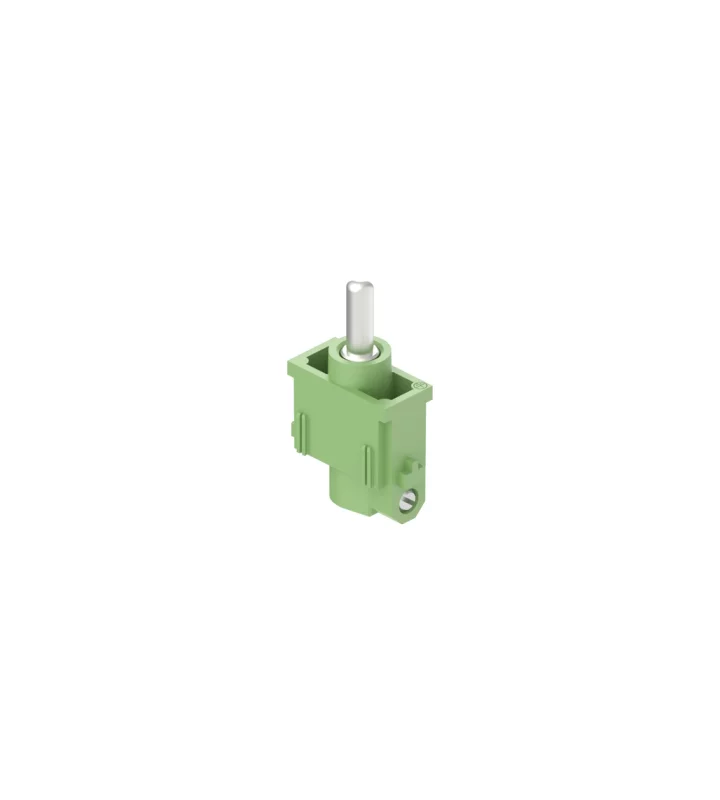

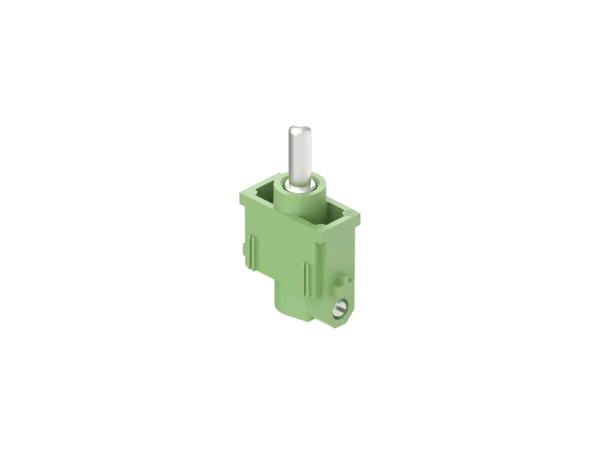

male insert, MIXO, 1MU, screw
CX 01 PEM
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 1 |
| Connection type | Screw terminal connection |
| Gender | Male |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Colour | Green |
Material
| Material insert | Polycarbonate (PC) |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
