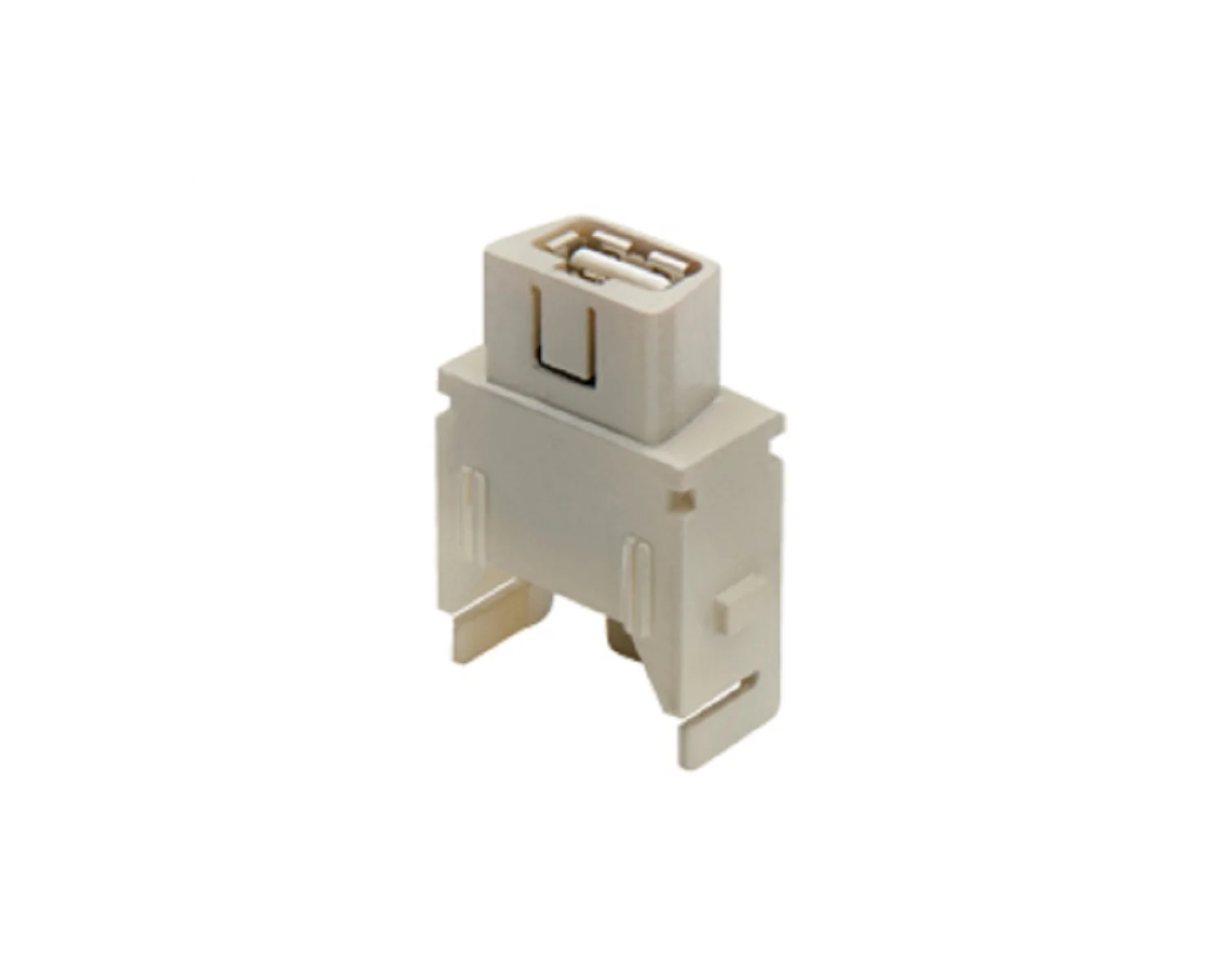

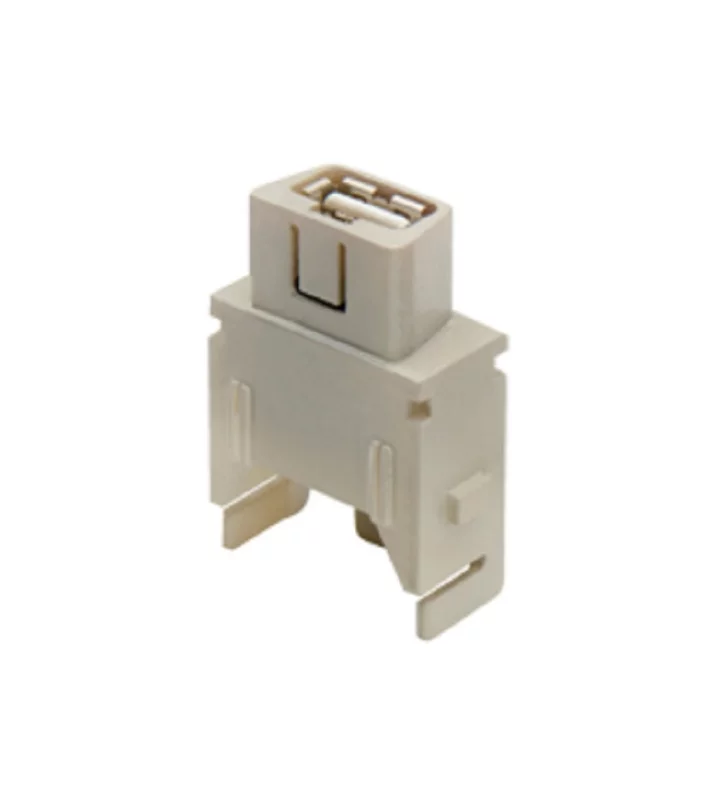

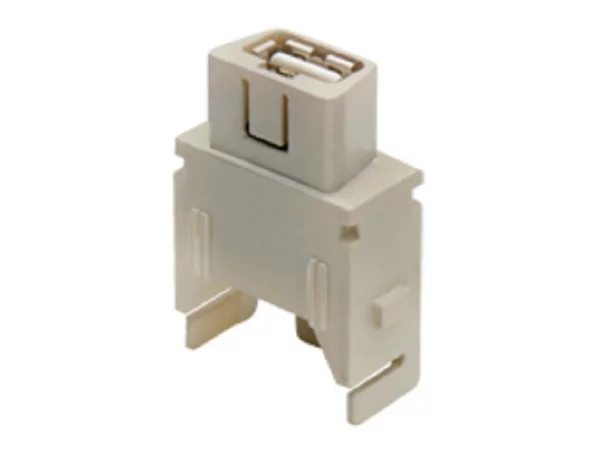

female insert, MIXO, 1MU, for USB patch cable CW 2 UAM
CX 01 UF
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 1 USB |
| Connection type | USB |
| Gender | Female |
| Number of module slots | 1 |
| Operation lower temperature | -25 °C |
| Operation upper temperature | 80 °C |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | cUL, EAC certified |
| Remark 2 | Only for bulkhead mounting housings, Surface high construction housings or high construction hoods |
Electrical parameters
| Max. rated current | 1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | III |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
