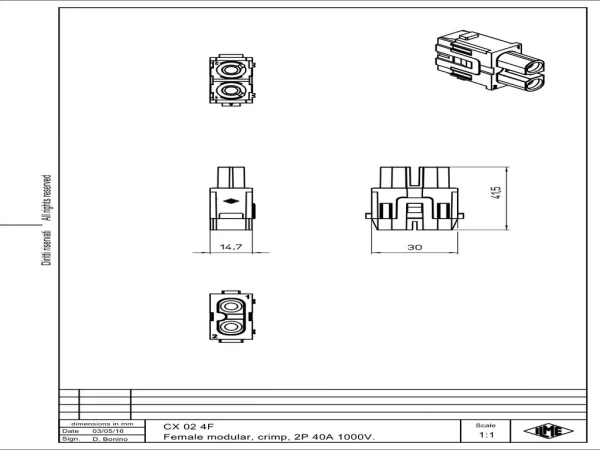

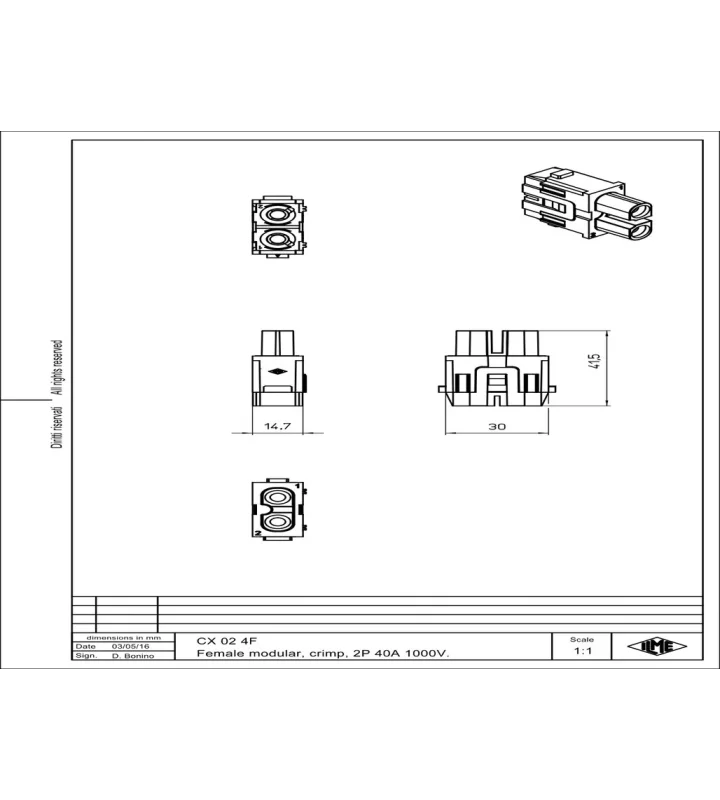

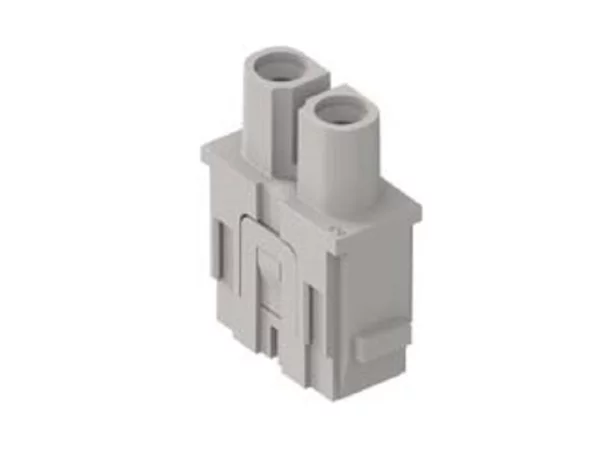

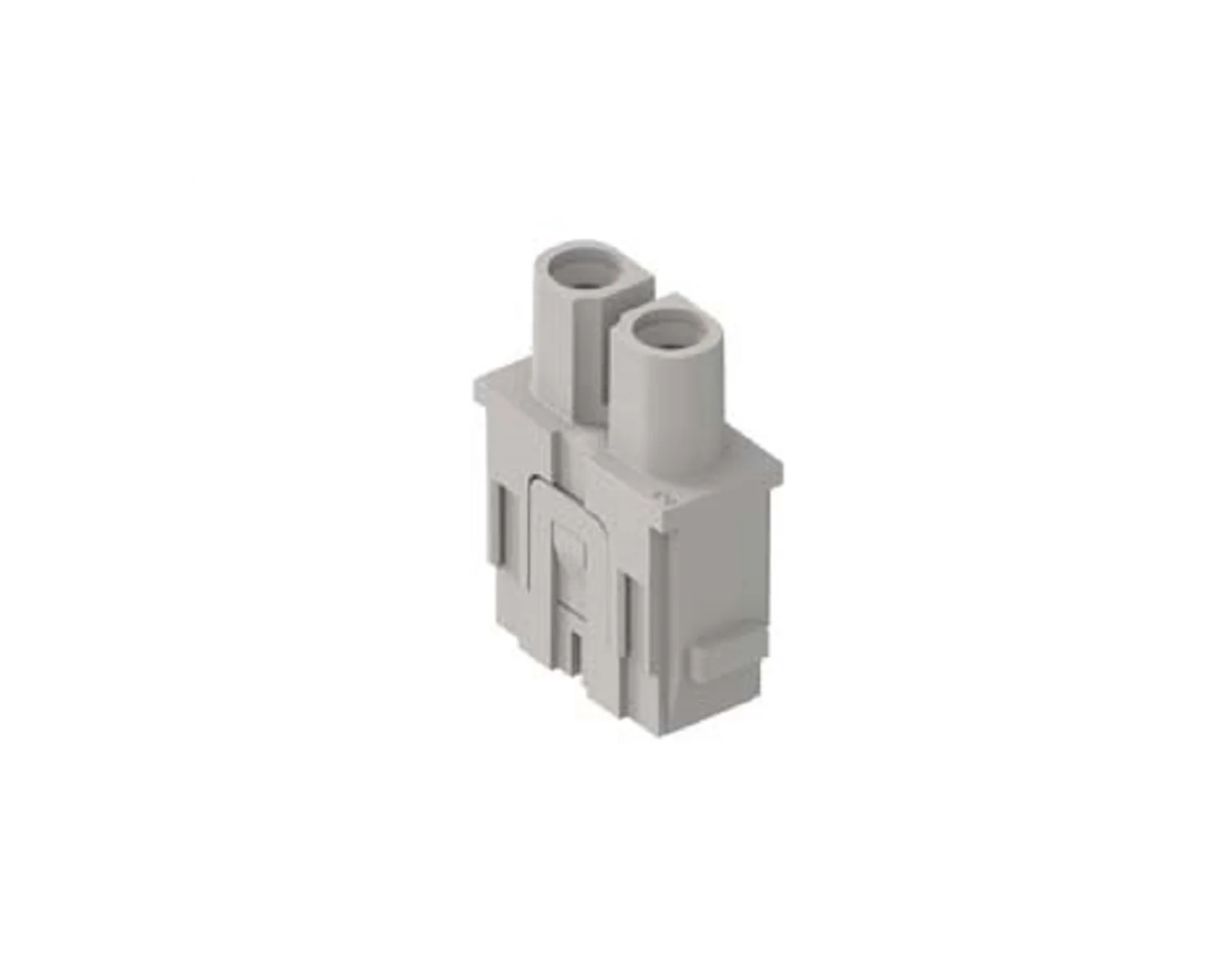

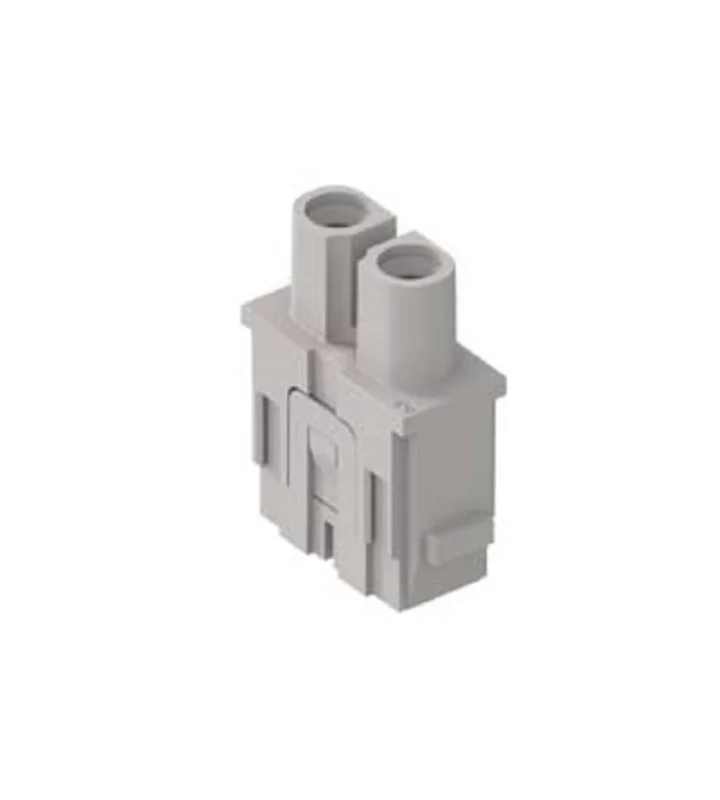

female insert, MIXO, 1MU, 2p, crimp, 40A, 1000V
CX 02 4F
Stel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 2 |
| Connection type | Crimp connection |
| Gender | Female |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 16 |
| AWG-range 2 | 10 |
| Min. Cross section | 1.5 mm² |
| Max. Cross section | 6 mm² |
| Diameter male contact | 4 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | Cable diameter up to 7.5mm contact size up to 10 mm² Can be mated with CX 02 A/B modules |
| Remark 2 | Only for bulkhead mounting housings, high construction housings or high construction hoods |
Electrical parameters
| Max. rated current | 40 A |
|---|---|
| Nominal rated voltage | 1000 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
