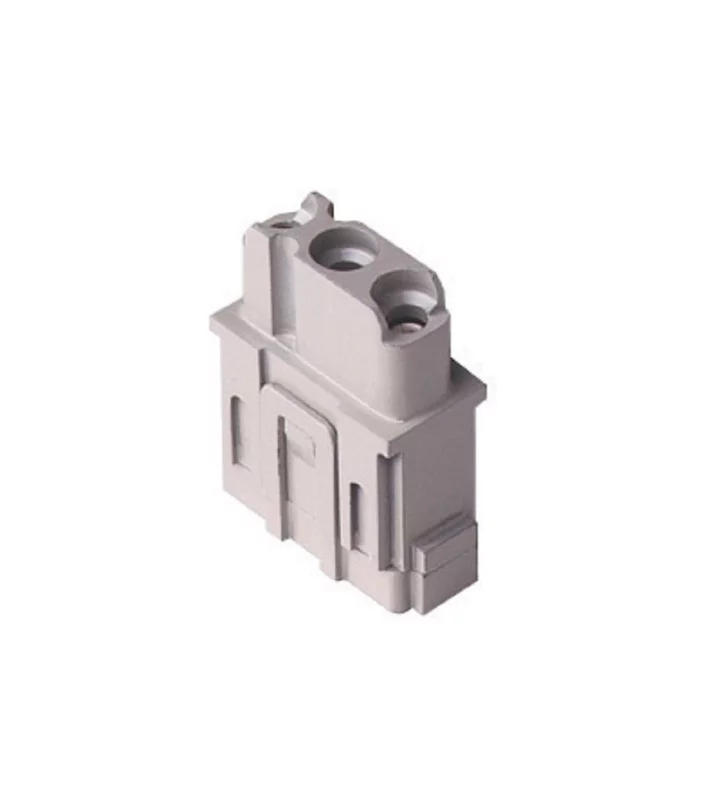

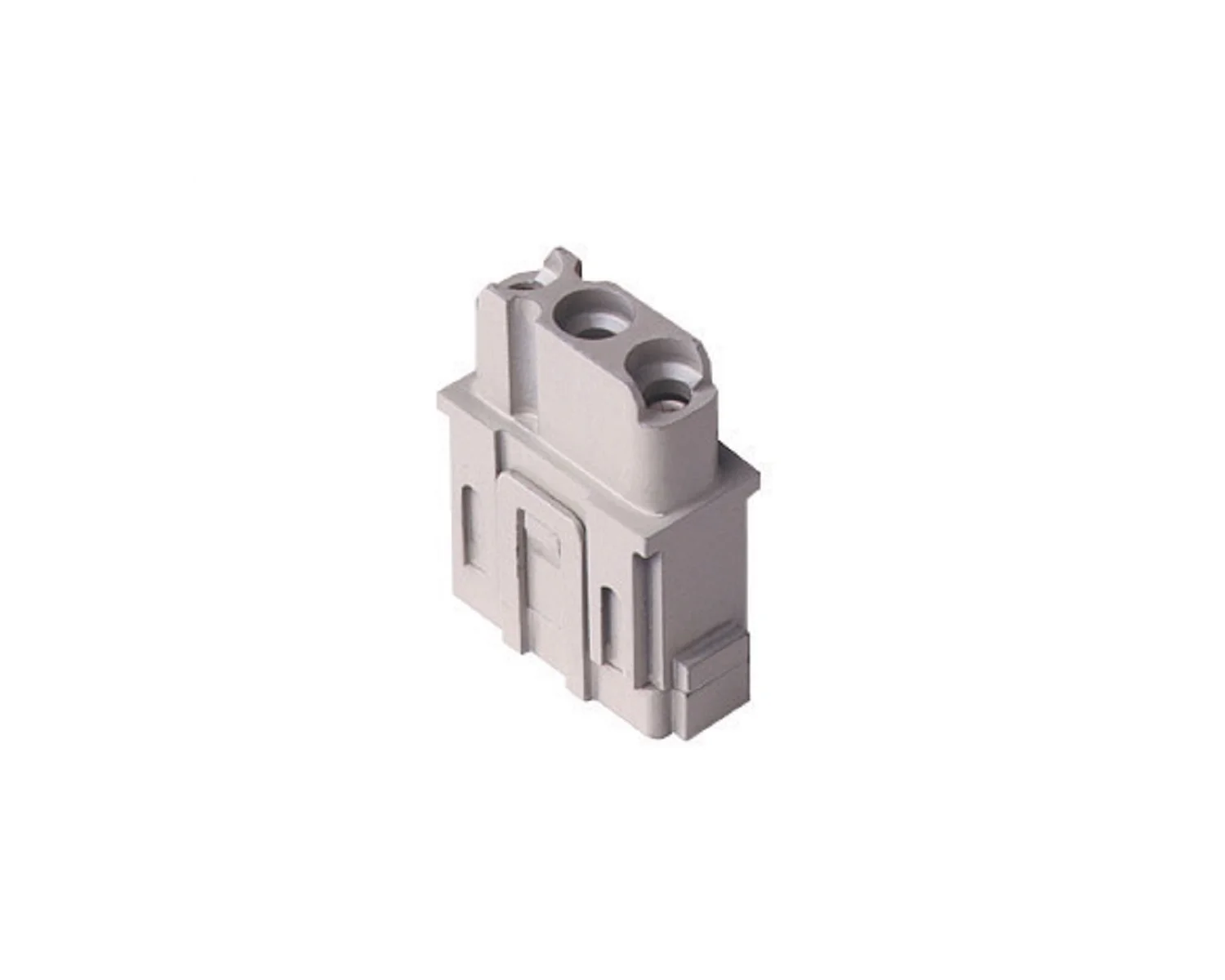

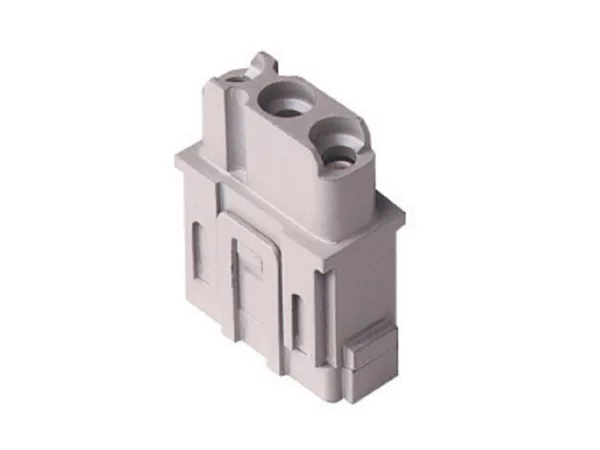

female insert, MIXO, 1MU, 3p, crimp, 40A, 400, 690V

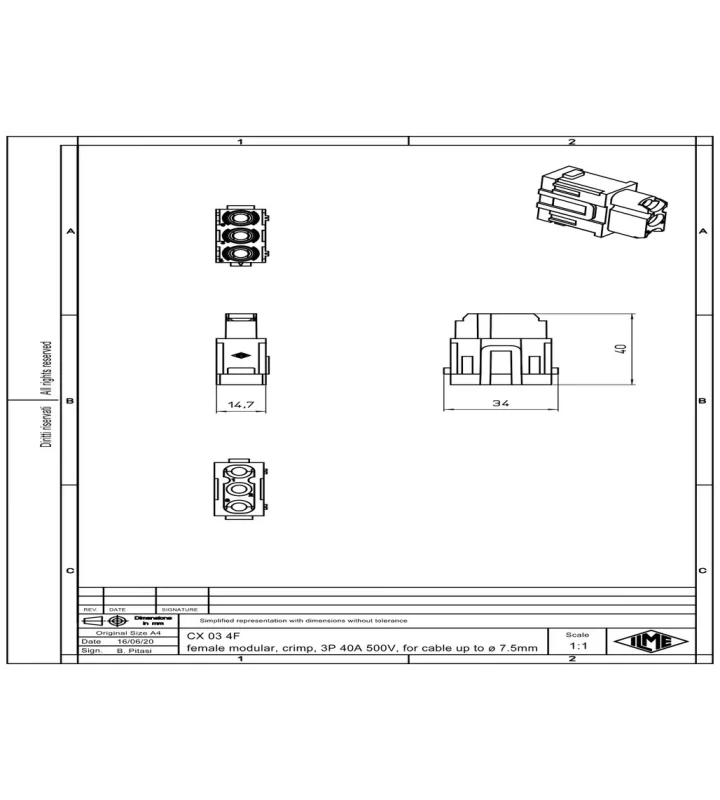

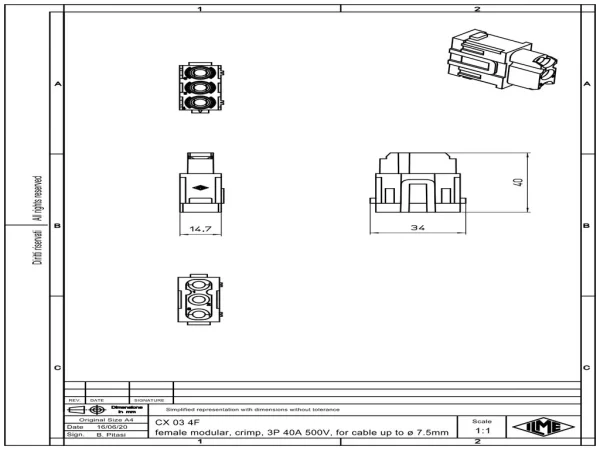

CX 03 4F
Stel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 3 |
| Connection type | Crimp connection |
| Gender | Female |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 16 |
| AWG-range 2 | 10 |
| Min. Cross section | 1.5 mm² |
| Max. Cross section | 6 mm² |
| Diameter male contact | 4 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 40 A |
|---|---|
| Nominal rated voltage | 400/690 V |
| Over voltage category | III |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
