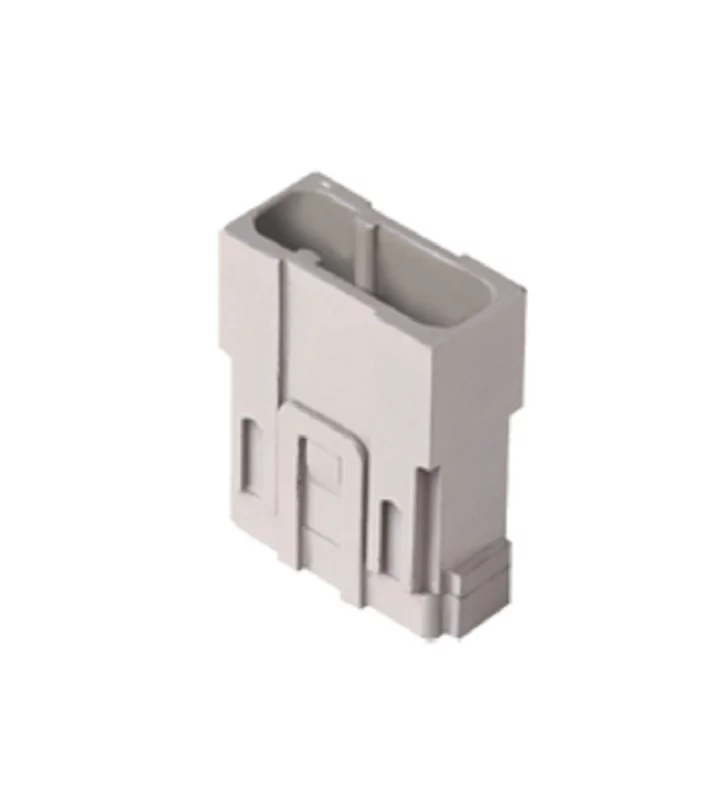

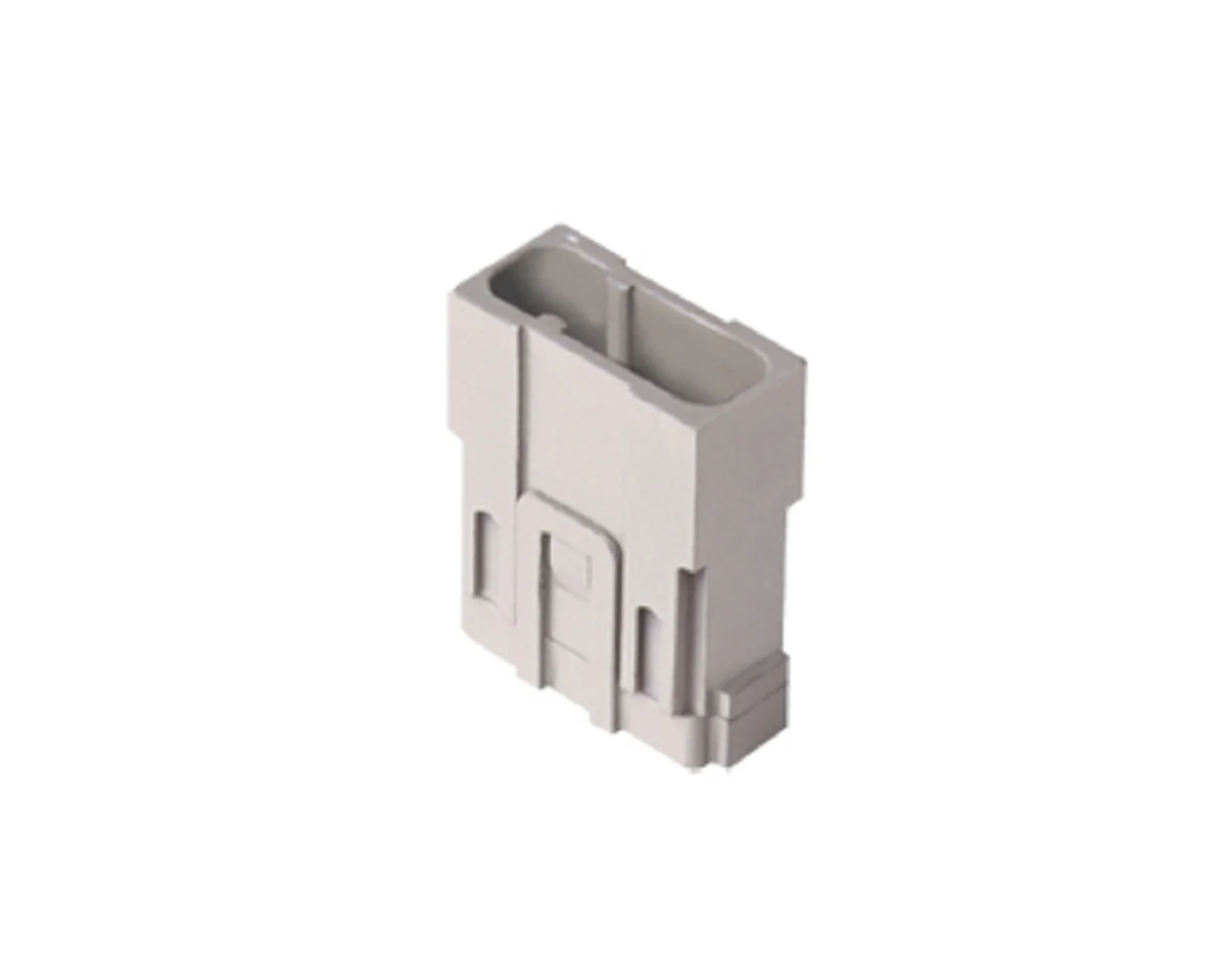

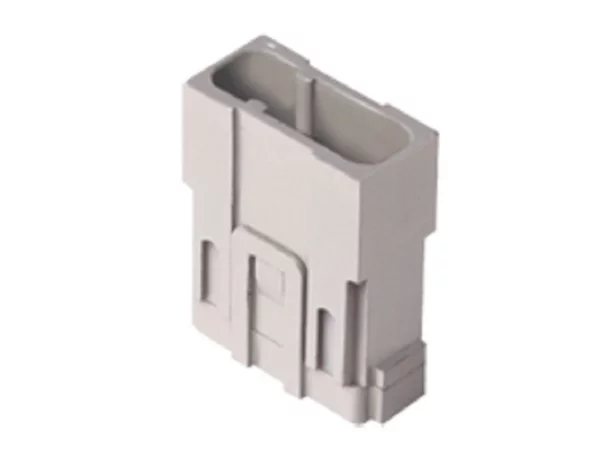

male insert, MIXO, 1MU, 3p, crimp, 40A, 400, 690V

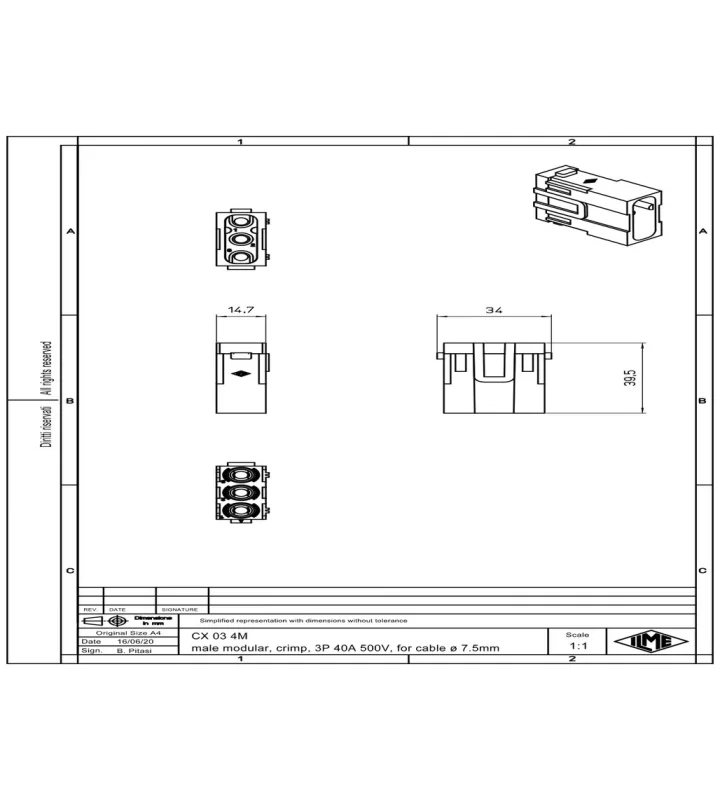

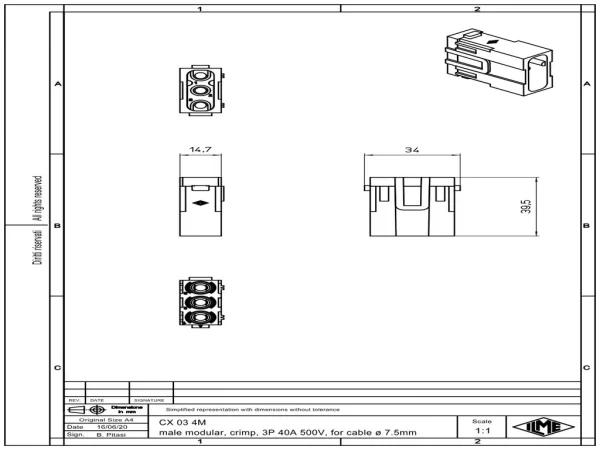

CX 03 4M
Stel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 3 |
| Connection type | Crimp connection |
| Gender | Male |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 16 |
| AWG-range 2 | 10 |
| Min. Cross section | 1.5 mm² |
| Max. Cross section | 6 mm² |
| Diameter male contact | 4 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | contact section up to 10mm² |
| Remark 2 | Only for bulkhead mounting housings, Surface high construction housings or high construction hoods |
Electrical parameters
| Max. rated current | 40 A |
|---|---|
| Nominal rated voltage | 400/690 V |
| Over voltage category | III |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
