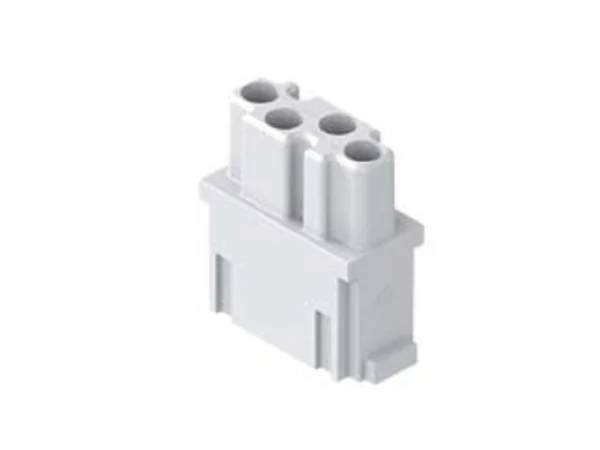

male insert, MIXO, 1MU, 4p, crimp, COAX, for CX50/75 RM
CX 04 RM
Stel je connector verder samen
Voeg de gewenste contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 4 |
| Connection type | Coaxial |
| Gender | Male |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Colour | Grey |
| Extra information | Contact inserts without contacts |
| Remark | We recommend the use of code pins CRM CX |
Electrical parameters
| Max. rated current | 1.5 A |
|---|---|
| Nominal rated voltage | 50 V |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
