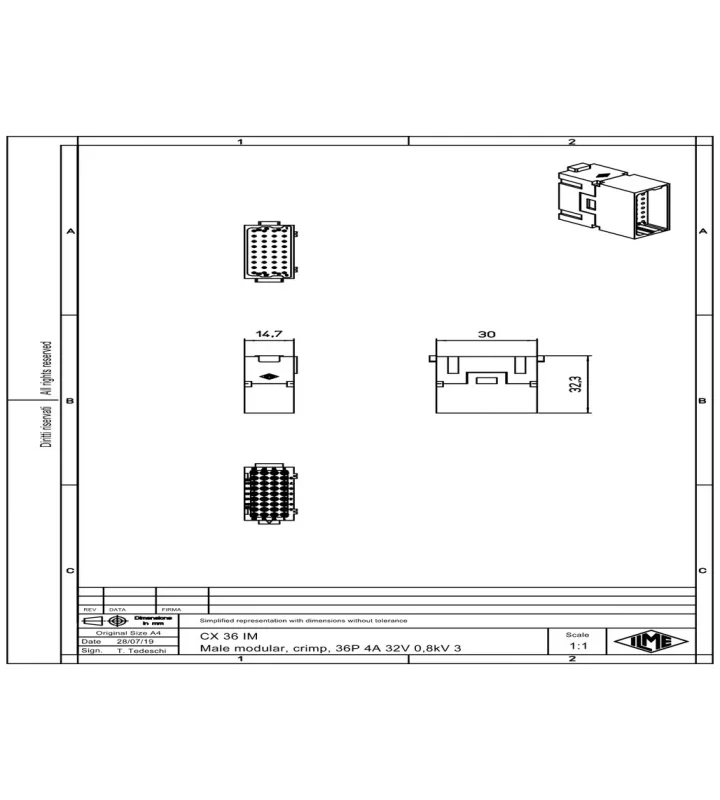

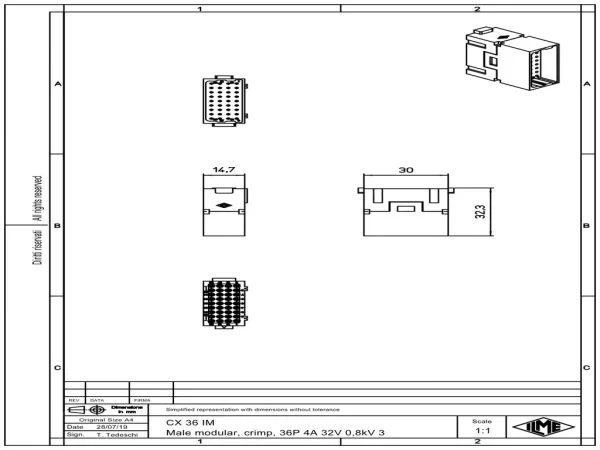

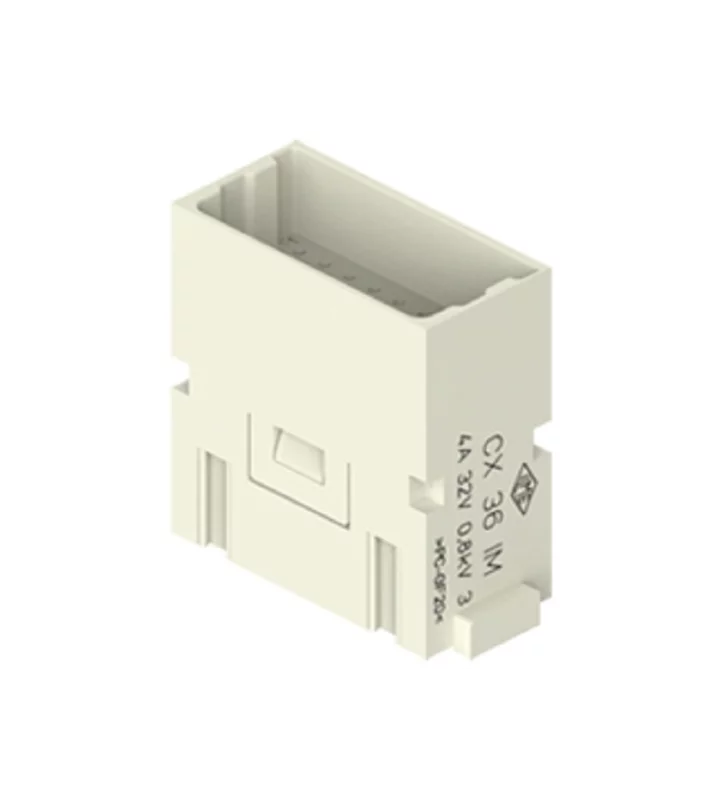

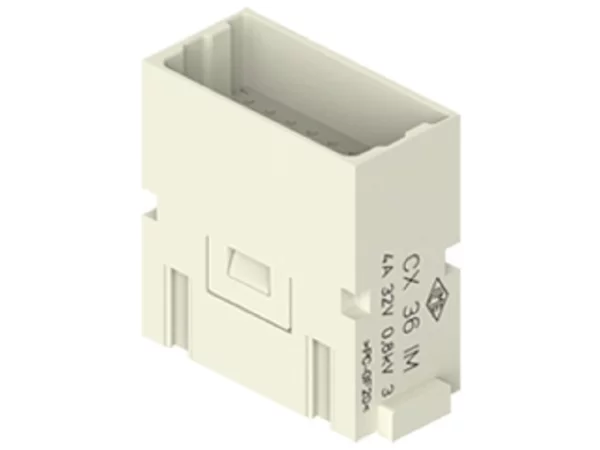

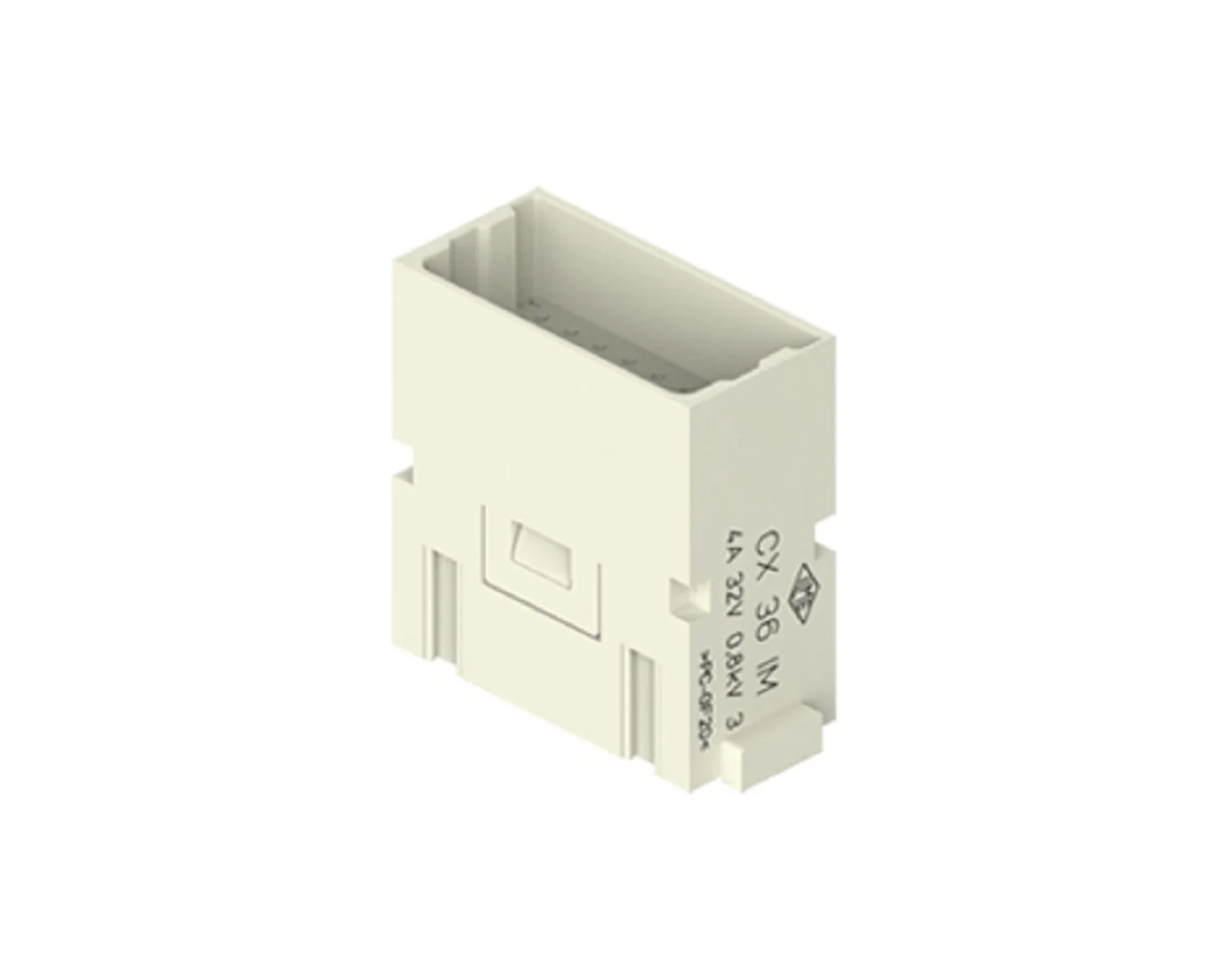

male insert, MIXO, 1MU, 36p, crimp, 4A, 32V
CX 36 IM
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 36 |
| Connection type | Crimp connection |
| Gender | Male |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 28 |
| AWG-range 2 | 18 |
| Min. Cross section | 0.08 mm² |
| Max. Cross section | 0.75 mm² |
| Diameter male contact | 1 mm |
| Colour | Grey |
Electrical parameters
| Max. rated current | 4 A |
|---|---|
| Nominal rated voltage | 32 V |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
